Power Door Lock: Schematic

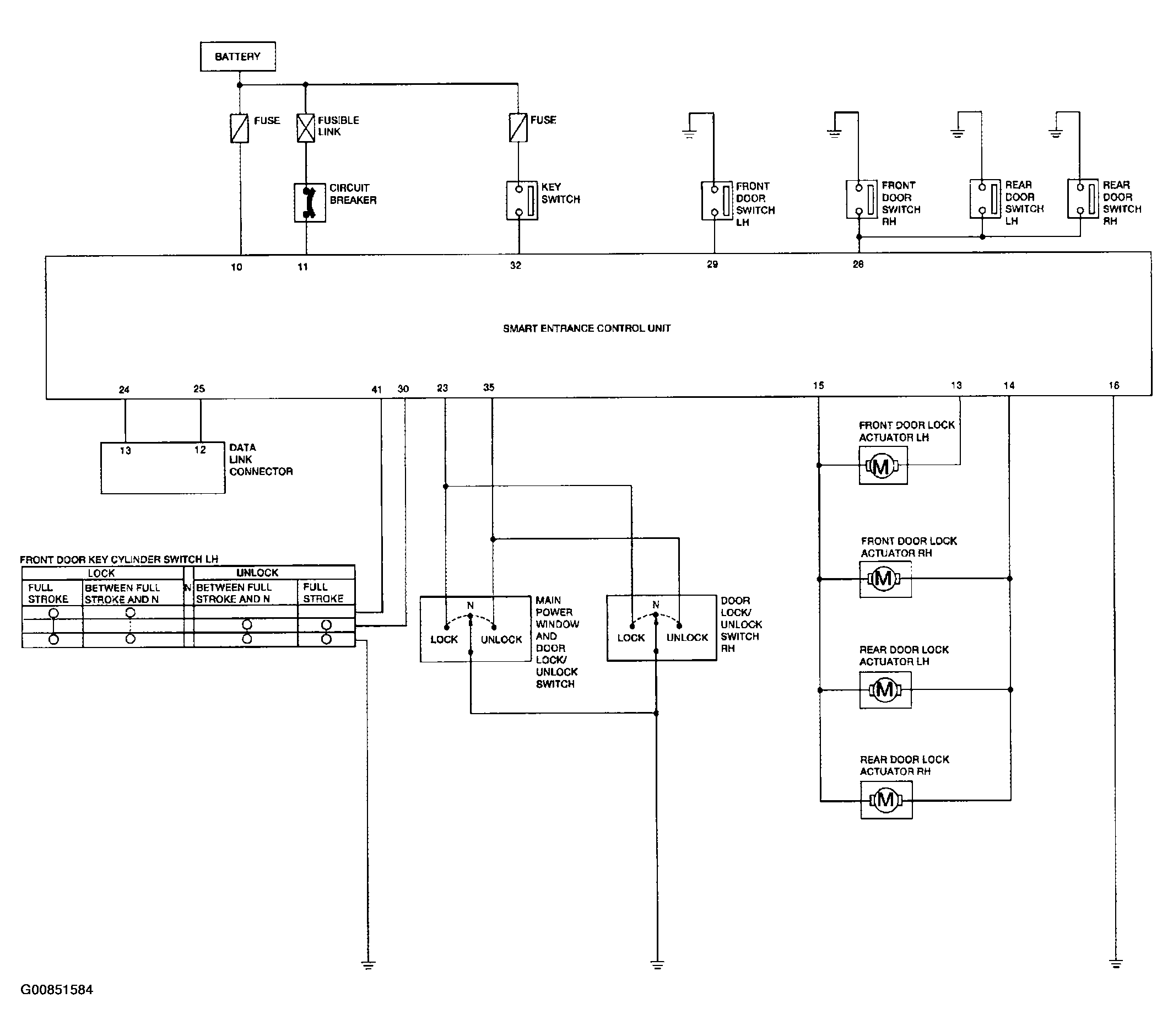

Fig 1: Schematic Diagram

G00851584

Courtesy of NISSAN MOTOR CO., U.S.A.
