Support Bearing

  1. Remove dust shield.

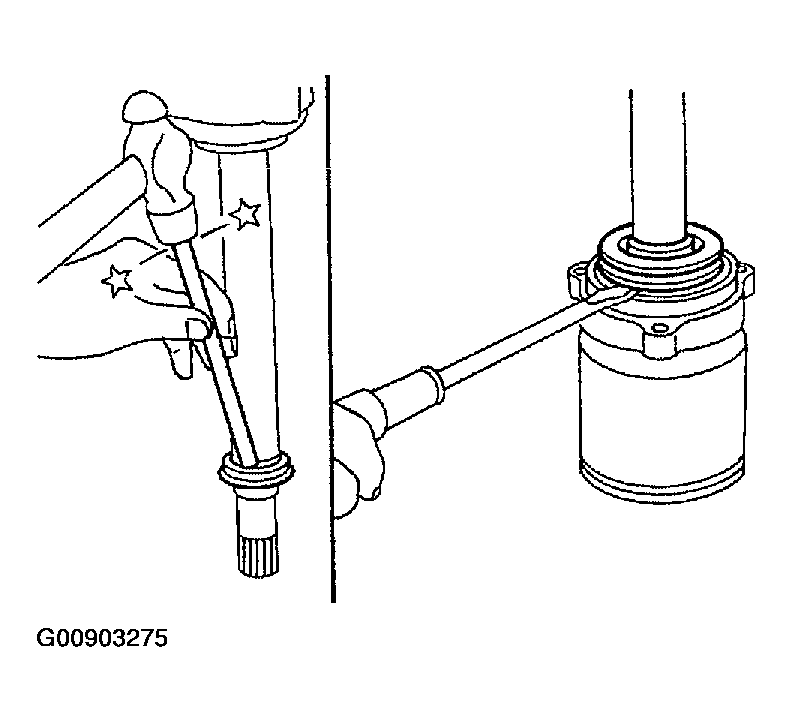

    Fig 1: Removing Dust Shield
    G00903275Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove snap ring.

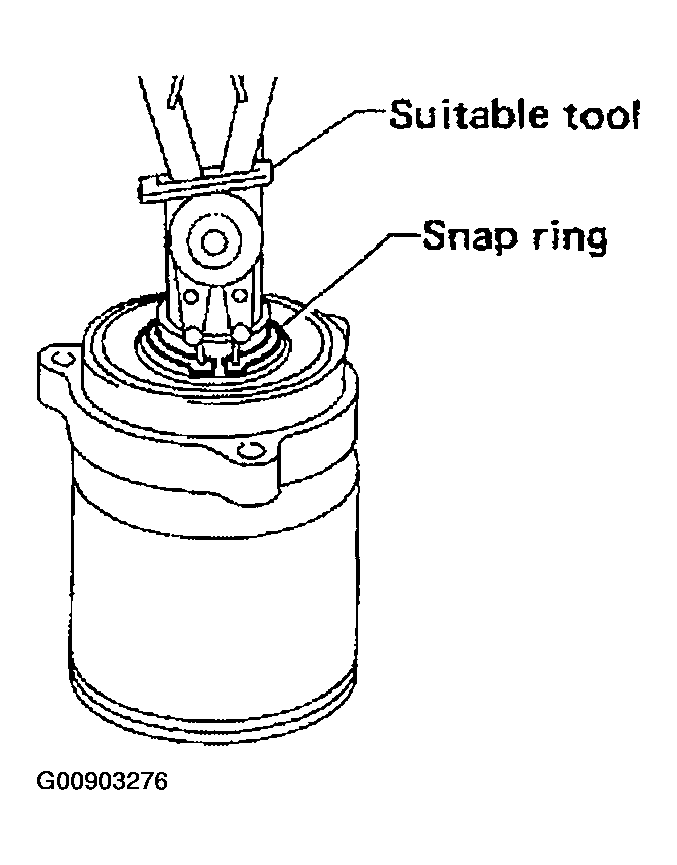

    Fig 2: Removing Snap Ring
    G00903276Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Press support bearing assembly off drive shaft.

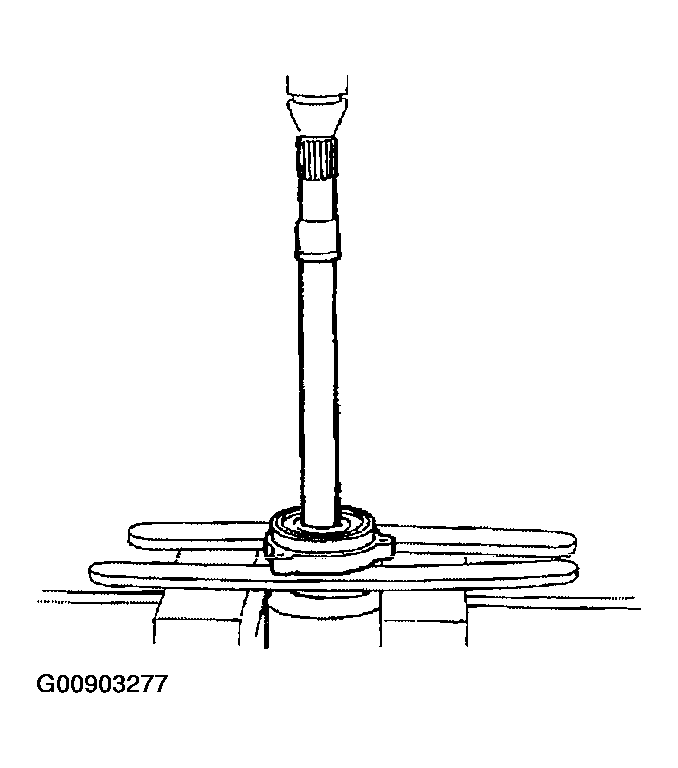

    Fig 3: Pressing Support Bearing Assembly Off Drive Shaft
    G00903277Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove snap ring.
  5. Remove dust shield.
  6. Separate support bearing from retainer.

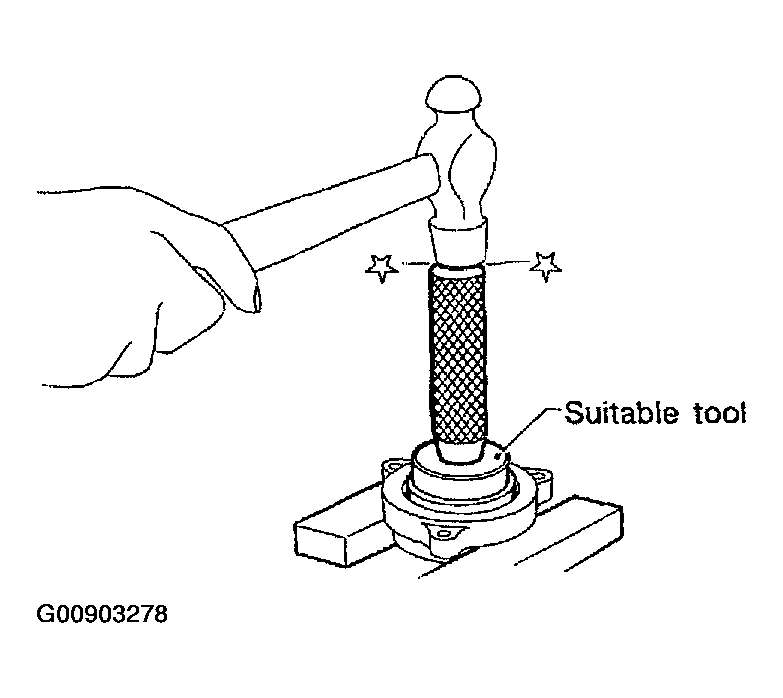

    Fig 4: Identifying Separate Support Bearing From Retainer
    G00903278Courtesy of NISSAN MOTOR CO., U.S.A.
