Fuse Block-Junction Box

NOTE: For fuse block-junction block fuse and relay arrangement, see Fig 1.

Fuse block-junction box is located behind the lower left side dash, near kick panel.

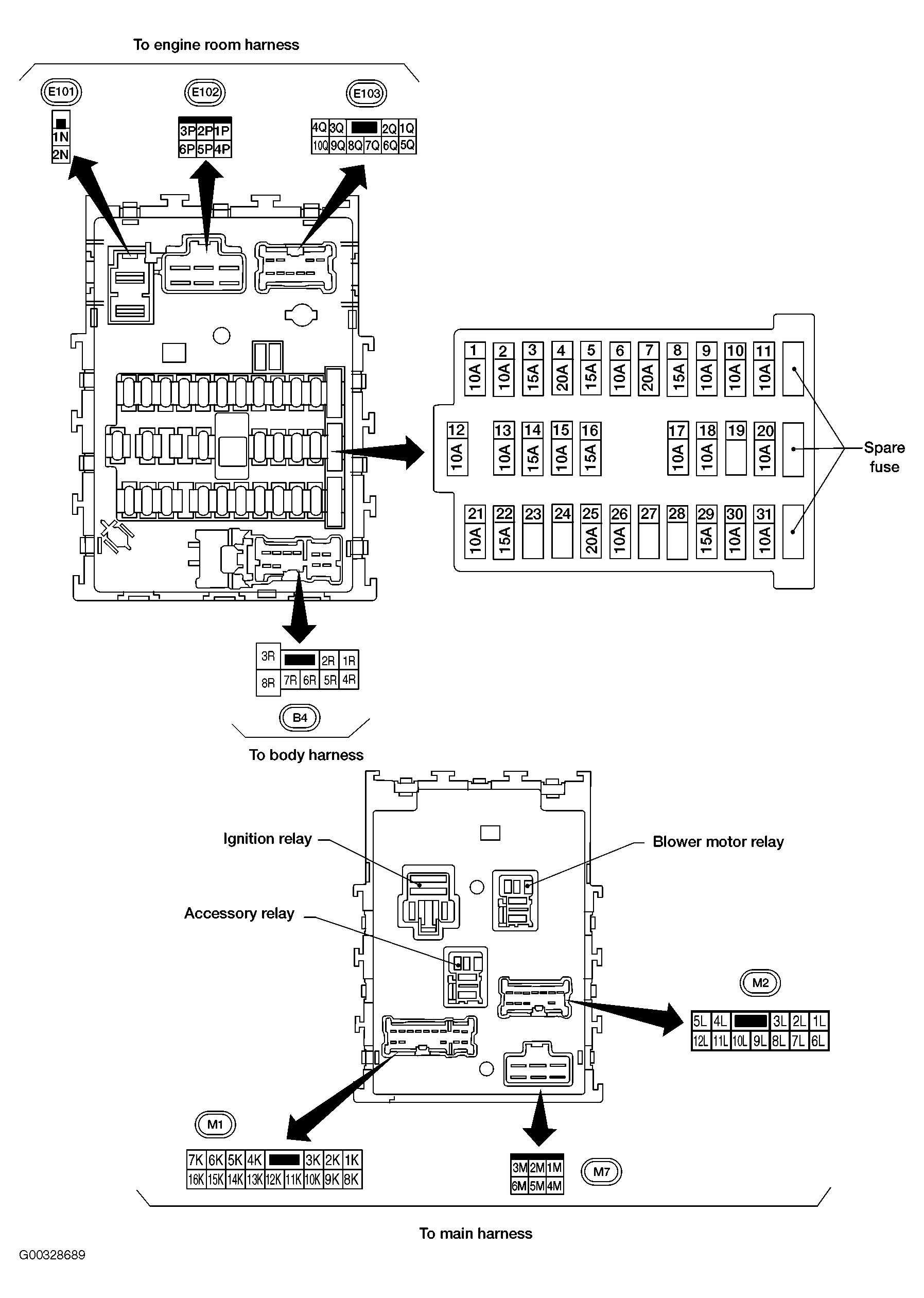

Fig 1: Identifying Fuse-Block Fuse & Relay Arrangement

Courtesy of NISSAN MOTOR CO., U.S.A.
