CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

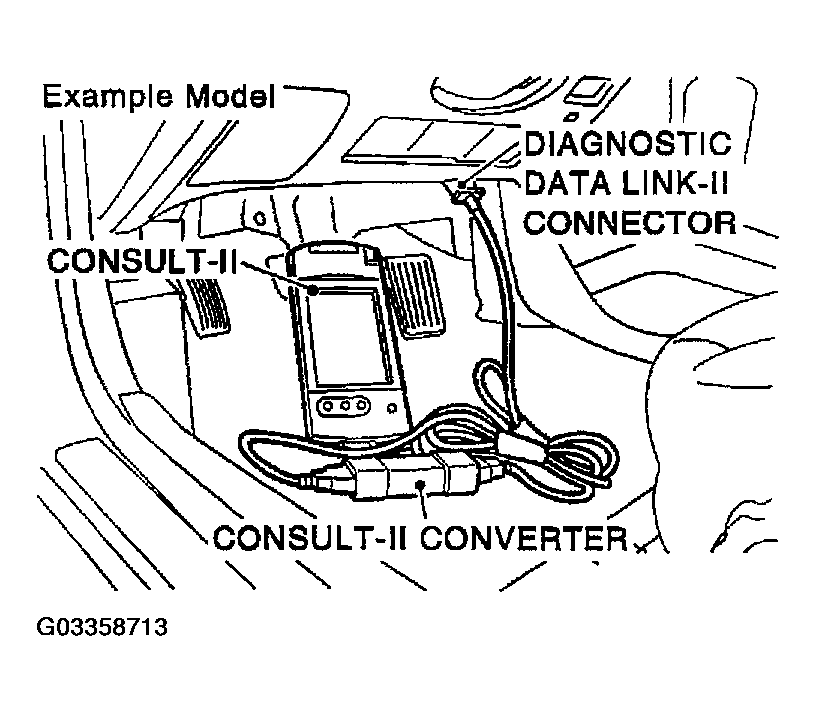

Fig 1: Connecting CONSULT-II & CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch OFF.
Touch "START (NISSAN BASED VHCL)" or "System Shortcut" (eg: Engine) on the screen.

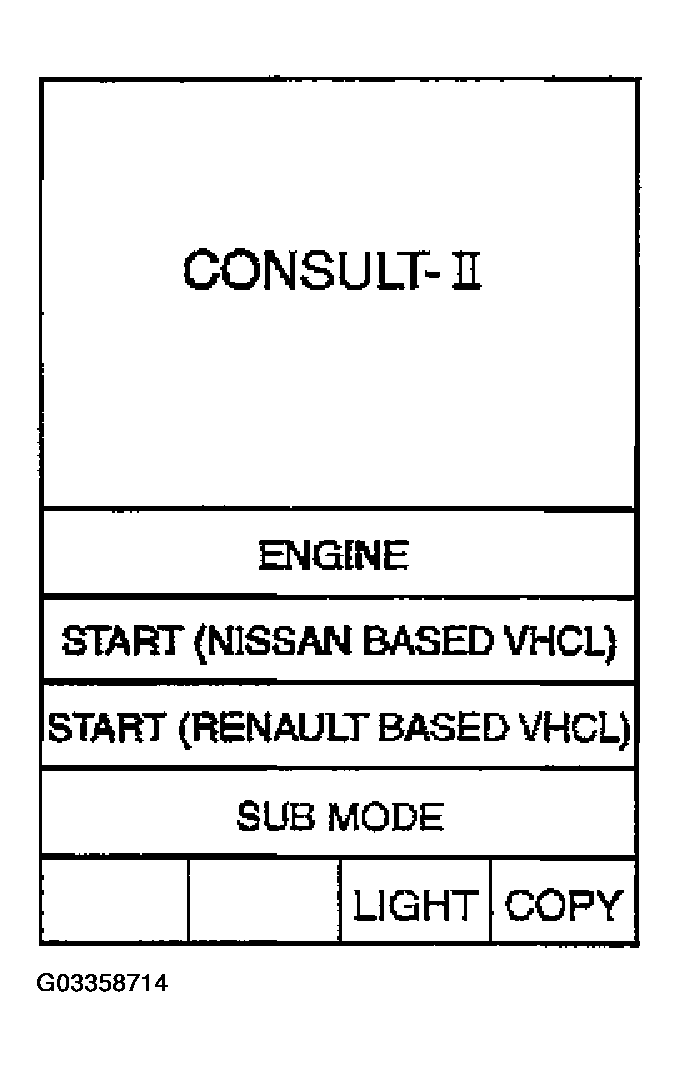

Fig 2: Displaying "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
