How To Use This Article: Components

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.
THE LARGE ILLUSTRATIONS are exploded views (See Fig 1 ) and contain tightening torques, lubrication points, and other information necessary to perform repairs.

The illustrations should be used in reference to service matters only.

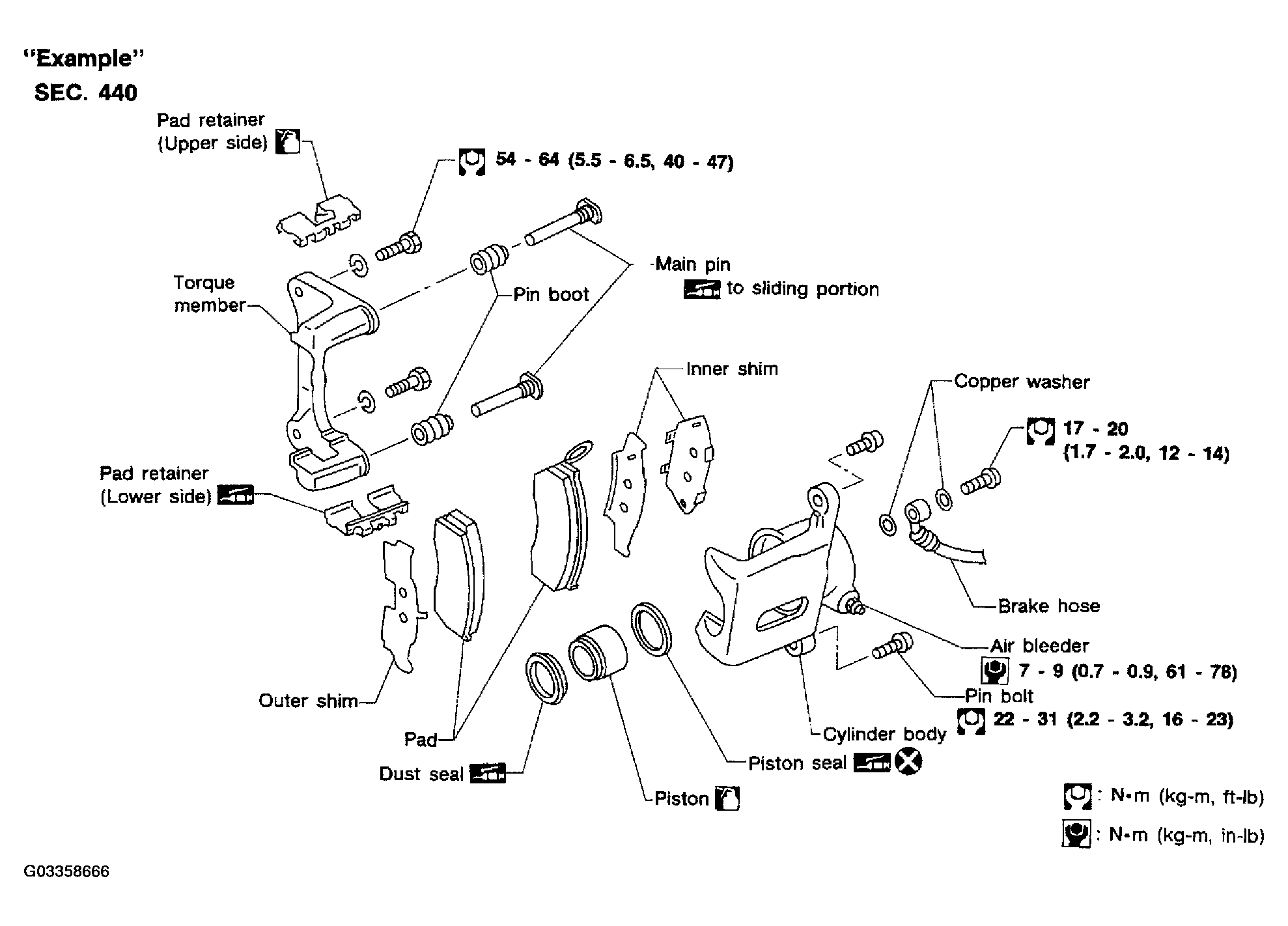

Fig 1: Exploded View Of Brake Caliper With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

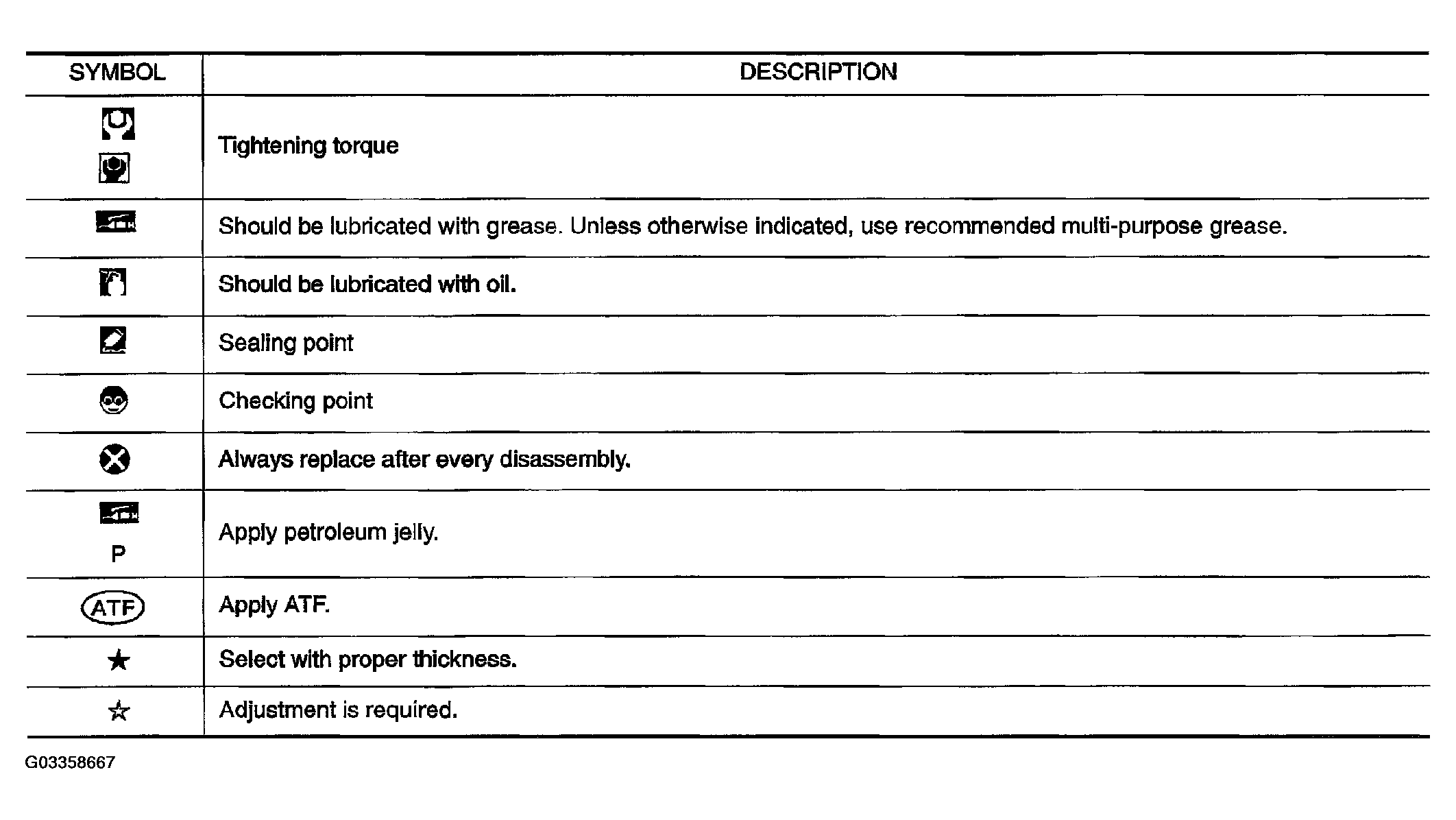

Fig 2: Identifying Symbols

Courtesy of NISSAN MOTOR CO., U.S.A.
