Detention Switch Circuit Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    Check that when the CVT selector lever is in P position, "DETENT SW" on the DATA MONITOR becomes OFF.

    MONITOR ITEM

    Monitor item [OPERATION or UNIT] Contents
    DETENT SW "ON/OFF" The selector lever position "P position (OFF)/other than P position (ON)" judged from the detente switch signal is displayed.

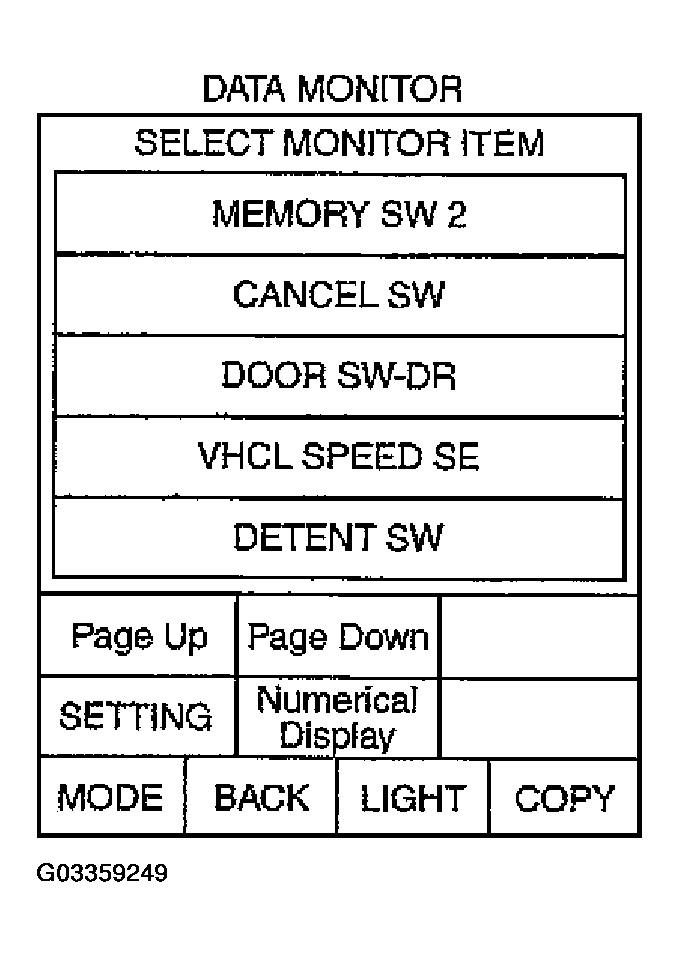

    Fig 1: Displaying "DETENT SW" On DATA MONITOR
    G03359249Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    1. OK : Detention switch circuit is OK.
    2. NG : GO TO 2.
  2. CHECK DETENTION SWITCH HARNESS
    1. Turn ignition switch OFF.
    2. Disconnect CVT device [detention switch (key)] connector and "key switch and key lock solenoid" connector.
    3. Check continuity between CVT device [detention switch (key)] connector M57 terminal 5 (B/R) and key switch and key lock solenoid connector M28 terminal 4 (B/R).
      1. 5 (B/R) - 4 (B/R) : Continuity should exist.
    4. Check continuity between CVT device [detention switch (key)] connector M57 terminal 5 (B/R) and ground.
      1. 5 (B/R) - Ground : Continuity should not exist.
      Fig 2: Checking Continuity Between CVT Device Connector M57 Terminal 5 And Key Switch And Key Lock Solenoid Connector M28 terminal 4, And Between Connector M57 Terminal 5 And Ground
      G03359250Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Repair or replace harness between CVT device [detention switch (key)] and key switch and key lock solenoid.
  3. CHECK DETENTION SWITCH

    Check continuity between detection switch as follows.

    CONDITION

    Connector Terminals Condition Continuity
    (+) (-)
    M57 5 6 P-position Continuity should not exist.
    Other than P-position Continuity should exist.

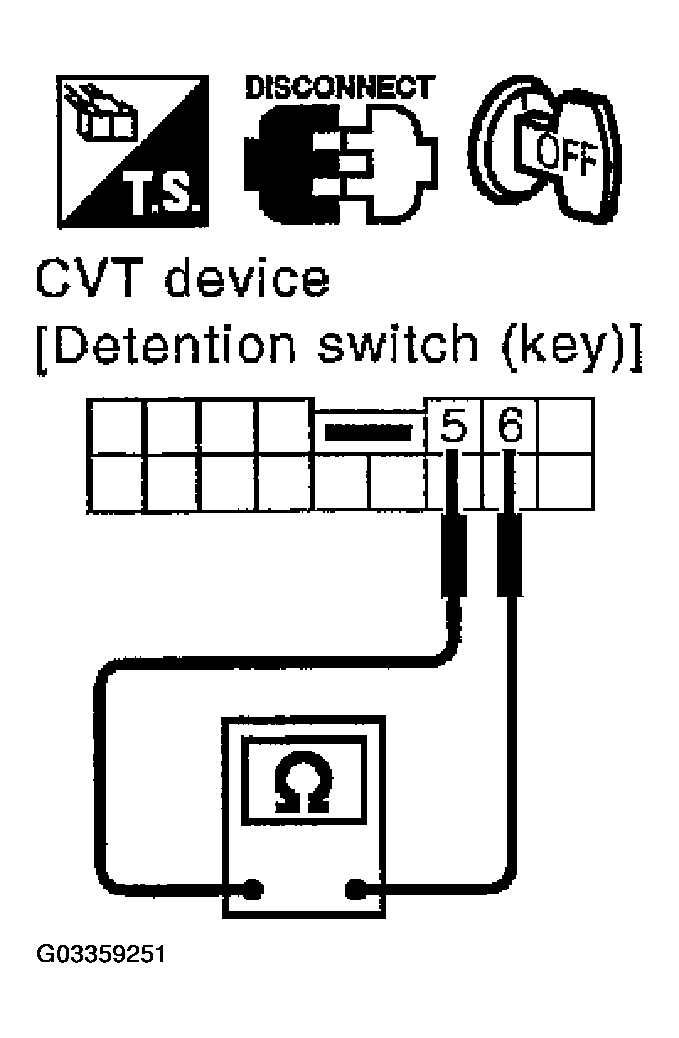

    Fig 3: Checking Continuity Between Detection Switch Terminal 5 And 6
    G03359251Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 4.
    2. NG : Replace CVT device [detention switch (key)].
  4. CHECK DETENTION SWITCH SIGNAL CIRCUIT HARNESS CONTINUITY
    1. Disconnect driver seat control unit connector.
    2. Check continuity between driver seat control unit connector B303 terminal 21 (R/L) and CVT device [detention switch (key)] connector M57 terminal 6 (L).
      1. 21 (R/L) - 6 (L) : Continuity should exist.
    3. Check continuity between driver seat control unit connector B303 terminal 21 (R/L) and ground.
      1. 21 (R/L) - Ground : Continuity should not exist.

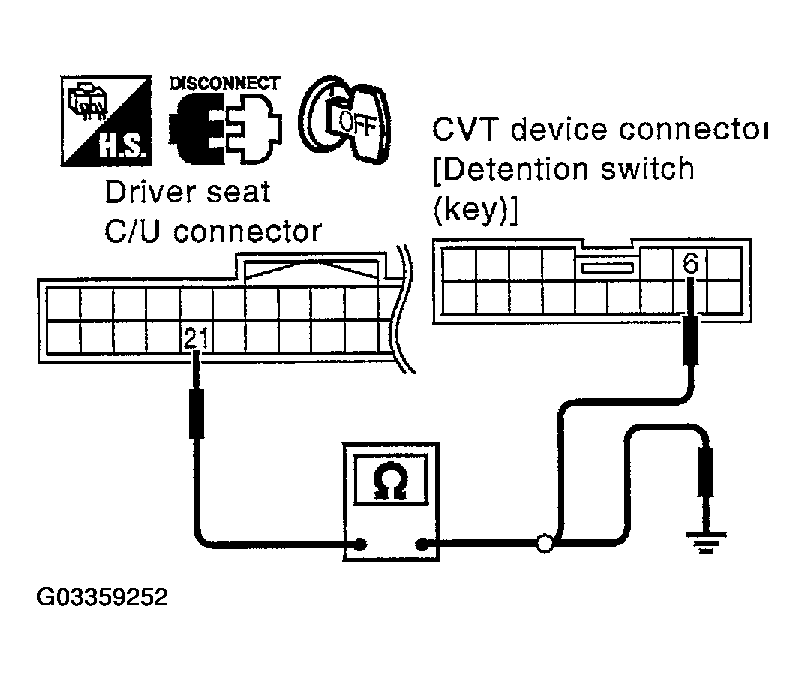

      Fig 4: Checking Continuity Between Driver Seat Control Unit Connector B303 Terminal 21 And CVT Device Connector M57 Terminal 6, And Between Connector B303 Terminal 21 And Ground
      G03359252Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Replace driver seat control unit.
    2. NG : Repair or replace harness between automatic drive positioner control unit and CVT device [detention switch (key)].
