Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR FUNCTION
Check the following items.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG
1. OK : GO TO 2.
2. NG : Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR INSPECTION

With CONSULT-II

Check that "ON" is displayed on "MIR/SE RH R-L, MIR/SE RH U-D" in the DATA MONITOR.

MONITOR ITEM

Monitor item [OPERATION or UNIT]		Contents
MIR/SEN RH R-L	"V"	Voltage output from RH door mirror sensor (LH/RH) is displayed.
MIR/SEN RH U-D	"V"	Voltage output from RH door mirror sensor (UP/DOWN) is displayed.

Without CONSULT-II

Connect automatic drive positioner control unit and door mirror (passenger side) connector.
Turn ignition switch ACC.

Check voltage between door mirror (passenger side) connector and ground.

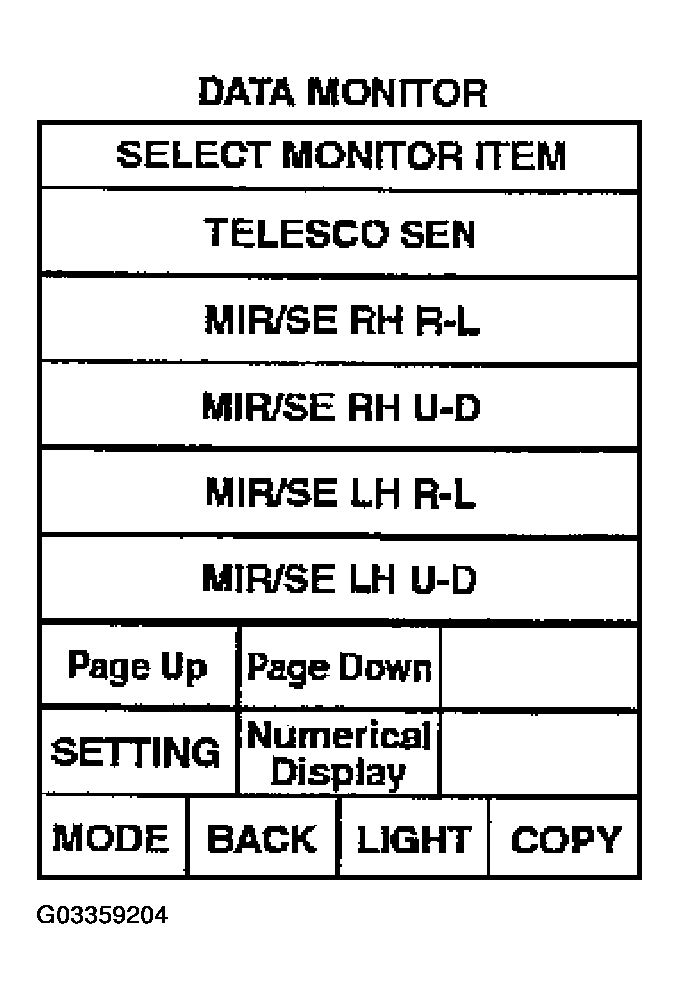

Fig 1: Displaying "MIR/SE RH R-L, MIR/SE RH U-D" in DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINALS (WIRE COLOR)

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx)
Connector	(+)	(-)	Condition	Voltage (V) (Approx)
D32	4 (L)	Ground	When motor is LEFT or RIGHT operation	Changes between 3.4 (close to left edge) - 0.6 (close to right edge)
D32	10 (R/B)	Ground	When motor is UP or DOWN operation	Changes between 3.4 (close to peak) - 0.6 (close to valley)

OK or NG

OK : Mirror sensor RH is OK.
NG : GO TO 3.

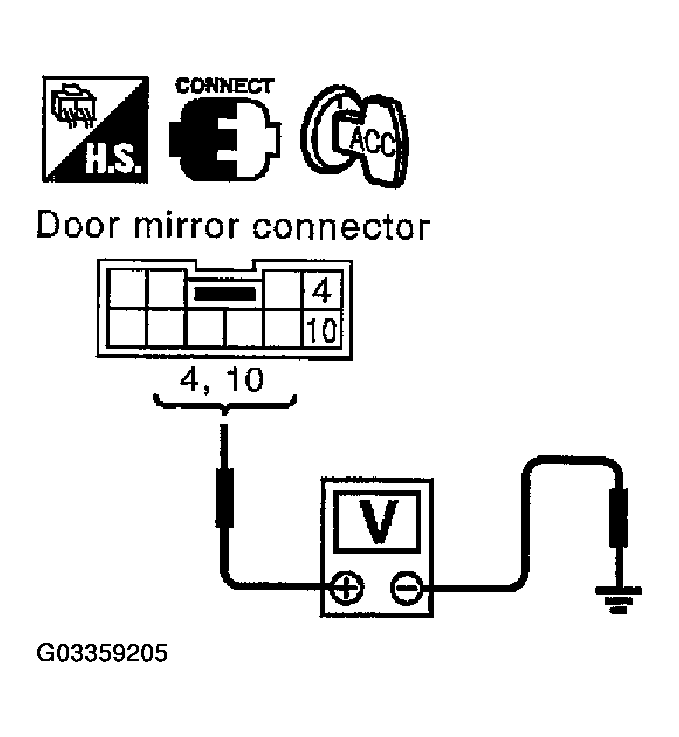

Fig 2: Checking Voltage Between Door Mirror (Passenger Side) Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror (passenger side) connector.
2. Check continuity between automatic drive positioner control unit connector M20 terminal 33 (W/L), 41 (Y) and door mirror (passenger side) connector D32 terminal 3 (W/L), 9 (Y).
  1. 33 (W/L) - 3 : Continuity should exist.
  2. 41 (Y) - 9 : Con should exist.
3. Check continuity between automatic drive positioner control unit connector M20 terminal 33 (W/L), 41 (Y) and ground.
  1. 33 (W/L) - : Continuity should not exist.
  2. 41 (Y) - : Continuity should not exist.
OK or NG
1. OK : GO TO 4.
2. NG : Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).

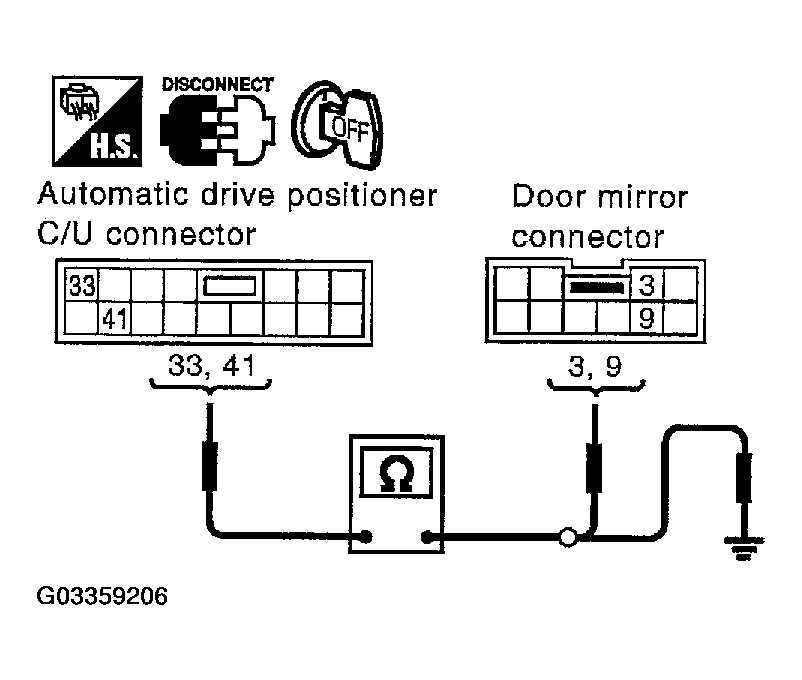

Fig 3: Checking Continuity Between Connector M20 Terminal 33, 41 And Door Mirror (Passenger Side) Connector D32 Terminal 3, 9, And Between M20 Terminal 33, 41 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit connector and door mirror (passenger side) connector.
2. Check continuity between automatic drive positioner control unit connector M19 terminal 5 (R/B), 21 (L) and door mirror (passenger side) connector D32 terminal 4 (L), 10 (R/B).
  1. 5 (R/B) - 10 (R/B): con should exist.
  2. 21 (L) - 4 (L): Con should exist.
3. Check continuity between automatic drive positioner control unit connector M19 terminal 5 (R/B), 21 (L) and ground.
  1. 5 (R/B) - : Continuity should not exist.
  2. 21 (L) - : Continuity should not exist.
OK or NG
1. OK : Replace door mirror (passenger side).
2. NG : Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).

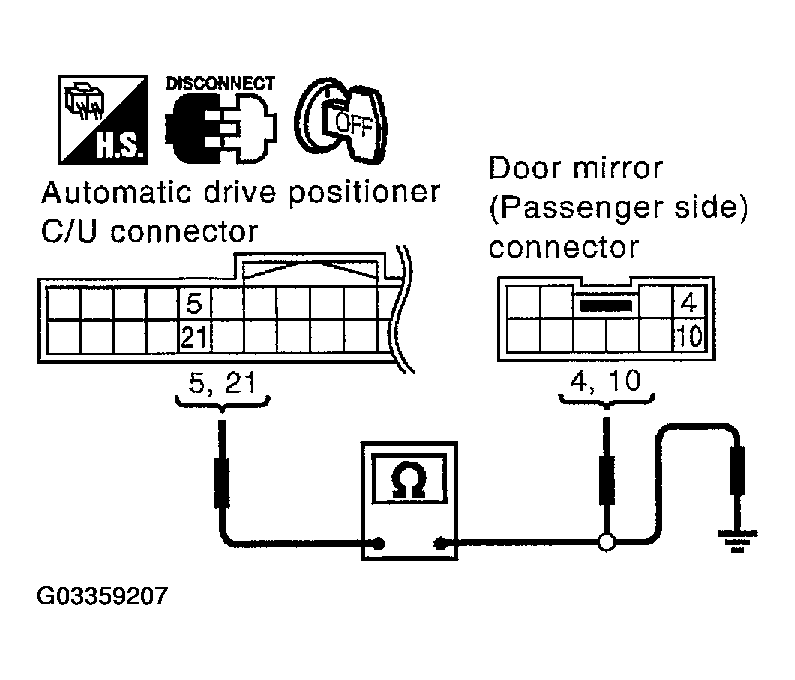

Fig 4: Checking Continuity Between Connector M19 Terminal 5, 21 And Door Mirror (Passenger Side) Connector D32 Terminal 4, 10, And Between M19 Terminal 5, 21 And Door Mirror
