Memory Storing And Key Fob Interlock Storing

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Store the 2 driving positions and shifts to the stored driving position with the memory switch.
Key fob interlock function is set simultaneously with setting driving position memory. It can set driving position to memory position.

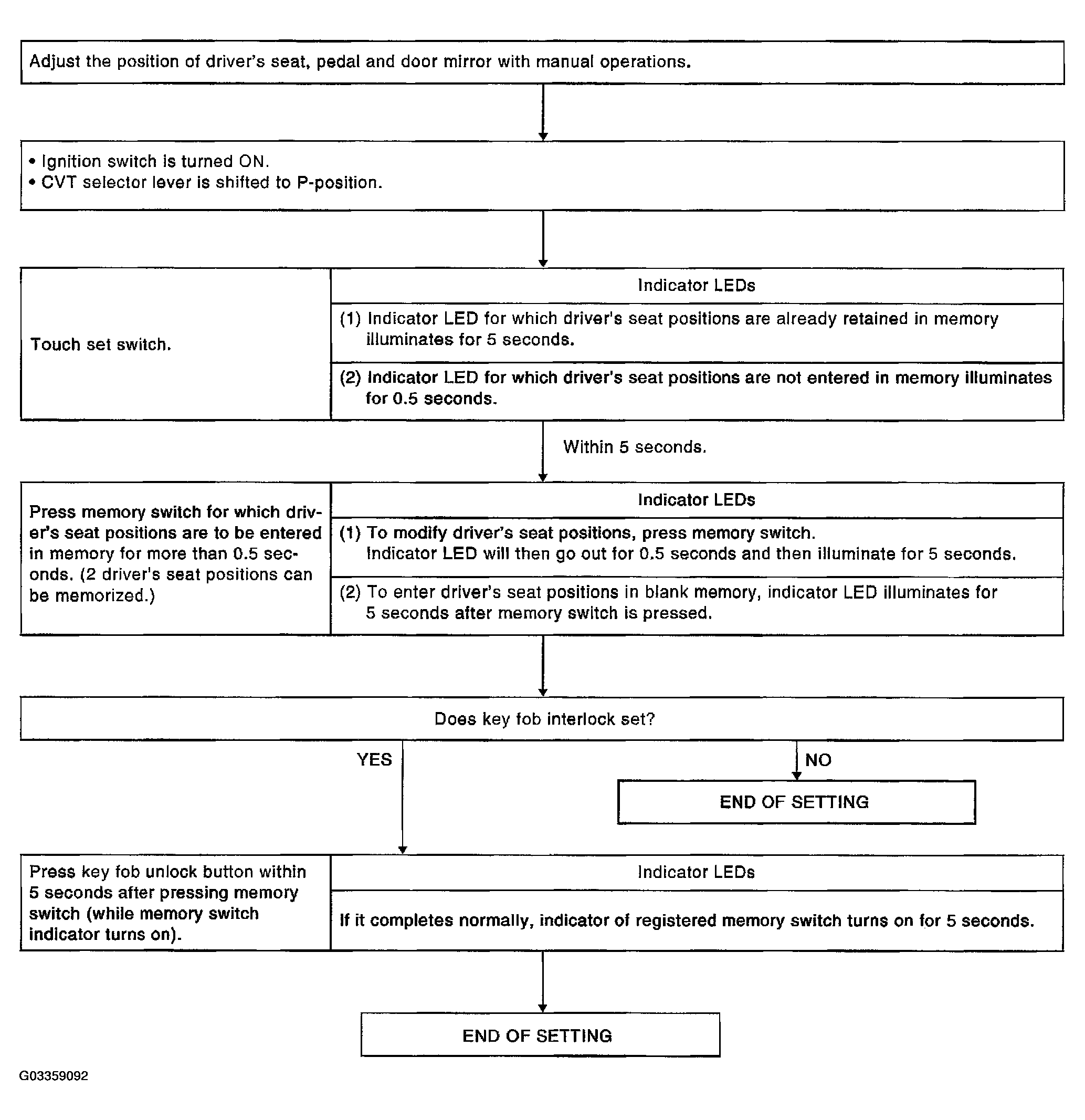

Fig 1: Memory Storing And Key Fob Interlock Storing Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If another key fob inter lock function setting is performed by same key, newly registered setting is valid.
If new memory string is performed to memory switch that already set key fob interlock function, key fob interlock function setting is reset.
If key fob does not set previously, key fob interlock function cannot set.
