Terminals and Reference Values for Automatic Driver Positioner Control Unit
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

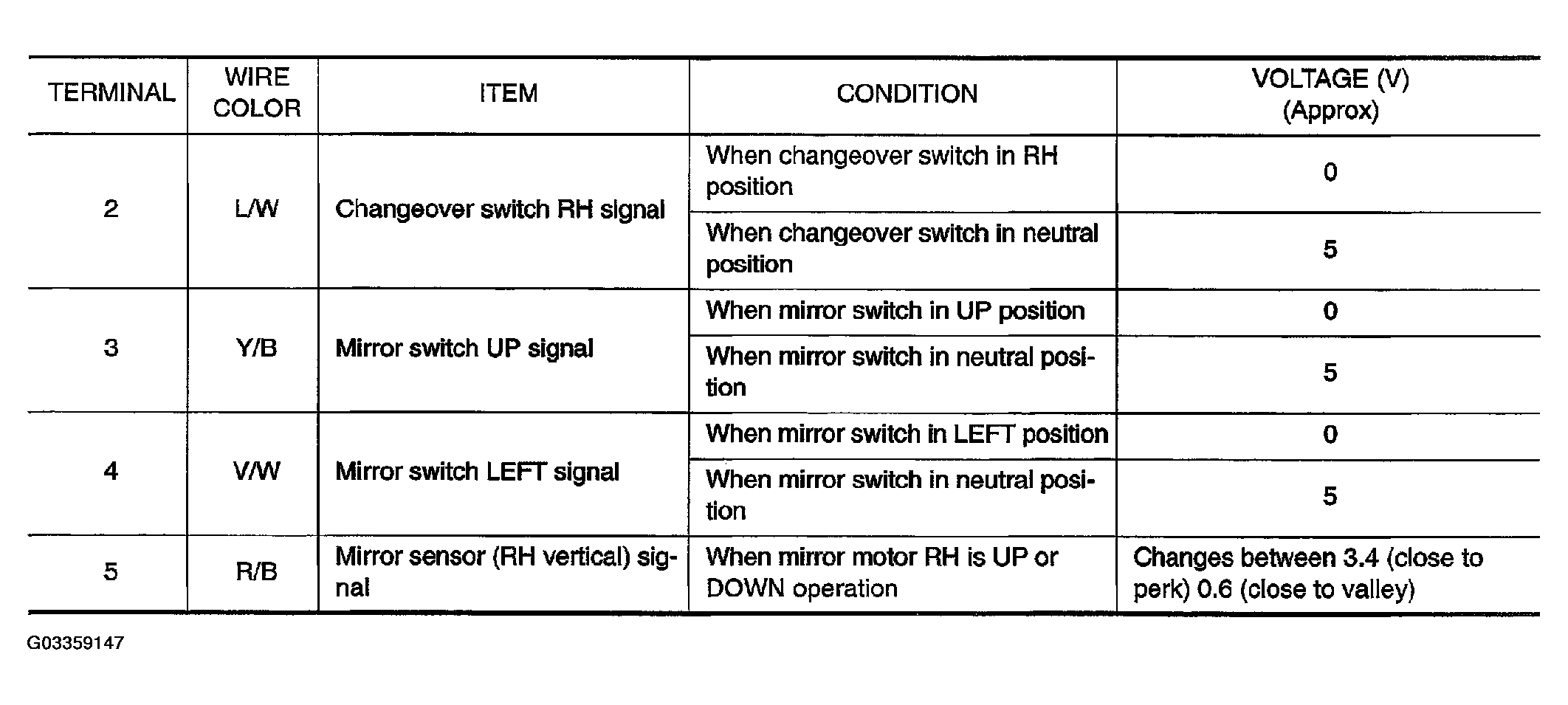

Fig 1: Identifying Terminals And Reference Values For Automatic Driver Positioner Control Unit (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

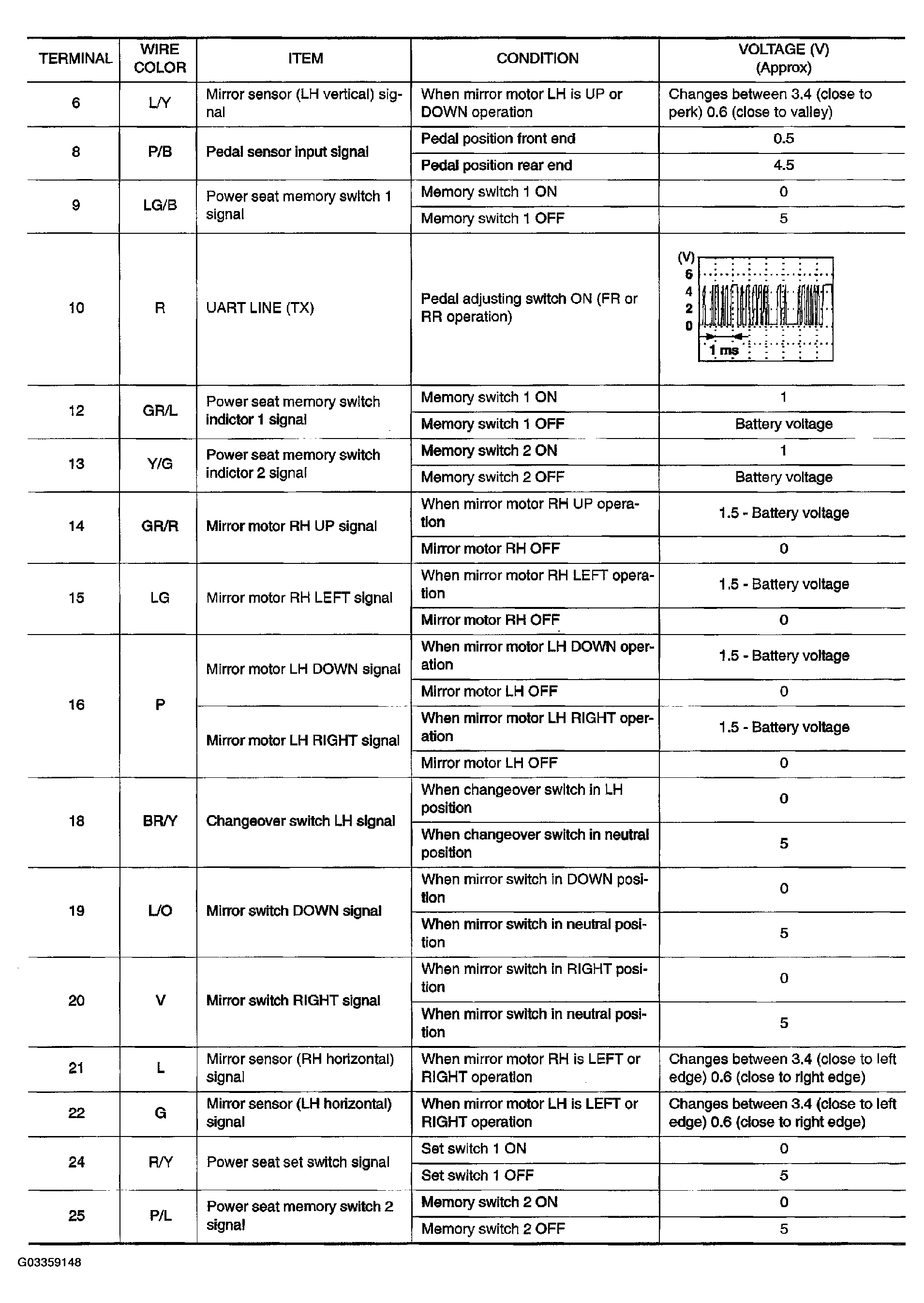

Fig 2: Identifying Terminals And Reference Values For Automatic Driver Positioner Control Unit (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

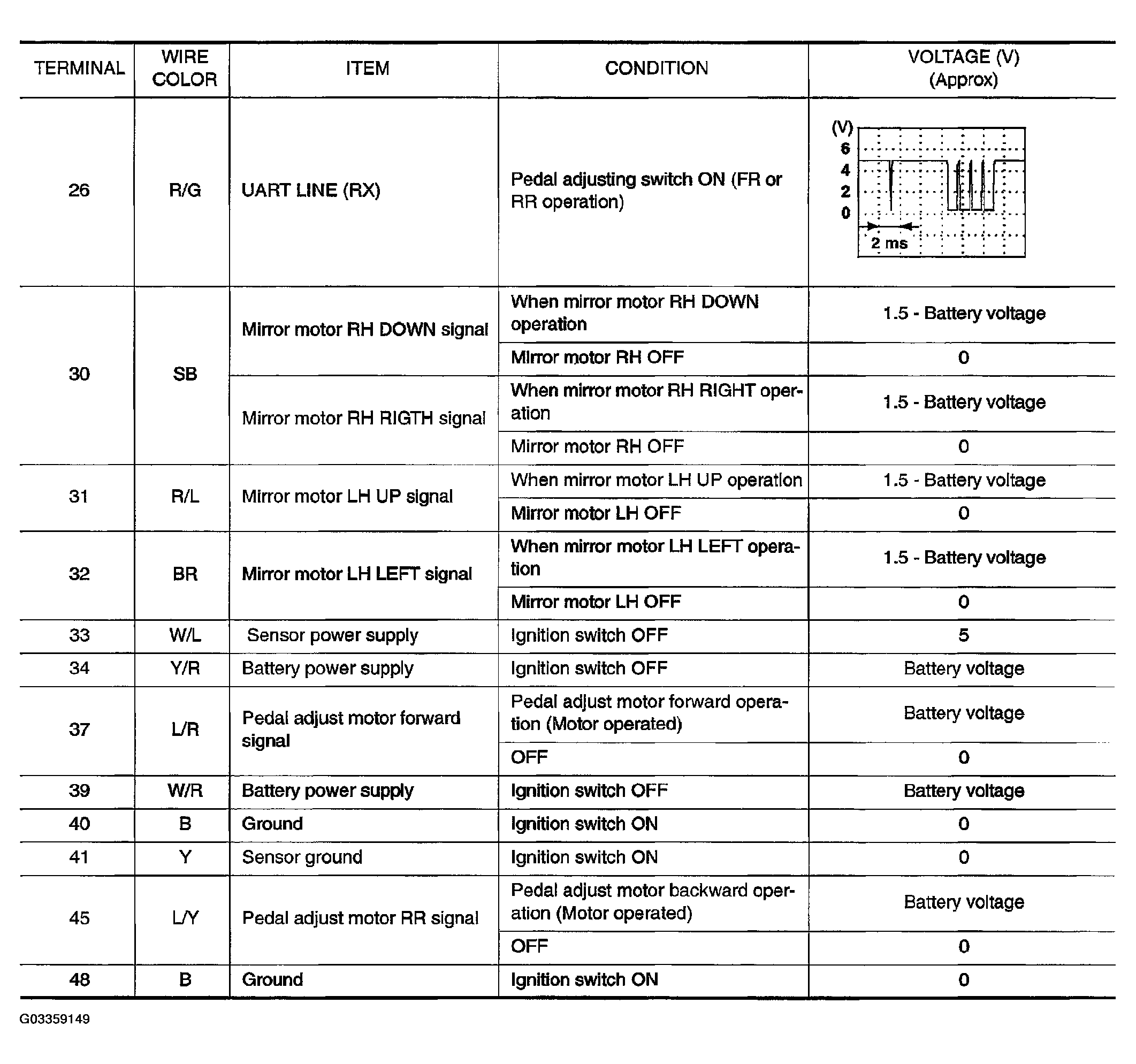

Fig 3: Identifying Terminals And Reference Values For Automatic Driver Positioner Control Unit (3 Of 3)
