Bulb Replacement

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door finisher. Refer to BACK DOOR TRIM in Exterior/Interior.
  2. Disconnect the back-up lamp connector.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb from its socket.
    1. Back-up lamp : 12V -16W

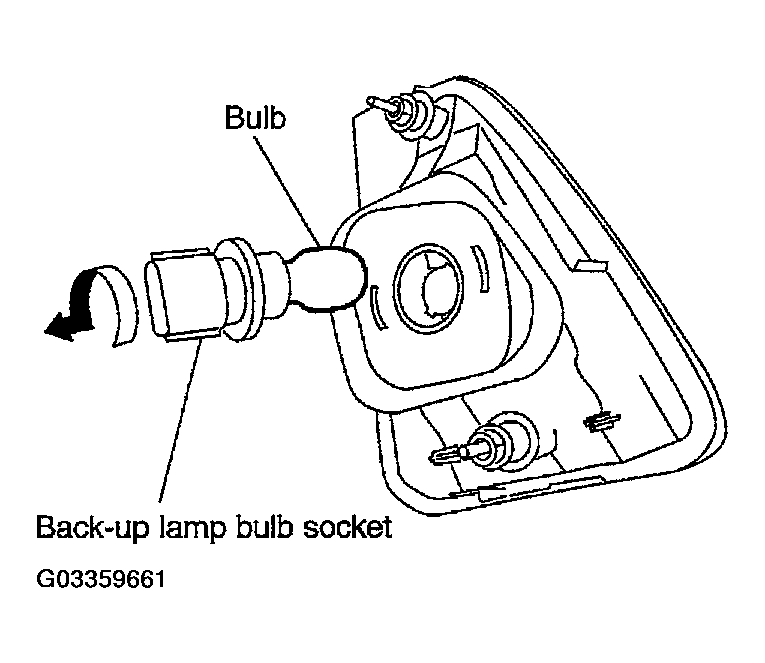

    Fig 1: Removing Bulb From Its Socket
    G03359661Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install in the reverse order of removal.
