WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

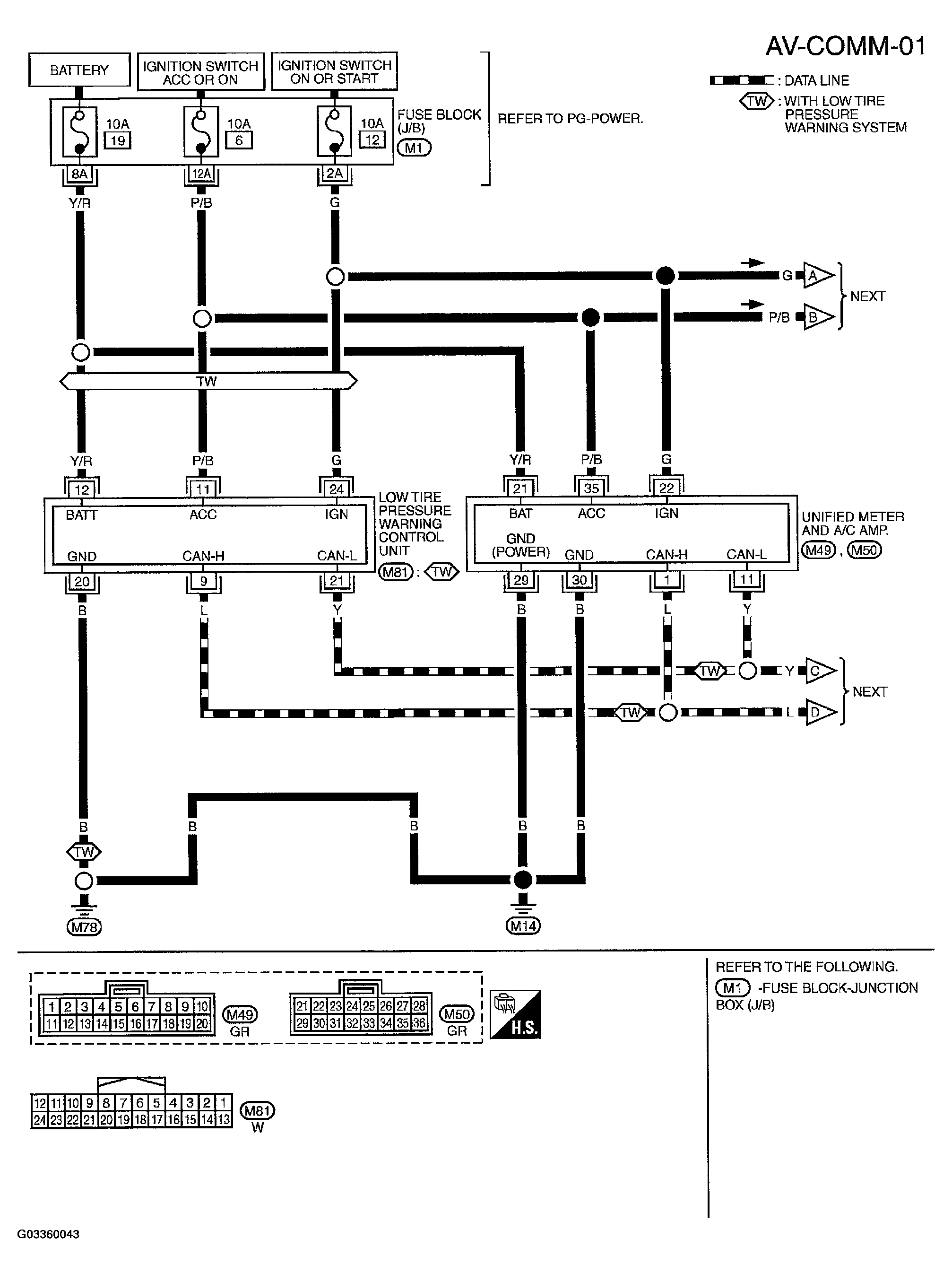

Fig 1: Wiring Diagram - CAN Communication System (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

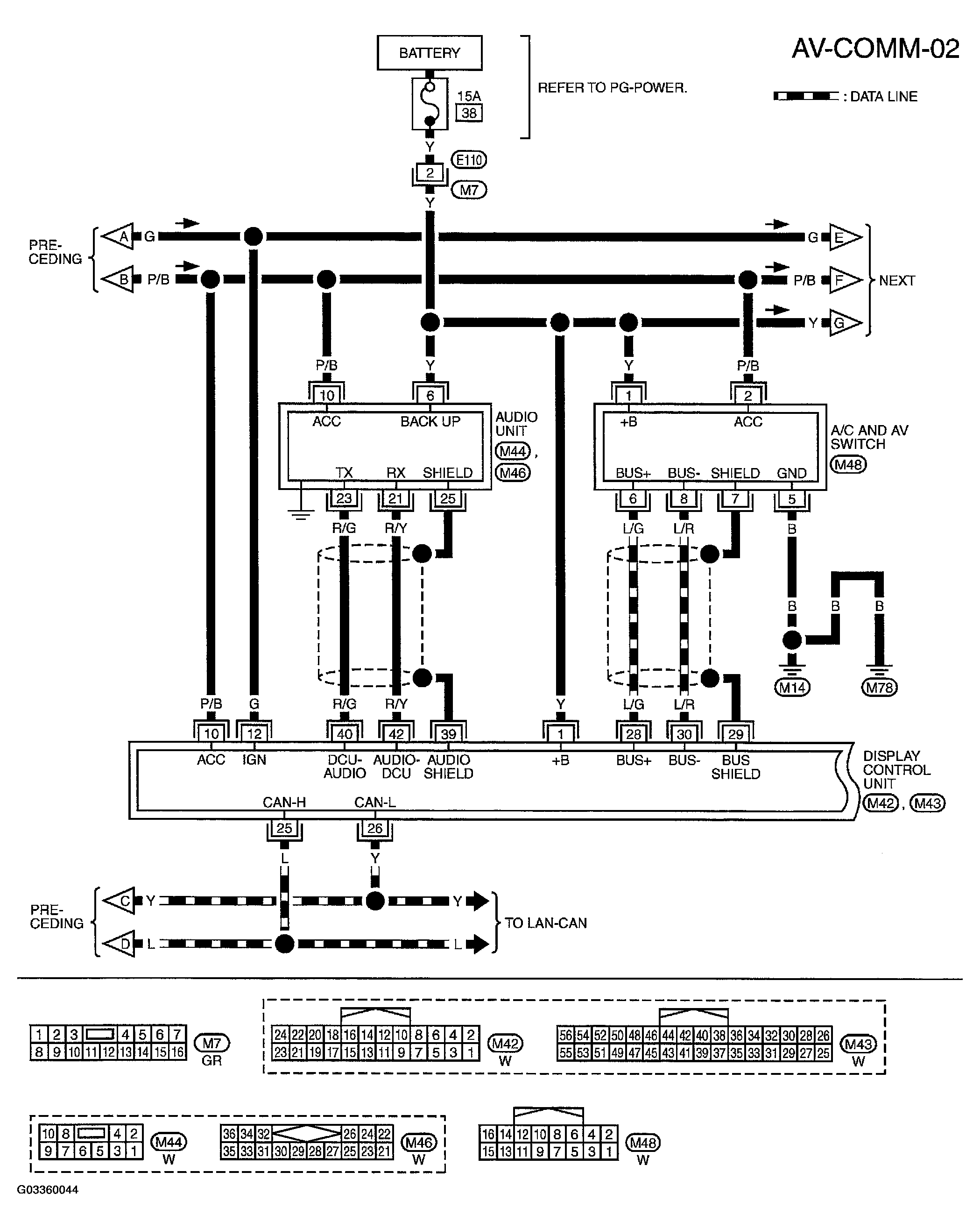

Fig 2: Wiring Diagram - CAN Communication System (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

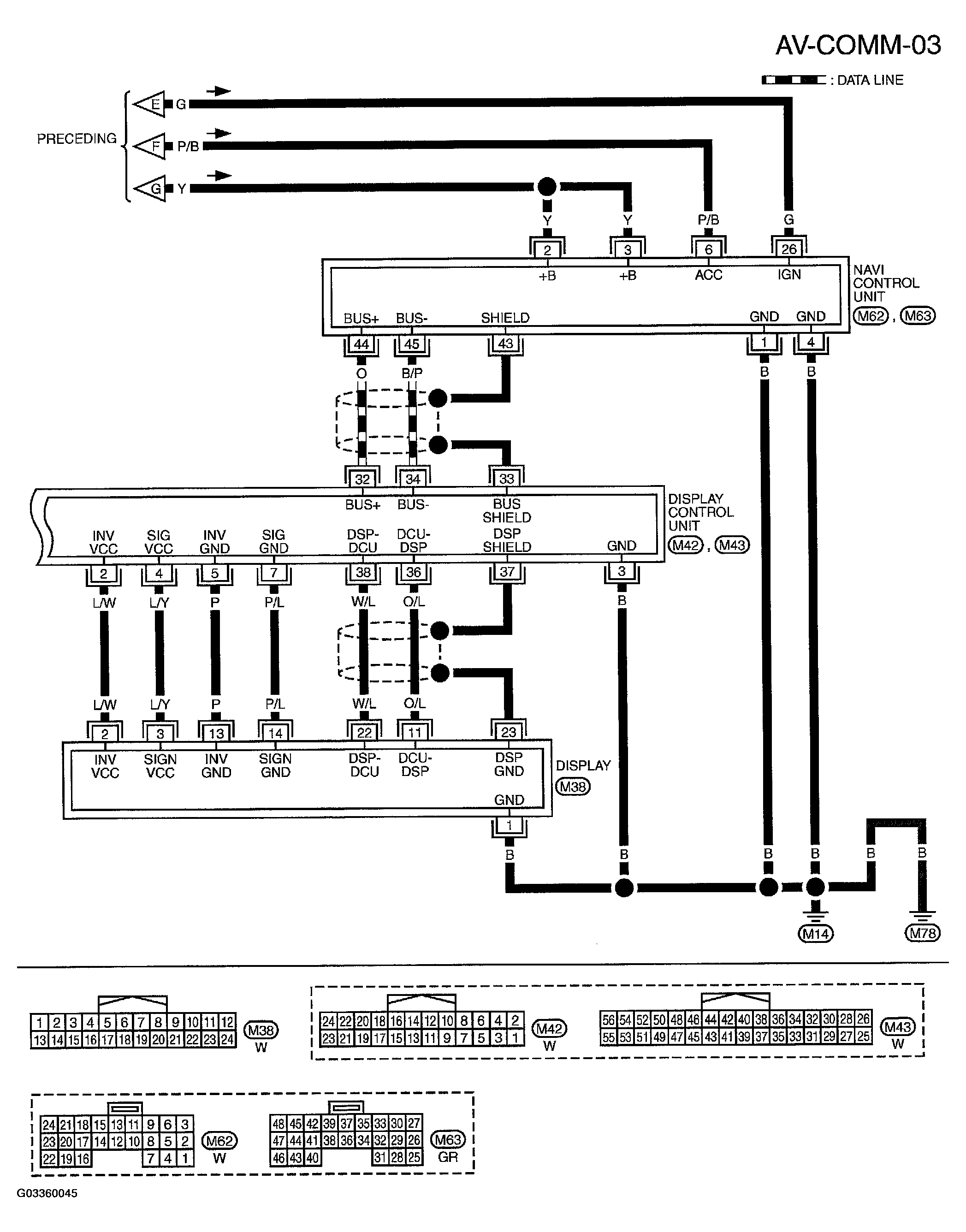

Fig 3: Wiring Diagram - CAN Communication System (3 Of 3)
