Consult-II Basic Operation

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch OFF, connect CONSULT-II and CONSULT- II CONVERTER to the data link connector, then turn ignition switch ON.

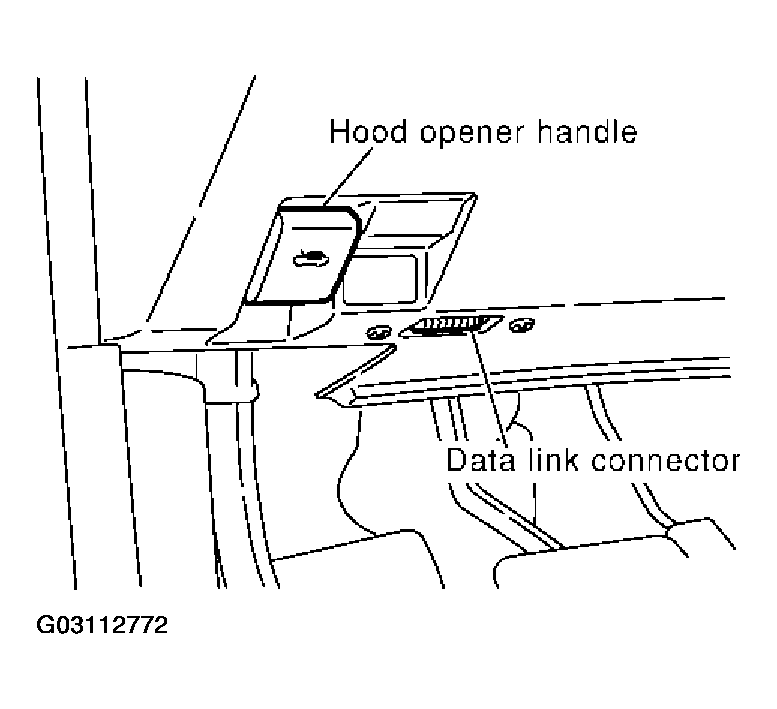

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)"

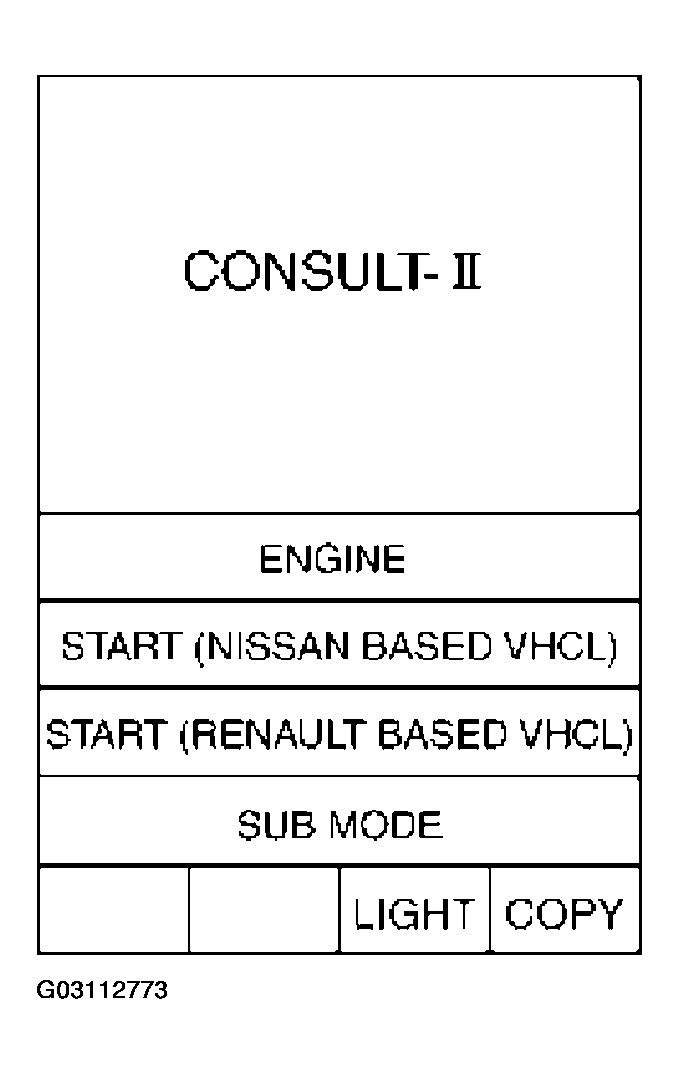

Fig 2: Displaying START(NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT in GENERAL INFORMATION article. "".

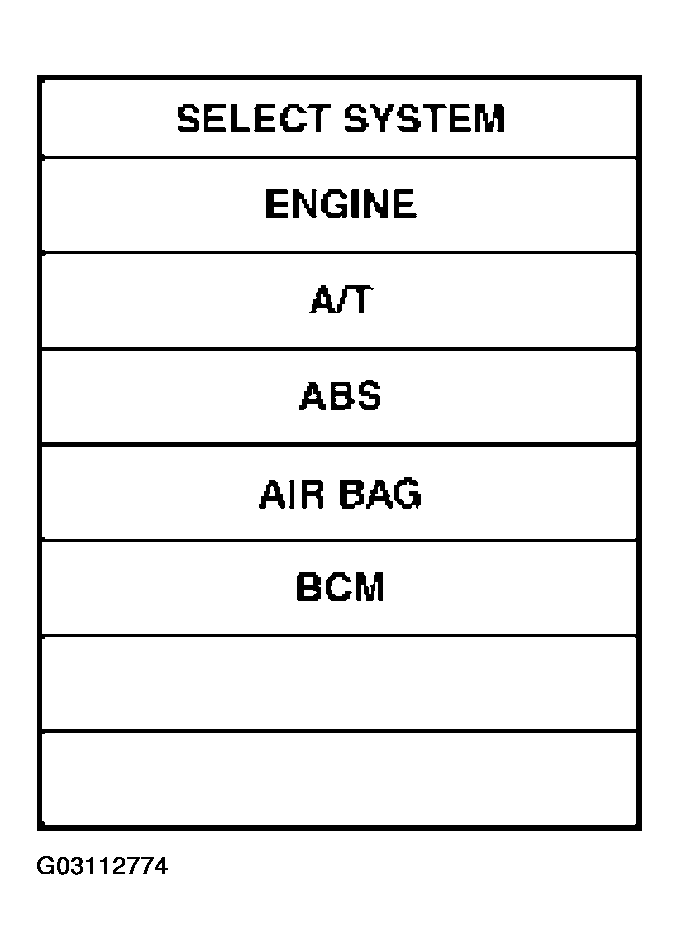

Fig 3: Displaying BCM On Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

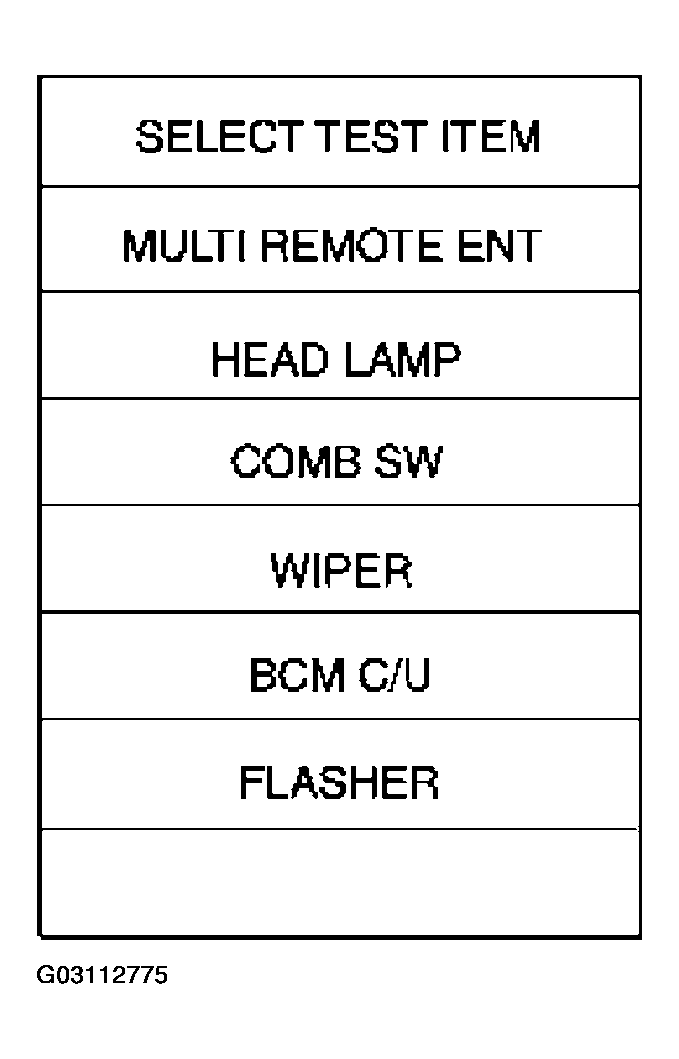

Fig 4: Displaying SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
