Consult-II Basic Operation

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

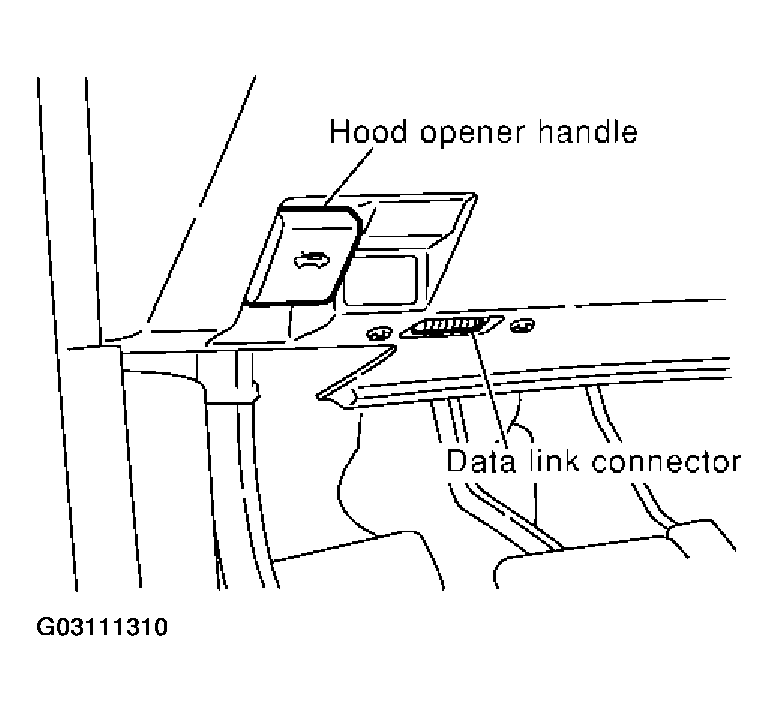

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

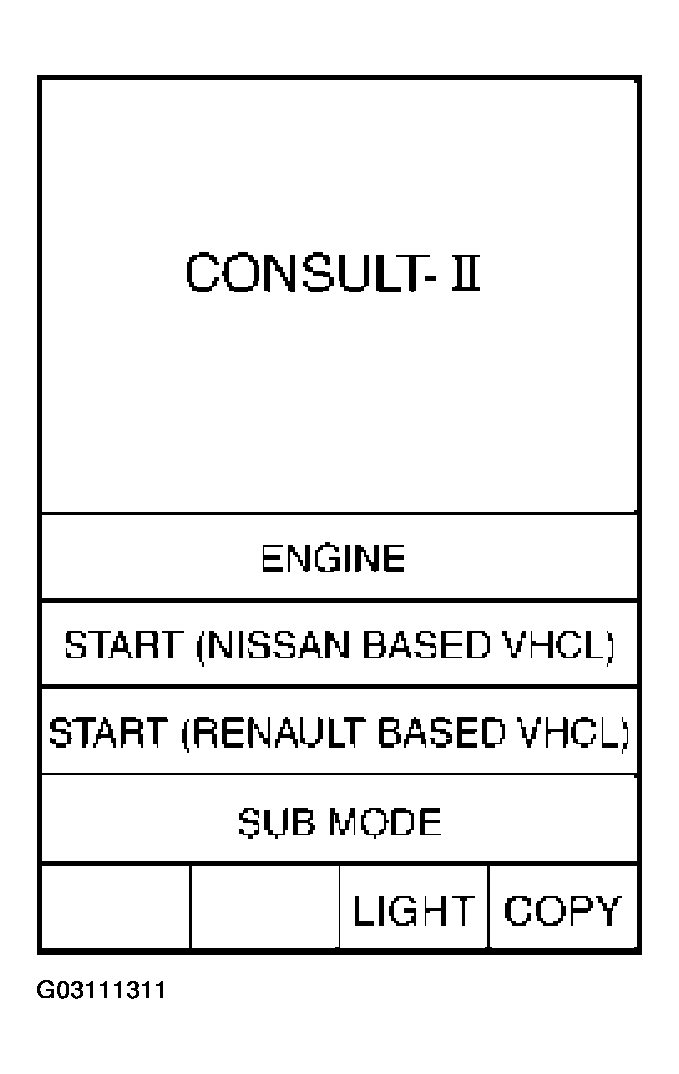

Fig 2: Displaying Start (Nissan Based Vhcl)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT in GENERAL INFORMATION article.

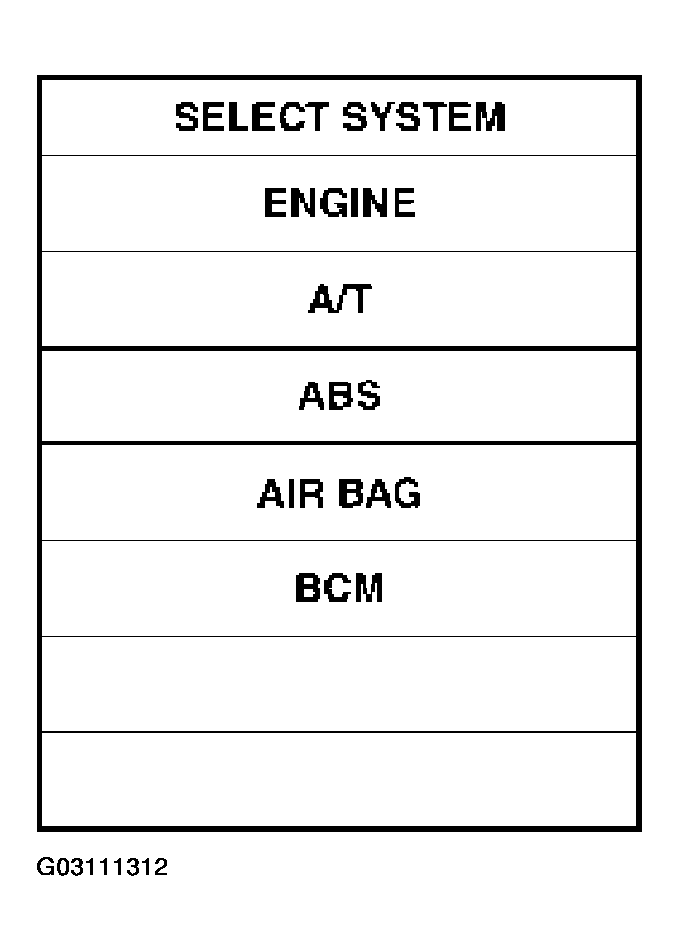

Fig 3: Displaying BCM On Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.

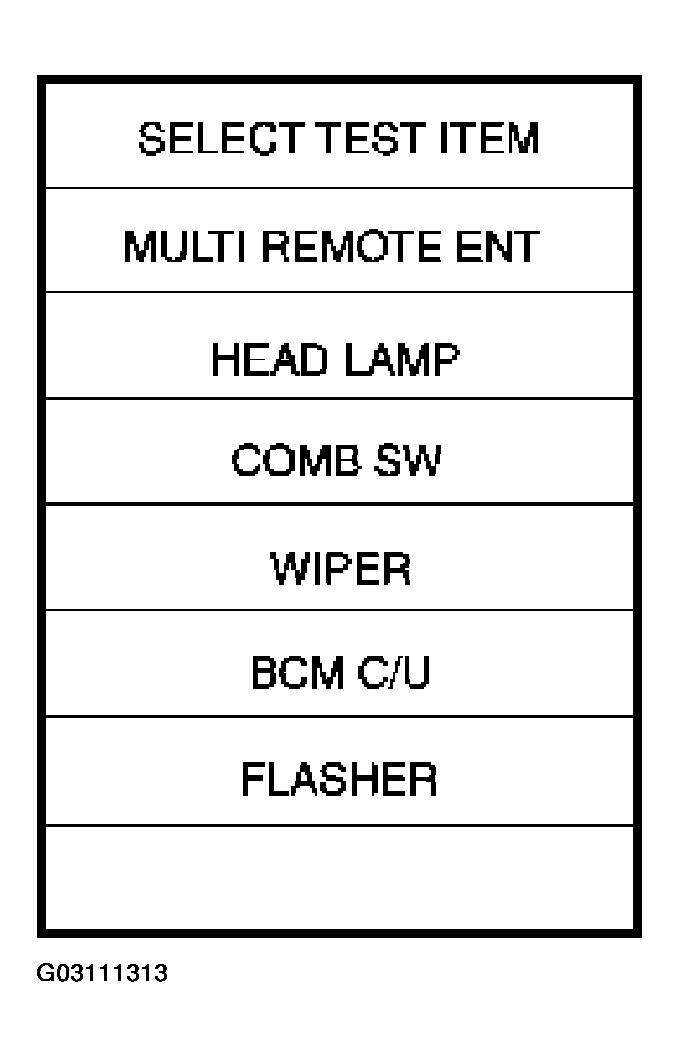

Fig 4: Displaying Head Lamp On Select Test Item Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
