Switch Circuit Inspection

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each operation status of the switch.

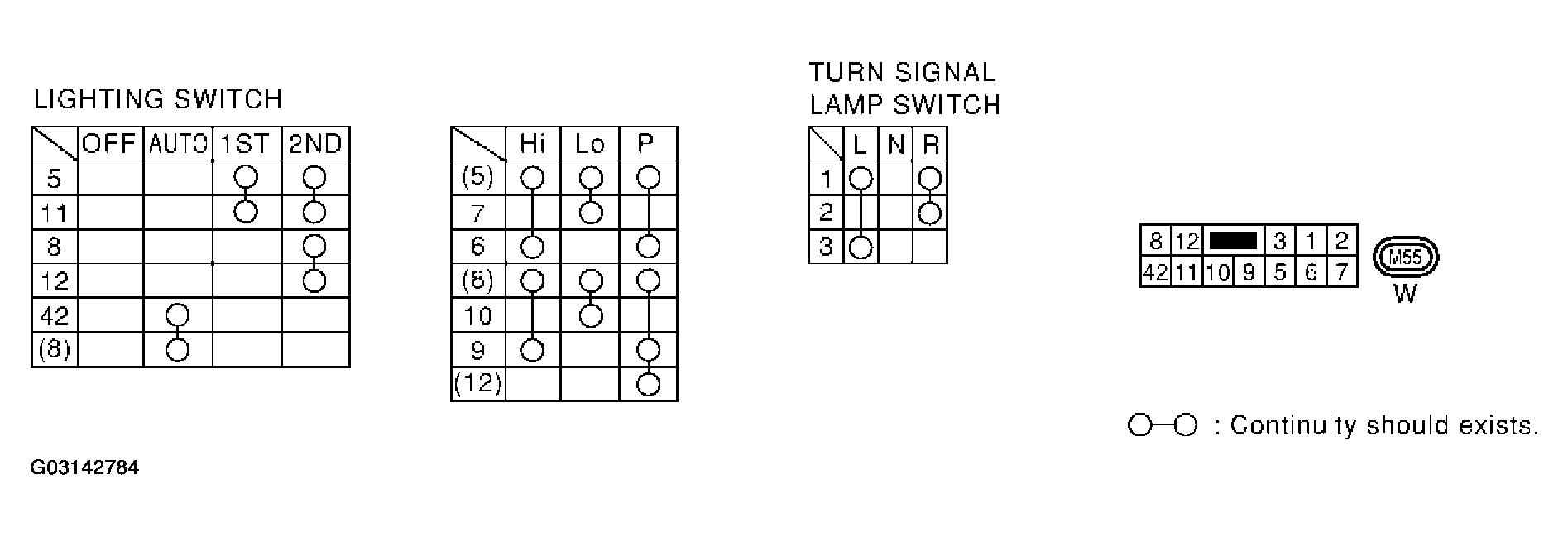

Fig 1: Checking Continuity Between Lighting And Turn Signal Switch Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Hi:"HIGH BEAM"position,Lo:"LOW BEAM"position,P:"FLASH TO PASS"position
