Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

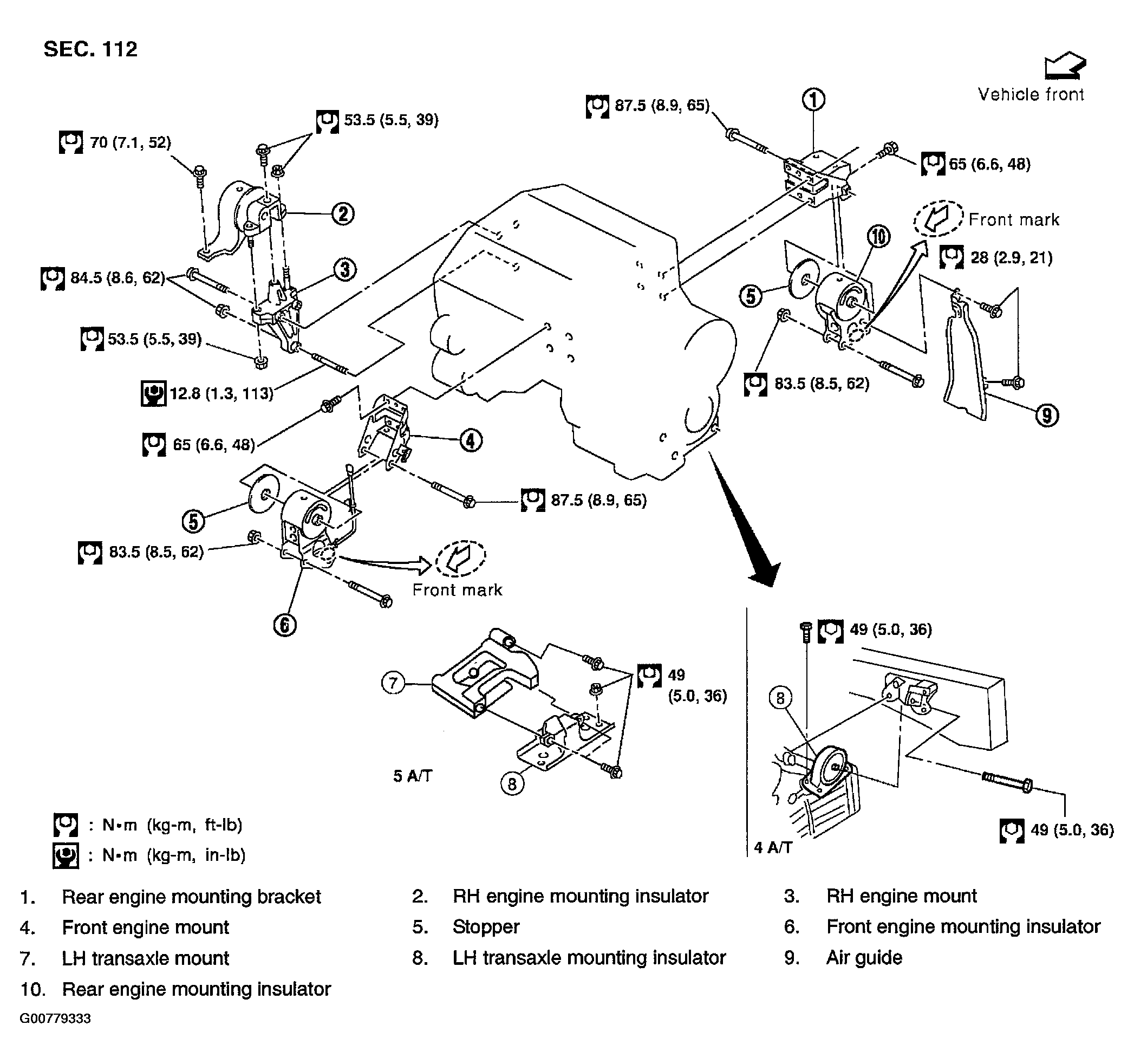

Fig 1: Exploded View Of Engine Mounts & Transmission Mounts With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

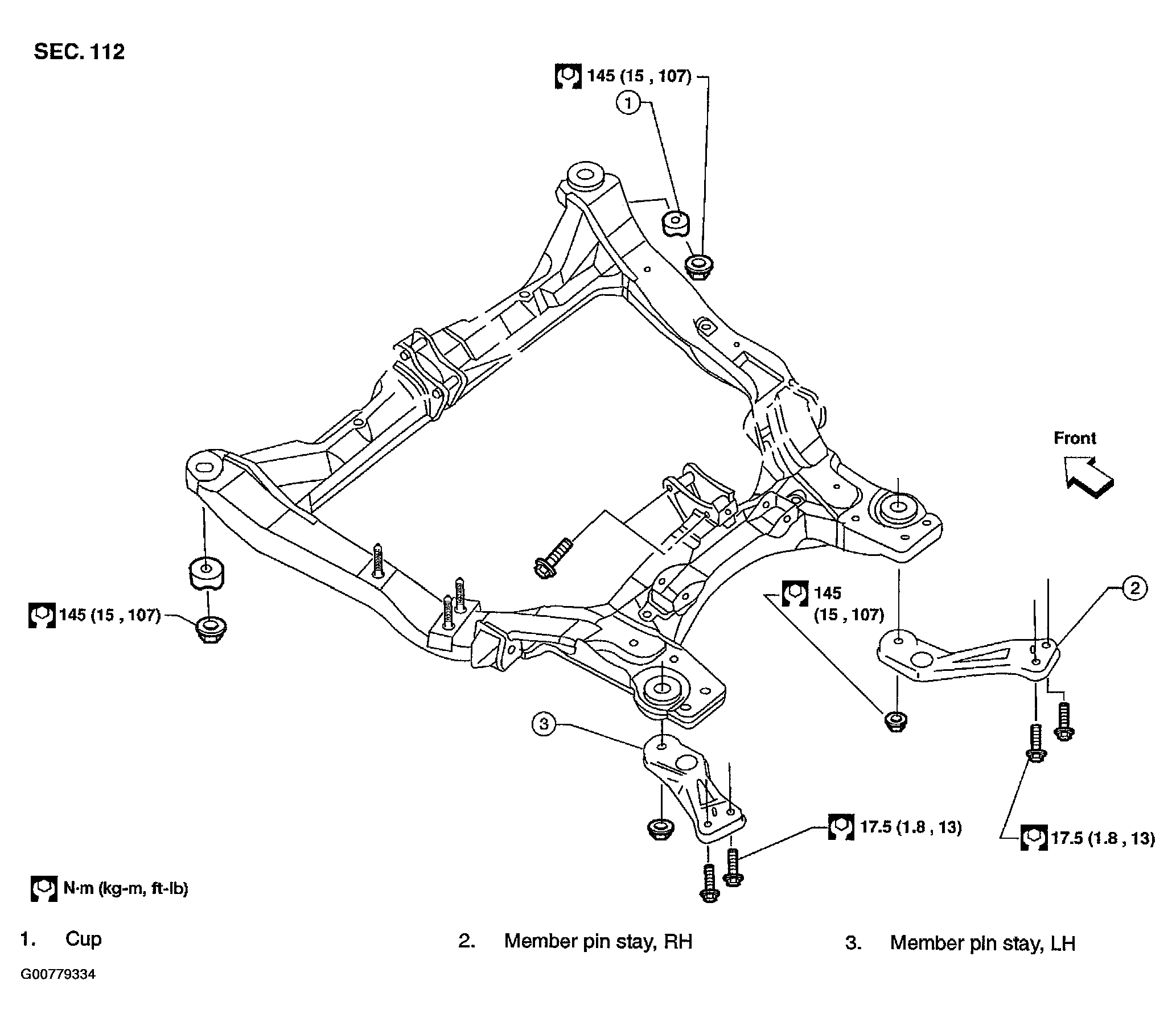

Fig 2: Exploded View Of Front Suspension Member Mounting & Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING:

Place chocks at front and back of rear wheels.
For engines not equipped with engine slingers, attach proper slingers and bolts as described in the NISSAN Parts Catalog.

CAUTION:

Do not start working until exhaust system and coolant are cool.
If items or work required are not covered by the engine main body section, refer to the applicable sections.
Use the correct supporting points for lifting and jacking.
In removing the drive shafts, be careful not to damage any transaxle grease seals.
Before separating the engine and transaxle, remove the crankshaft position sensor (POS).
Do not damage the edge of the crankshaft position sensor (POS) or the ring gear teeth.
