Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Perform the procedures with the exhaust system fully cooled down to avoid injury from the hot exhaust system.
  • Be careful not to cut your hand on the insulator edge.
NOTE: Use genuine NISSAN exhaust system parts or equivalent, which are specifically designed for heat resistance, corrosion resistance, and shape.

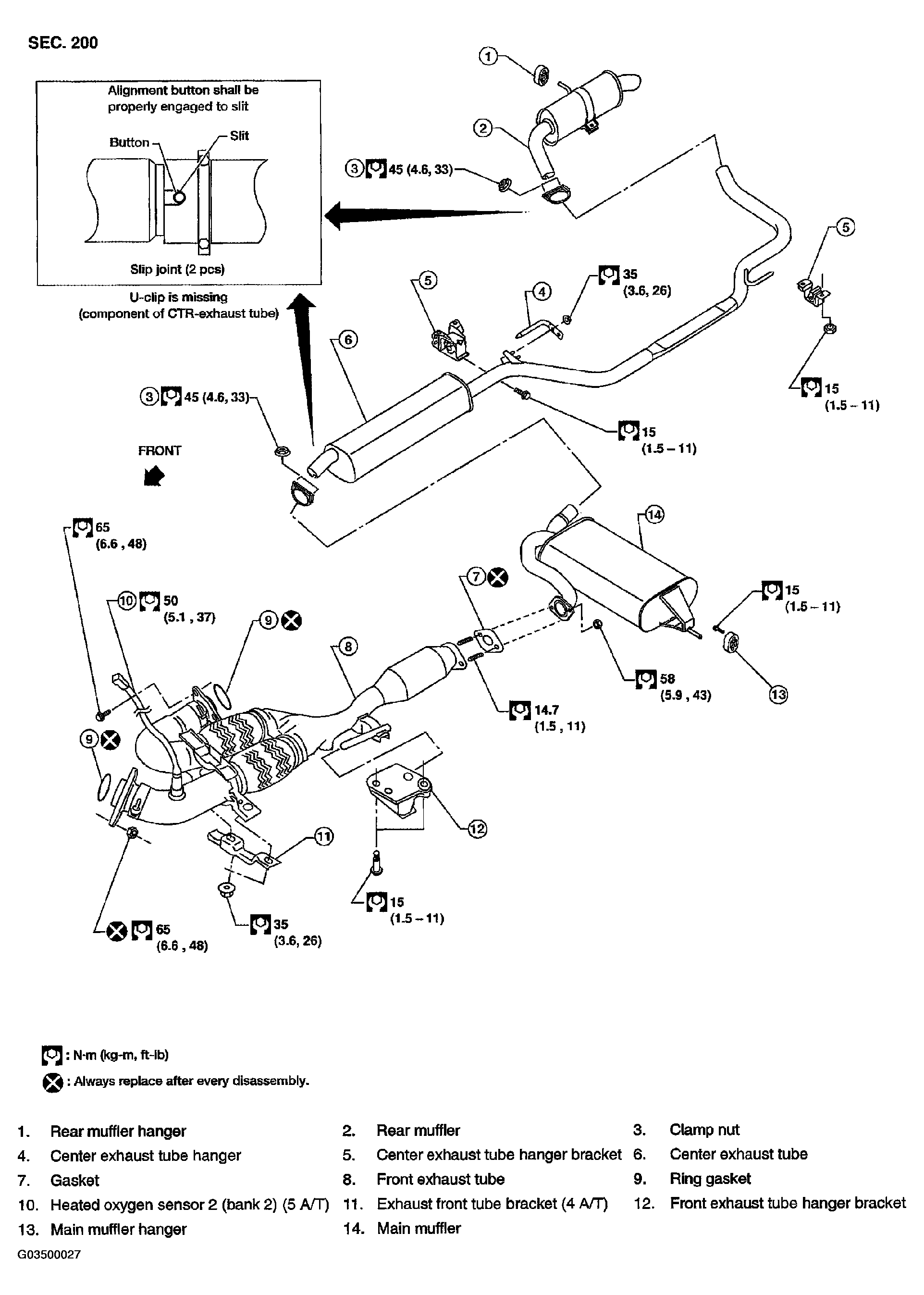

Fig 1: Exhaust System With Torque Specifications
G03500027Courtesy of NISSAN MOTOR CO., U.S.A.
