OPEN SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While fully closing and opening the back door, check voltage between back door control unit connector B55 terminal 15 and ground.

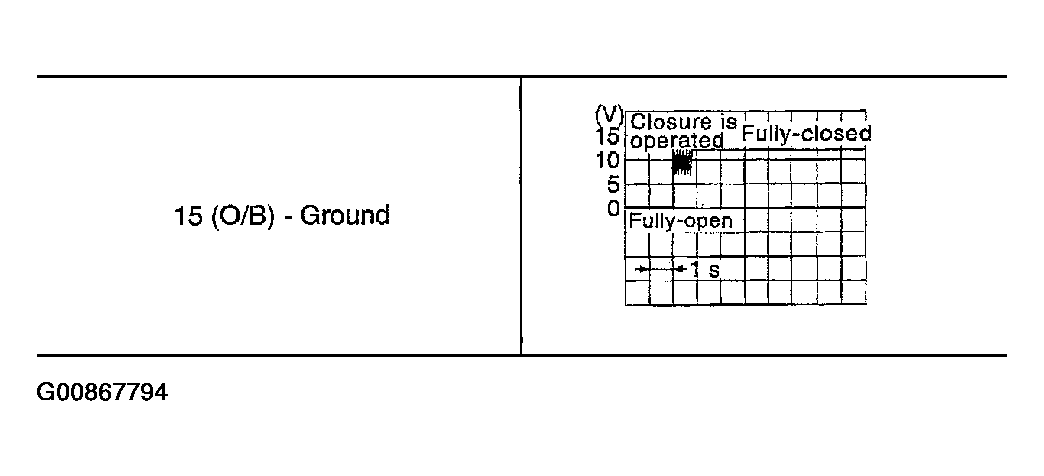

Fig 1: Back Door Control Unit Connector B55 Terminal 15 & Ground Waveform
Courtesy of NISSAN MOTOR CO., U.S.A.

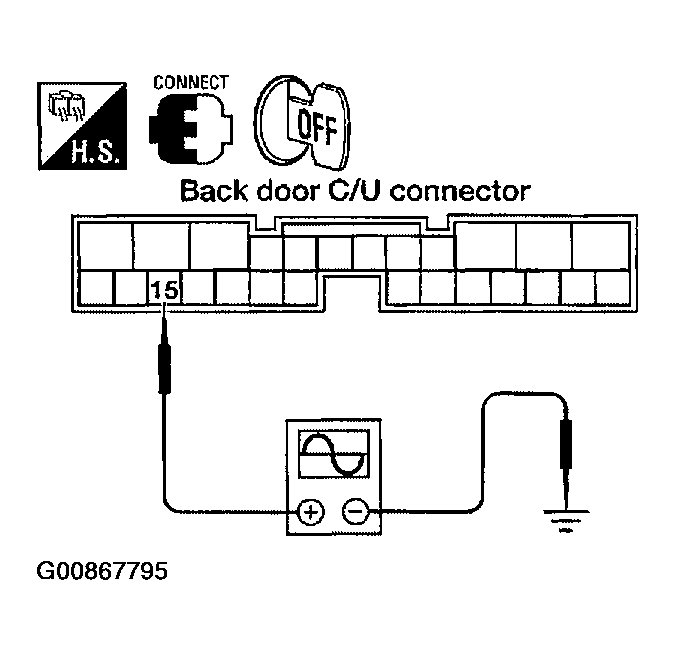

Fig 2: Checking Voltage Between Back Door Control Unit Connector B55 Terminal 15 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Open switch is OK.
2. NG: GO TO 2.
OPEN SWITCH CIRCUIT INSPECTION
1. Disconnect back door latch and back door control unit connector.
2. Check continuity between back door latch (open switch) connector D511 terminal 4 and back door control unit connector B55 terminal 15.
  4 (O/B) - 15 (O/B): Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair the harness between the back door latch (open switch) and the back door control unit.

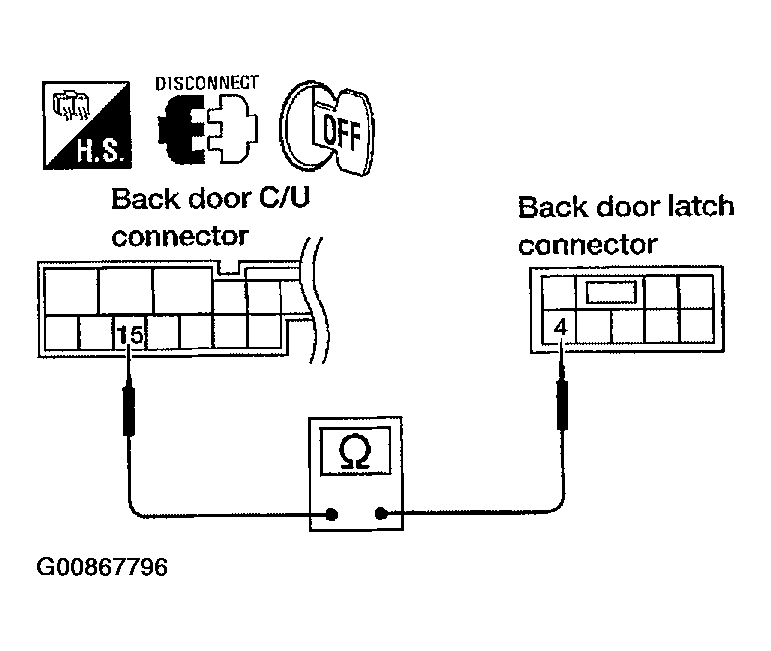

Fig 3: Checking Continuity Between Back Door Latch (Open Switch) & Back Door Control Unit Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
OPEN SWITCH GROUND INSPECTION
Check continuity between back door latch (open switch) connector D511 terminal 8 and ground.

8 (B) - Ground: Continuity should exist.

OK or NG
1. OK: Replace the back door latch.
2. NG: Repair the harness between the back door latch (open switch) and ground.

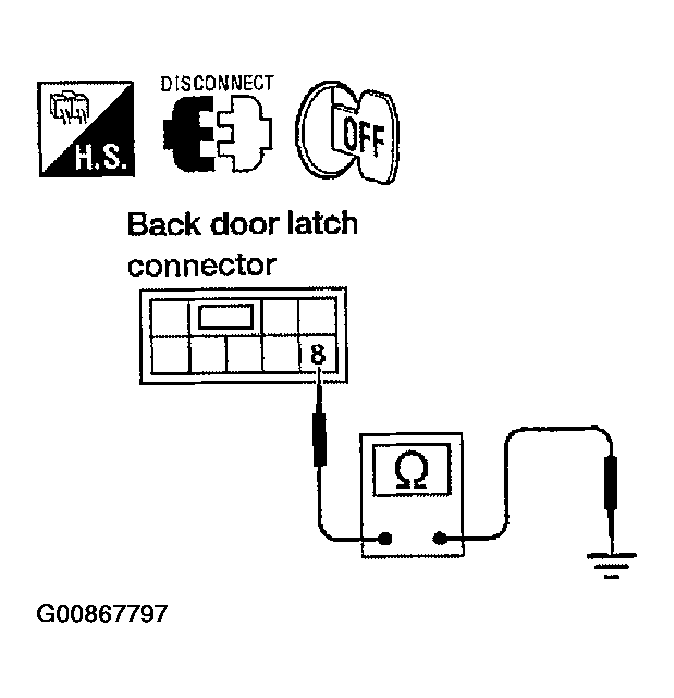

Fig 4: Checking Continuity Between Back Door Latch (Open Switch) Connector D511 Terminal 8 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
