Power Seat Switch Ground Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SEAT SWITCH GROUND CIRCUIT
Check continuity between power seat switch LH connector B305 terminal 3 (B) and ground.

3 (B) - Ground: Continuity should exist.

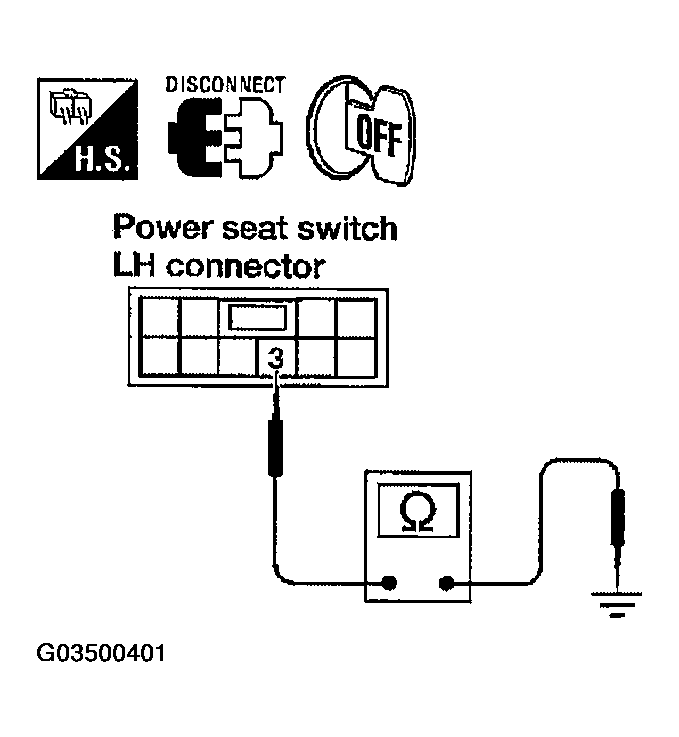

Fig 1: Checking Continuity Between Power Seat Switch LH Connector & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Check the condition of the harness and connector.
2. NG: Repair or replace harness.
