Front Air Control

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the five control knobs from the control unit.
  2. Remove the shift knob.
  3. Remove cluster lid C, disconnect the front air control electrical connectors. Refer to "CLUSTER LID C ".
  4. Remove the screws securing the front air control to cluster lid C.
  5. Remove the front air control.
  6. Installation is in the reverse order of removal.

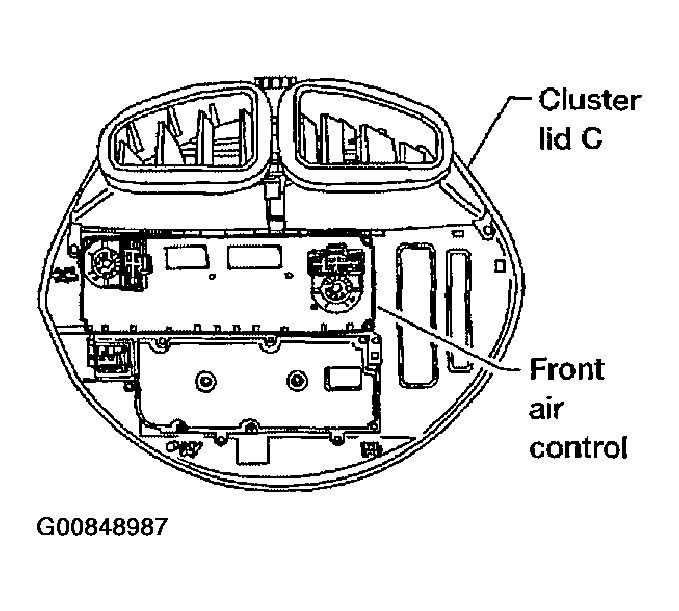

    Fig 1: Removing Front Air Control
    G00848987Courtesy of NISSAN MOTOR CO., U.S.A.
