Front Refrigeration System

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

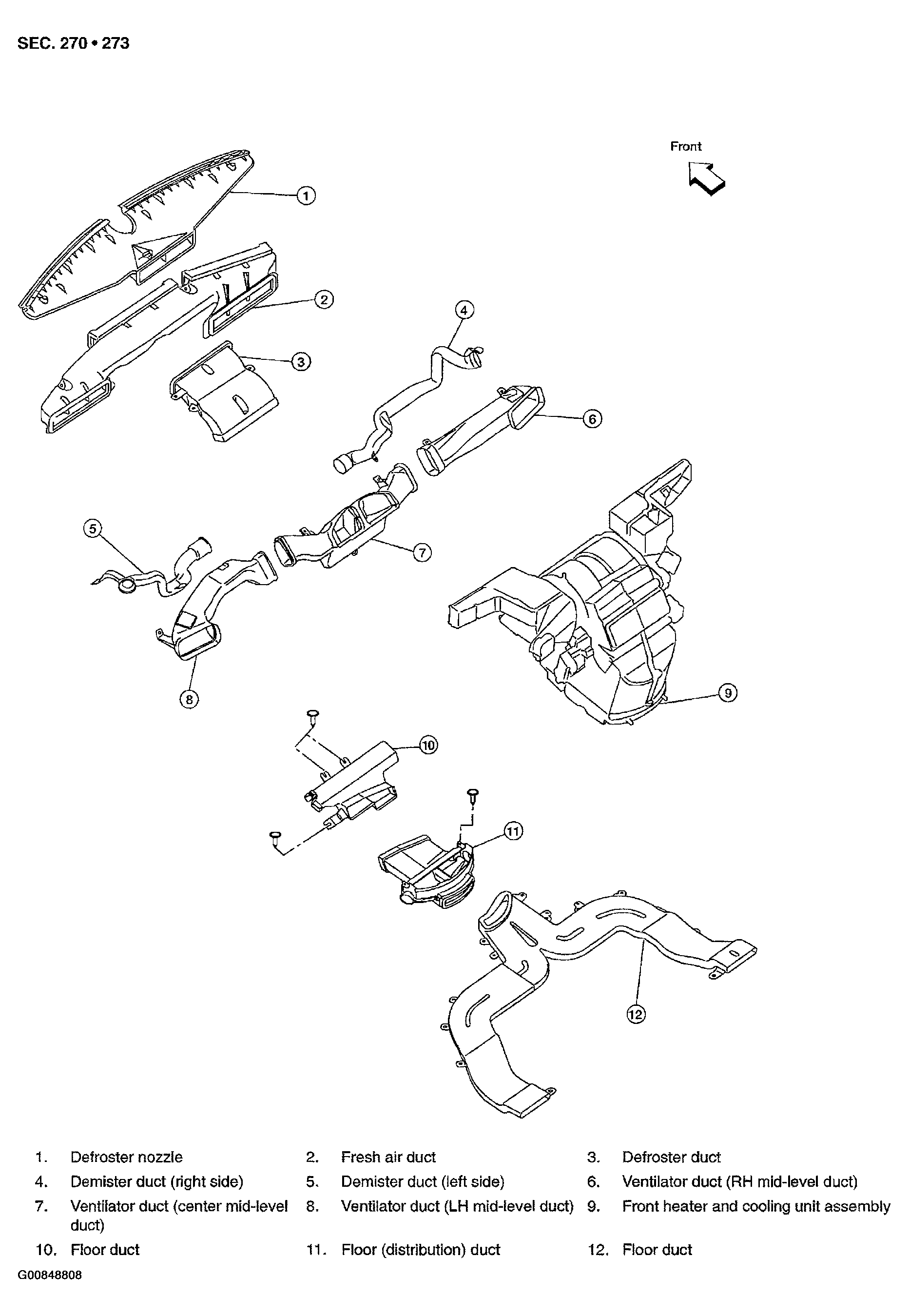

Fig 1: Identifying Front Refrigeration System Component
G00848808Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Defroster nozzle
  2. Fresh air duct
  3. Defroster duct
  4. Demister duct (right side)
  5. Demister duct (left side)
  6. Ventilator duct (RH mid-level duct)
  7. Ventilator duct (center mid-level duct)
  8. Ventilator duct (LH mid-level duct)
  9. Front heater and cooling unit assembly
  10. Floor duct
  11. Floor (distribution) duct
  12. Floor duct
