Rear Refrigeration System

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

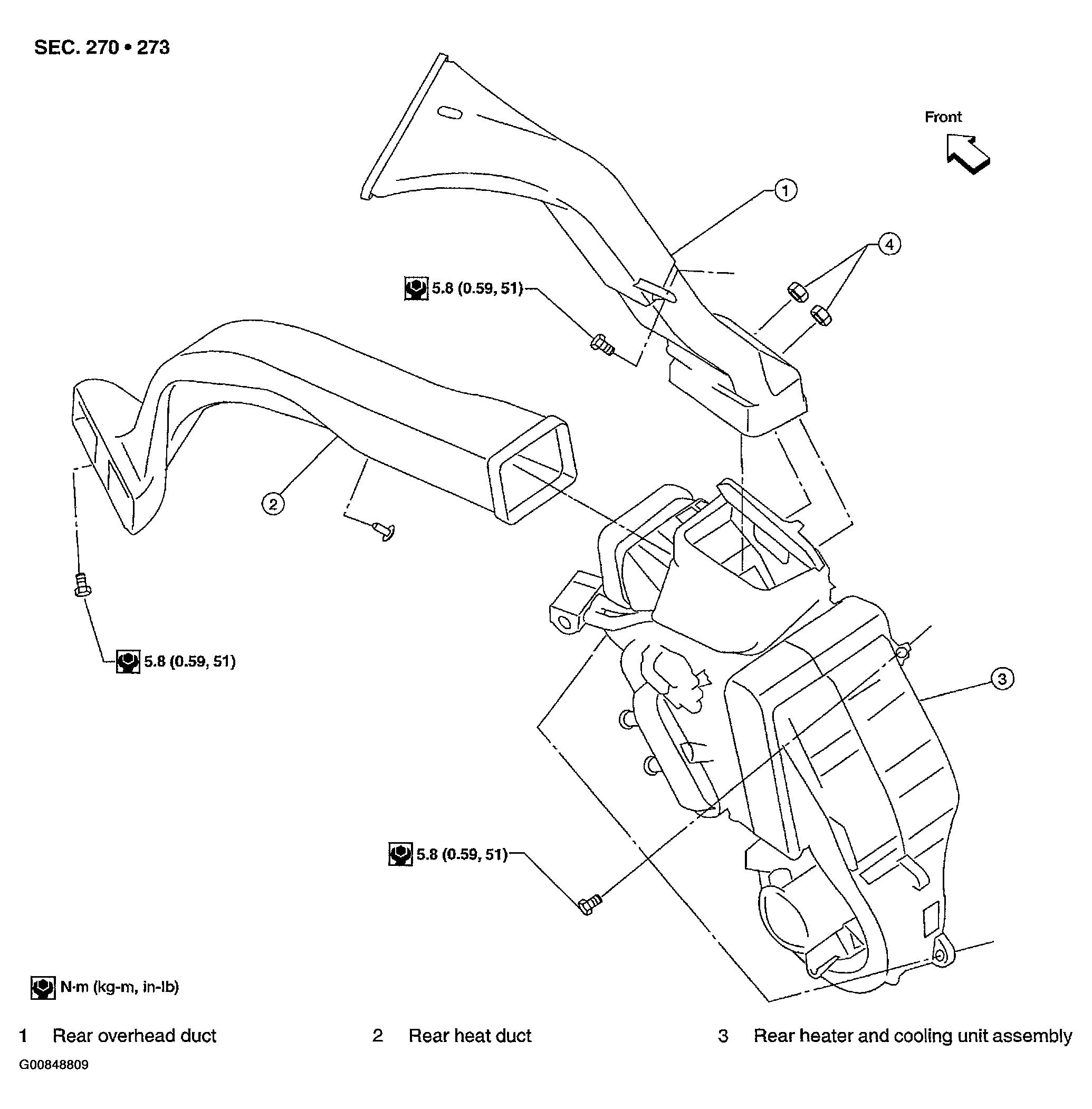

Fig 1: Rear Refrigeration System Replacement Components With Torque Specifications
G00848809Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Rear overhead duct
  2. Rear heat duct
  3. Rear heater and cooling unit assembly
