"Retained PWR"

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

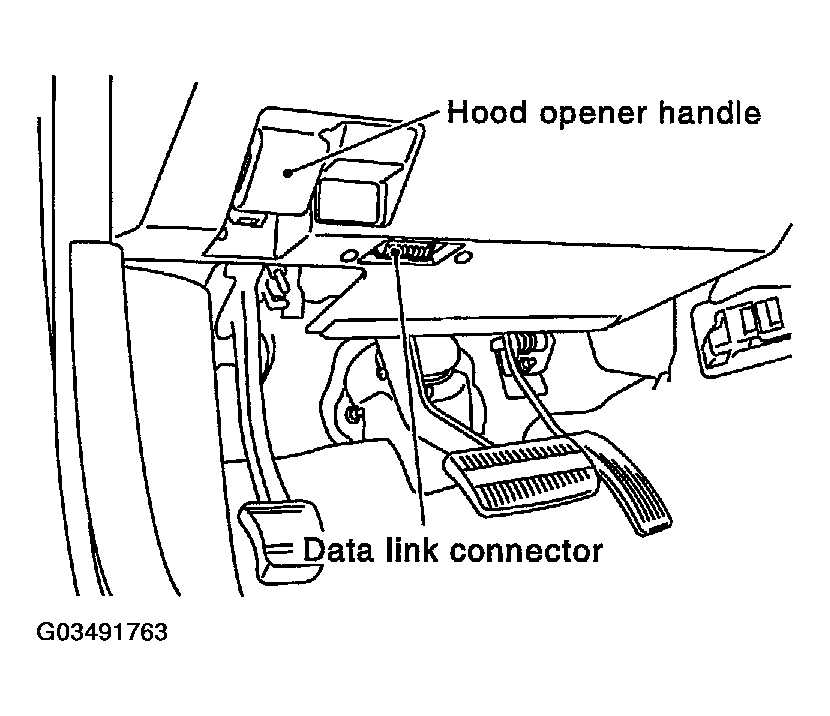

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit".

Fig 3: Displaying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: Displaying Retained PWR
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: Displaying Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
