Detention Switch Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Check that when the CVT selector lever is in P position, "DETENT SW" on the DATA MONITOR becomes OFF.

DETENTION SWITCH CIRCUIT CHECK CHART

Monitor item [OPERATION or UNIT]		Contents
DETENT SW	"ON/OFF"	The selector lever position "P position (OFF)/other than P position (ON)" judged from the detente switch signal is displayed.

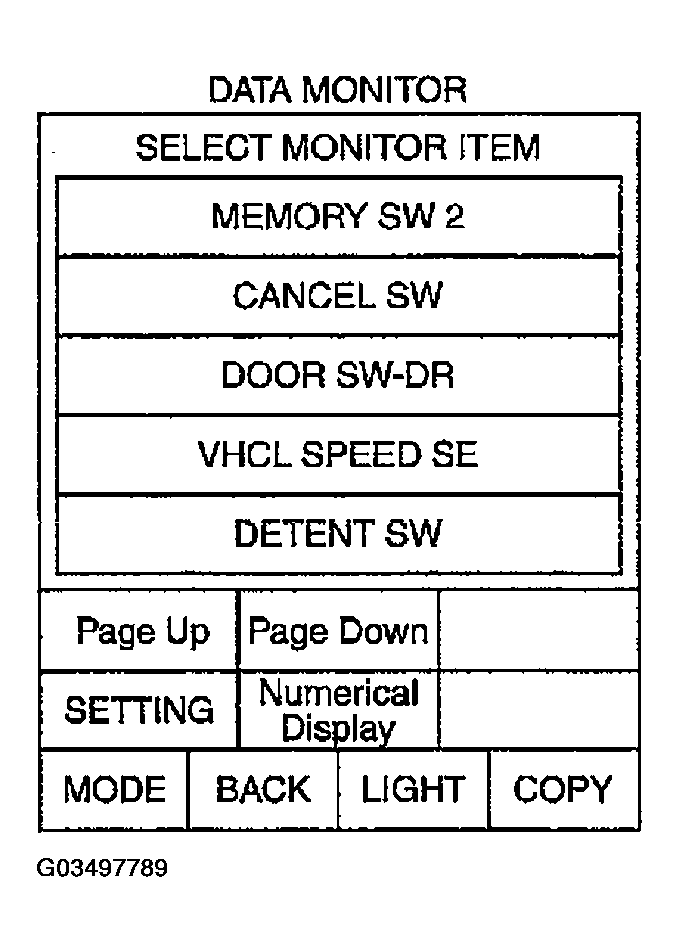

Fig 1: Scan Tool Displaying DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 2.

OK or NG

OK: Detention switch circuit is OK.
NG: GO TO 2.

CHECK DETENTION SWITCH POWER SUPPLY
1. Do insert the key to key cylinder.
2. Disconnect CVT device [detention switch (key)] connector.
3. Check voltage between CVT device [detention switch (key)] connector M57 terminal 5 (B/R) and ground.
  5 (B/R) - Ground: Battery voltage.
OK or NG
1. OK: GO TO 4.
2. NG: GO TO 3.

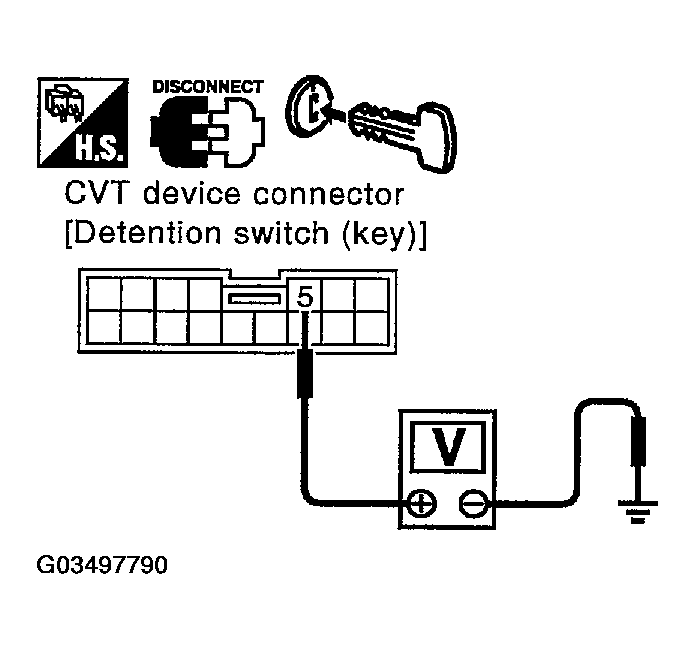

  Fig 2: Checking Voltage Between CVT Device [Detention Switch (Key)] Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK DETENTION SWITCH HARNESS
1. Turn ignition switch OFF.
2. Disconnect CVT device [detention switch (key)] connector and "key switch and key lock solenoid" connector.
3. Check continuity between CVT device [detention switch (key)] connector M57 terminal 5 (B/R) and key switch and key lock solenoid connector M28 terminal 4 (B/R).
  5 (B/R) - 4 (B/R): Continuity should exist
4. Check continuity between CVT device [detention switch (key)] connector M57 terminal 5 (B/R) and ground.
  5 (B/R) - Ground: Continuity should not exist.

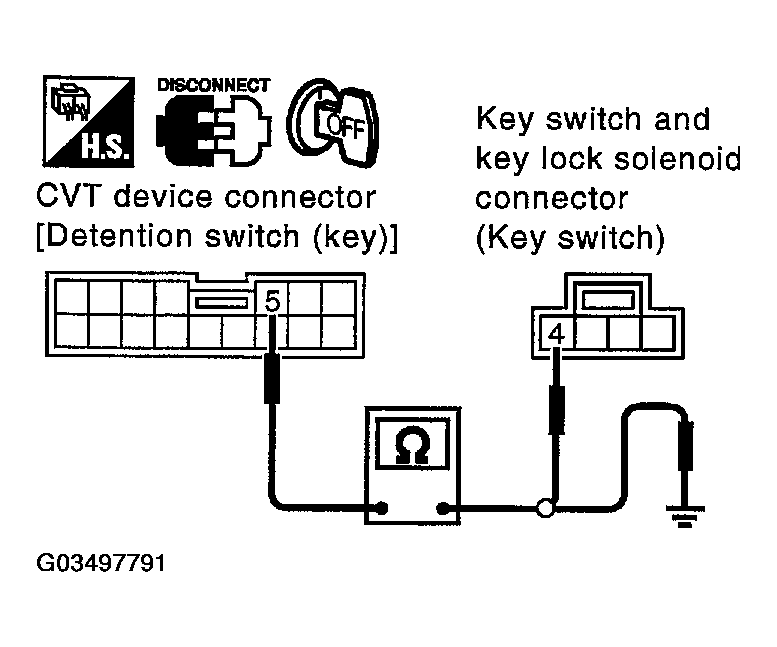

  Fig 3: Checking Continuity Between CVT Device [Detention Switch (Key)] Connector And Key Switch And Key Lock Solenoid Connector, And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check the condition of the harness and connector.
2. NG: Repair or replace harness between CVT device [detention switch (key)] and key switch and key lock solenoid.

CHECK DETENTION SWITCH

Check continuity between detection switch as follows.

CONTINUITY CHECK CHART

Terminals		Condition	Continuity
5	6	P-position	Yes.
5	6	Other than P-position	No.

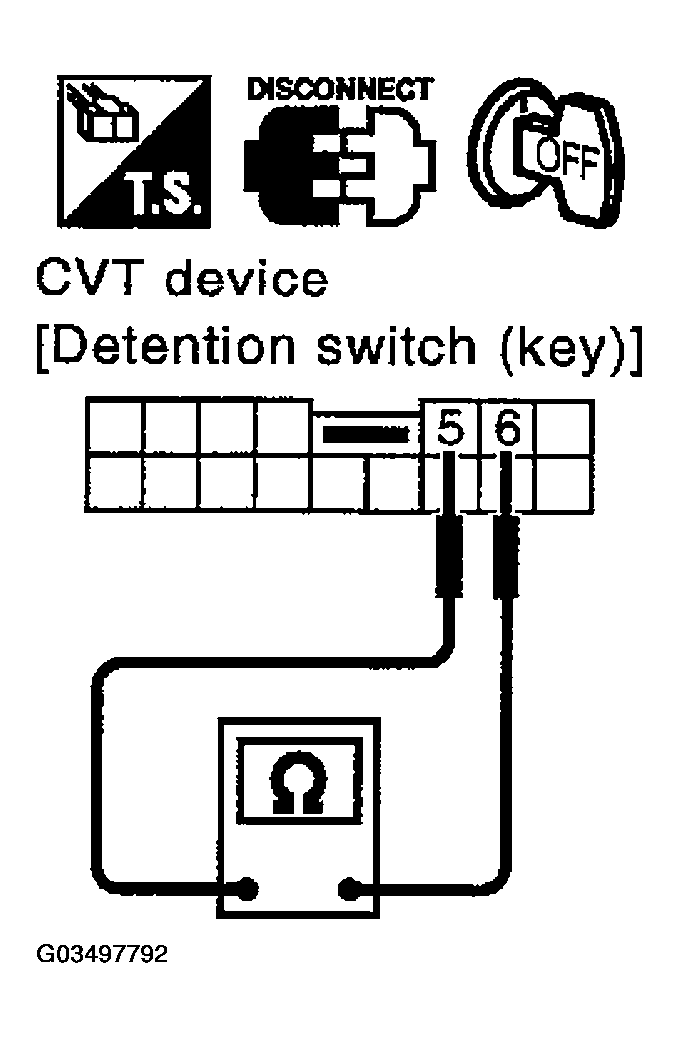

Fig 4: Checking Continuity Between Detection Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.
NG: Replace CVT device [detention switch (key)].

CHECK DETENTION SWITCH SIGNAL CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit connector B303 terminal 21 (R/L) and CVT device [detention switch (key)] connector M57 terminal 6 (L).
  21 (R/L) - 6 (L): Continuity should exist.
3. Check continuity between driver seat control unit connector B303 terminal 21 (R/L) and ground.
  21 (R/L) - Ground: Continuity should not exist.

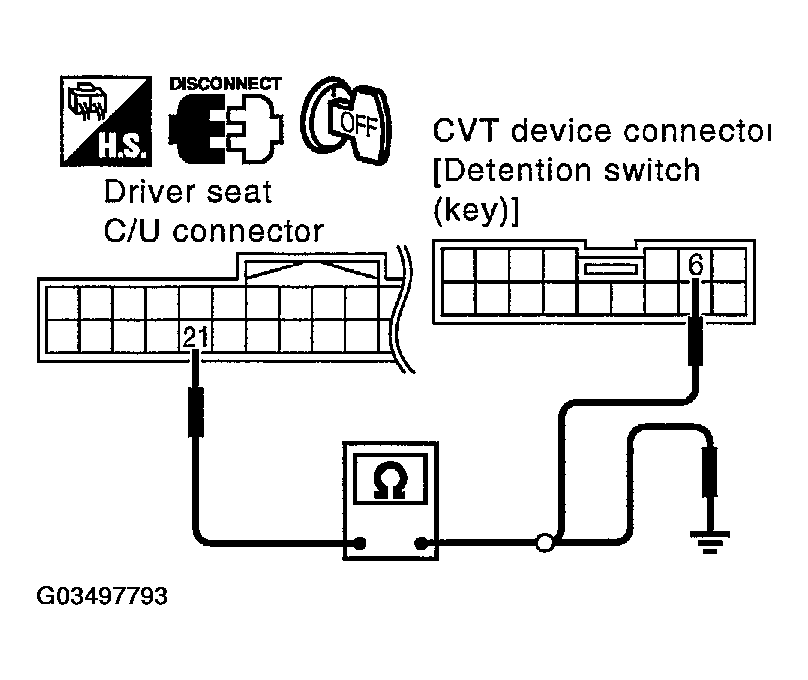

  Fig 5: Checking Continuity Between Driver Seat Control Unit Connector B303 Terminal 21 (R/L) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace driver seat control unit.
2. NG: Repair or replace harness between automatic drive positioner control unit and CVT device [detention switch (key)].
