Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR FUNCTION
Check the following items.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG
1. OK: GO TO 2.
2. NG: Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR CHECK

With CONSULT-II

Check that "ON" is displayed on "MIR/SE RH R-L, MIR/SE RH U-D" in the DATA MONITOR.

MIRROR SENSOR RH CIRCUIT CHECK CHART

Monitor item [OPERATION or UNIT]		Contents
MIR/SEN RH R-L	"V"	Voltage output from RH door mirror sensor (LH/RH) is displayed.
MIR/SEN RH U-D	"V"	Voltage output from RH door mirror sensor (UP/DOWN) is displayed.

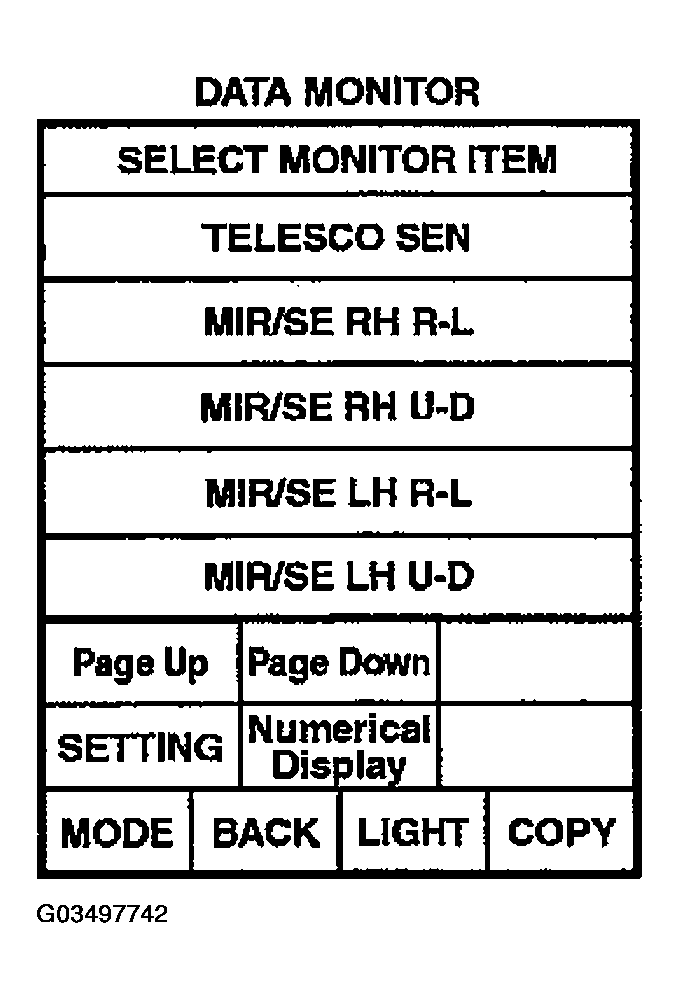

Fig 1: Scan Tool Displaying DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch ACC.

Check voltage between door mirror (passenger side) connector and ground.

VOLTAGE CHECK CHART

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D32	4 (L)	Ground	When motor is LEFT or RIGHT operation	Changes between 3.4 (close to left edge) - 0.6 (close to right edge)
D32	10 (R/B)	Ground	When motor is UP or DOWN operation	Changes between 3.4 (close to peak) - 0.6 (close to valley)

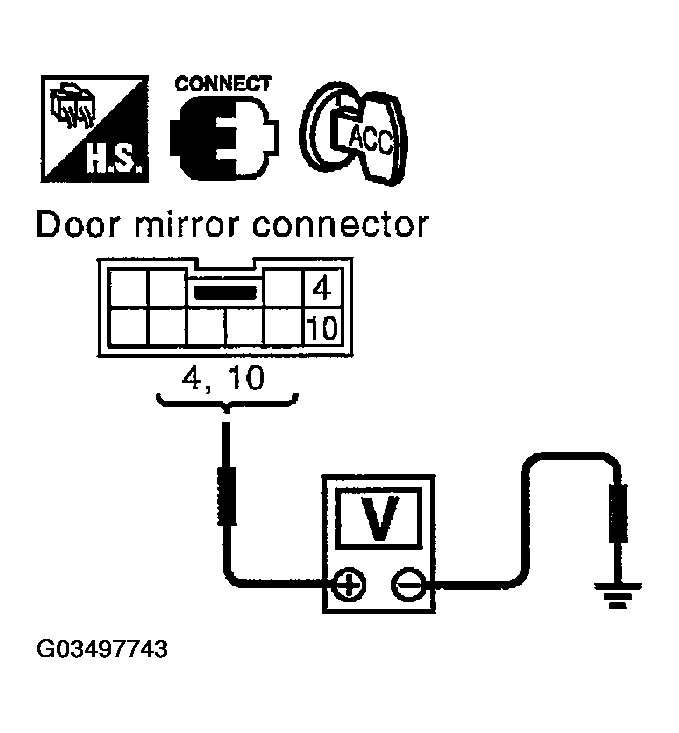

Fig 2: Checking Voltage Between Door Mirror (Passenger Side) Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Mirror sensor RH is OK.
NG: GO TO 3.

CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror (passenger side) connector.
3. Check continuity between automatic drive positioner control unit connector M20 terminal 33 (W/L), 41 (Y) and door mirror (passenger side) connector D32 terminal 3 (W/L), 9 (Y).
  33 (W/L) - 3 (W/L): Continuity should exist.

  41 (Y) - 9 (Y): Continuity should exist.
4. Check continuity between automatic drive positioner control unit connector M20 terminal 33 (W/L), 41 (Y) and ground.
  33 (W/L) - Ground: Continuity should not exist.

  41 (Y) - Ground: Continuity should not exist.

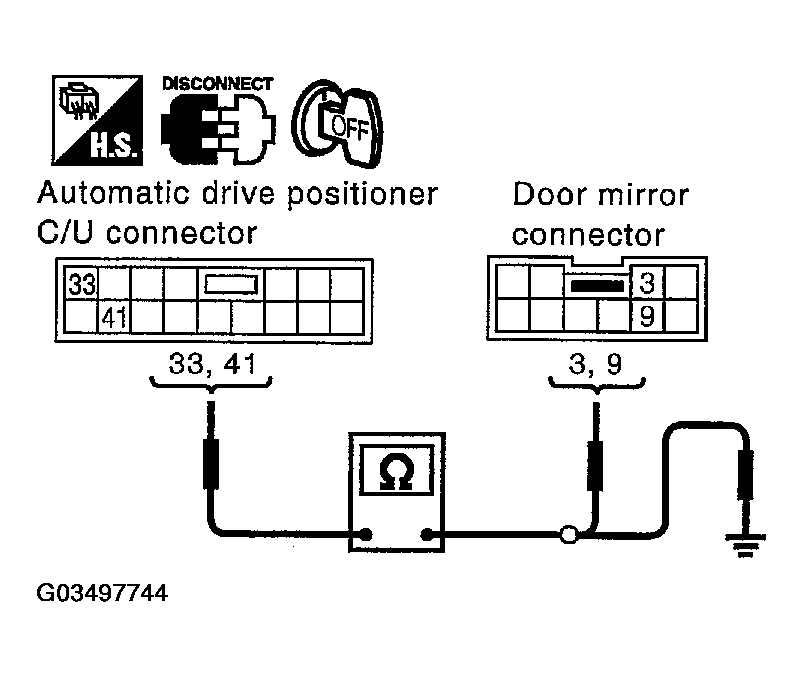

  Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector And Door Mirror (Passenger Side) Connector, And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).
CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M19 terminal 5 (R/B), 21 (L) and door mirror (passenger side) connector D32 terminal 4 (L), 10 (R/B).
  5 (R/B) -10 (R/B): Continuity should exist.

  21 (L) - 4 (L): Continuity should exist.
2. Check continuity between automatic drive positioner control unit connector M19 terminal 5 (R/B), 21 (L) and ground.
  5 (R/B) - Ground: Continuity should not exist.

  21 (L) - Ground: Continuity should not exist.

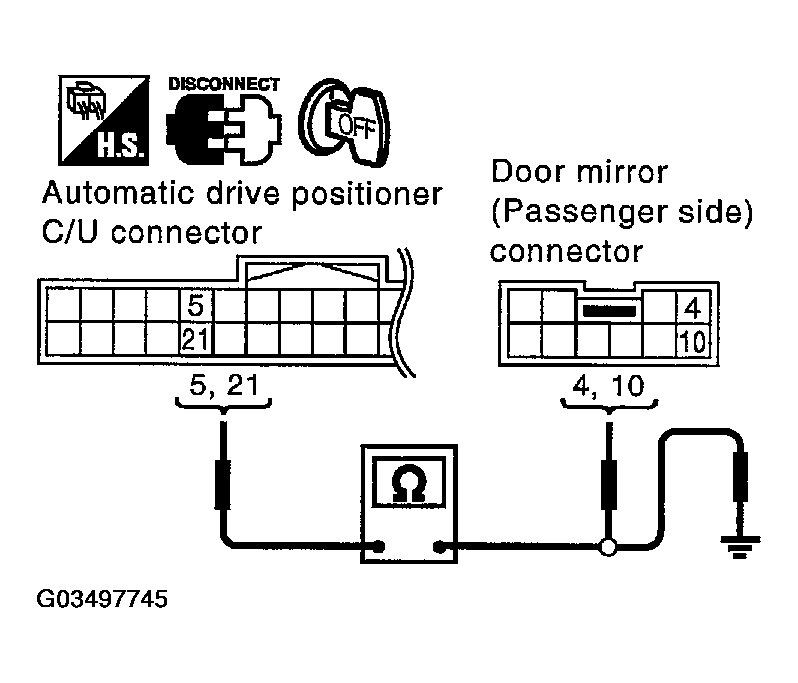

  Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace door mirror (passenger side).
2. NG: Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).
