Seat Memory Switch Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "SET SW, MEMORY SW1, MEMORY SW2", "SET SW" on the DATA MONITOR, operate the switch to check ON/OFF operation.

    SEAT MEMORY SWITCH CIRCUIT CHECK CHART

    Monitor item [OPERATION or UNIT] Contents
    MEMORY SW1 "ON/OFF" ON/OFF status judged from the seat memory switch 1 signal is displayed.
    MEMORY SW2 "ON/OFF" ON/OFF status judged from the seat memory switch 2 signal is displayed.
    SET SW "ON/OFF" ON/OFF status judged from the setting switch signal is displayed.

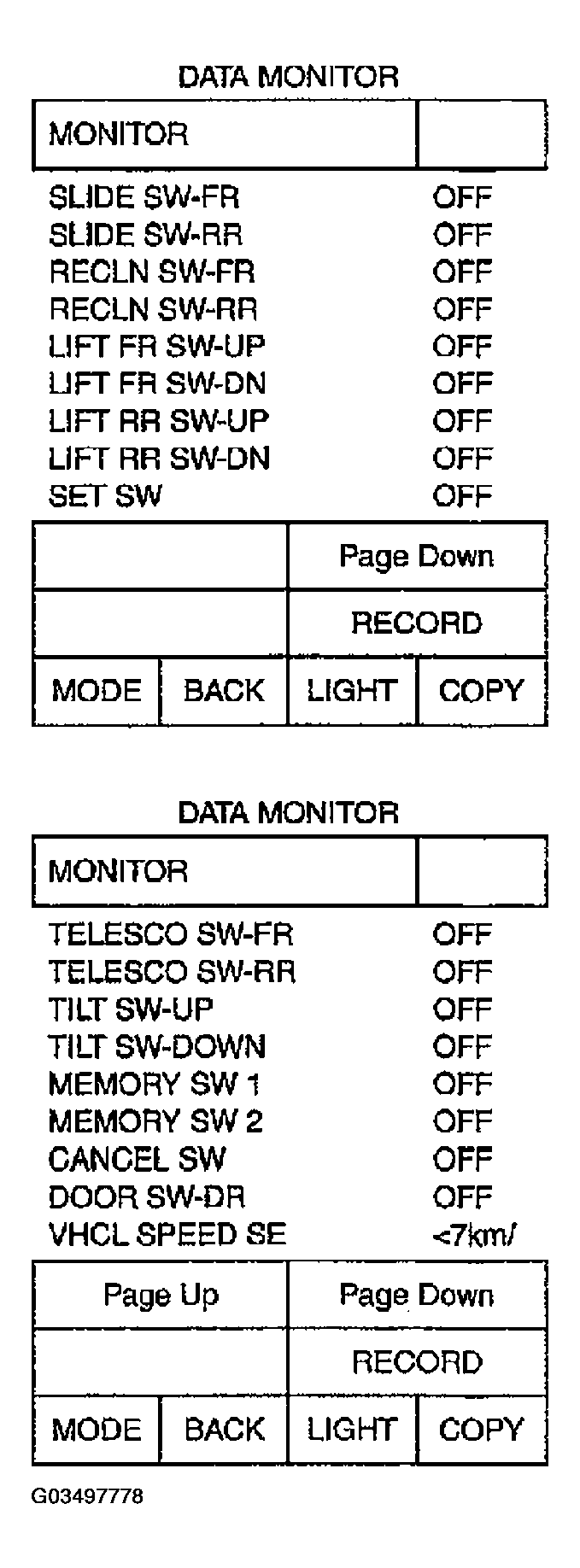

    Fig 1: Scan Tool Displaying DATA MONITOR
    G03497778Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    1. OK: Seat memory switch circuit is OK.
    2. NG: GO TO 2.
  2. CHECK SEAT MEMORY SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch connector.
    3. Check continuity between seat memory switch as follows.
      CONTINUITY CHECK CHART

      Terminal Condition Continuity
      1 4 Memory switch 1 ON Yes.
      Memory switch 1: OFF No.
      2 Memory switch 2: ON Yes.
      Memory switch 2: OFF No.
      3 Set switch: ON Yes.
      Set switch: OFF No.

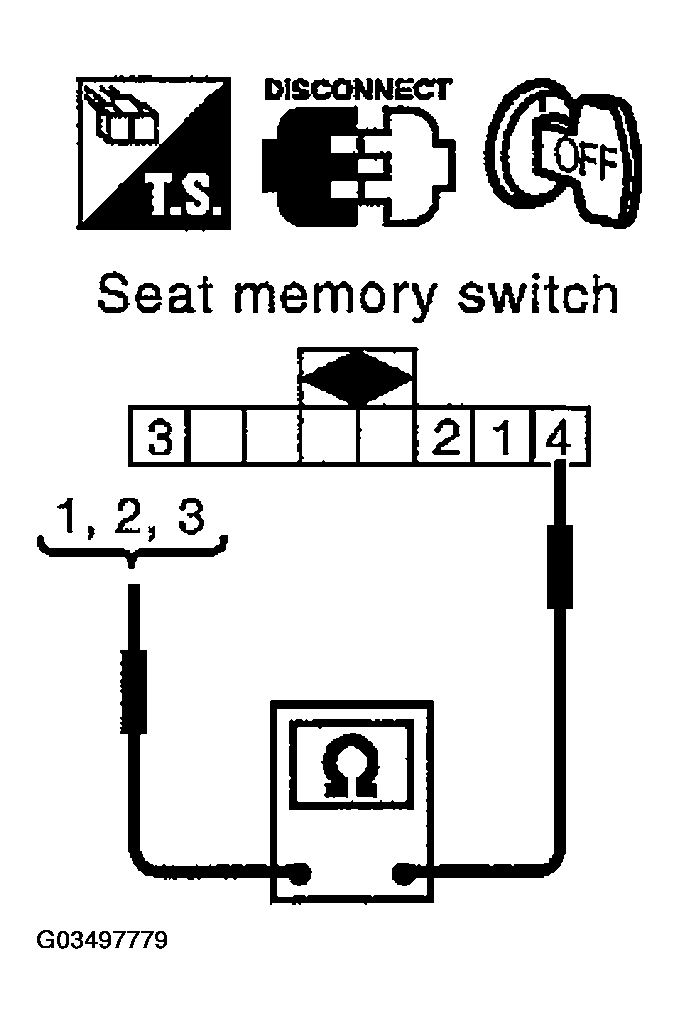

      Fig 2: Checking Continuity Between Seat Memory Switch
      G03497779Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Replace seat memory switch.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect automatic drive positioner control unit connector.
    2. Check continuity between automatic drive positioner control unit connector M19 terminals 9 (LG/B), 24 (R/Y), 25 (P/L) and seat memory switch connector D3 terminals 1 (LG/B), 2 (P/L), 3 (R/Y).

      9 (LG/B) - 1 (LG/B): Continuity should exist.

      24 (R/Y) - 3 (R/Y): Continuity should exist.

      25 (P/L) - 2 (P/L): Continuity should exist.

    3. Check continuity between automatic drive positioner control unit connector M19 terminals 9 (LG/B), 24 (R/Y), 25 (P/L) and ground.

      9 (LG/B) - Ground: Continuity should not exist.

      24 (R/Y) - Ground: Continuity should not exist.

      25 (P/L) - Ground: Continuity should not exist.

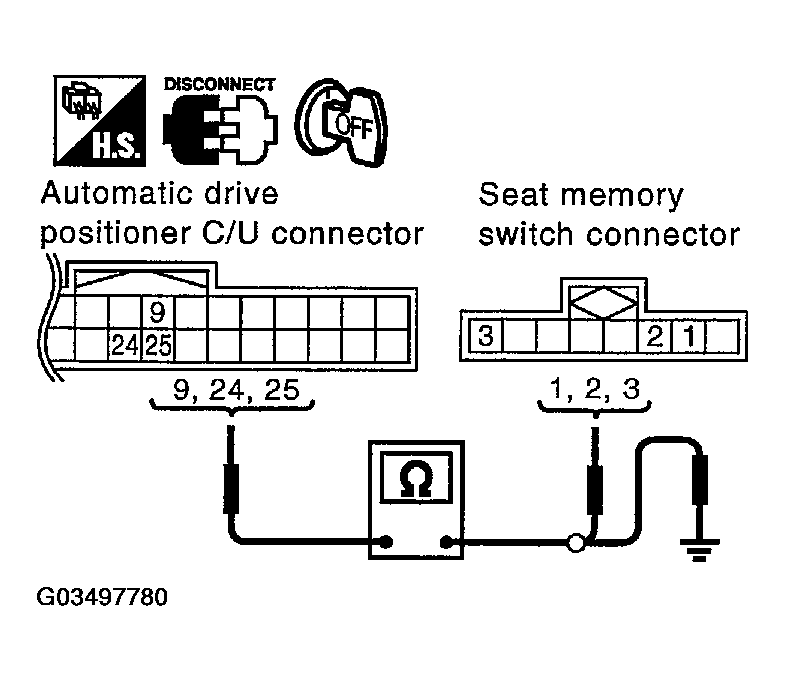

      Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector And Seat Memory Switch Connector, And Ground
      G03497780Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace harness between automatic drive positioner control unit and seat memory switch.
  4. CHECK SEAT MEMORY SWITCH GROUND CIRCUIT

    Check continuity between seat memory switch D3 terminal 4 (B) and ground.

    4 (B) - Ground: Continuity should exist.

    OK or NG

    1. OK: Replace automatic drive positioner control unit.
    2. NG: Repair or replace harness between seat memory switch and ground.

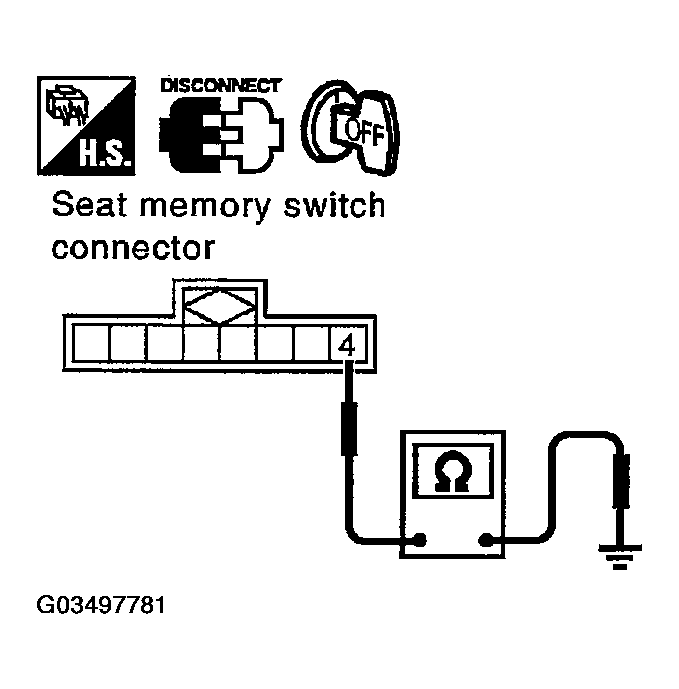

      Fig 4: Checking Continuity Between Seat Memory Switch D3 Terminal 4 (B) And Ground
      G03497781Courtesy of NISSAN MOTOR CO., U.S.A.
