Memory Operation

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Selecting the memorized position.

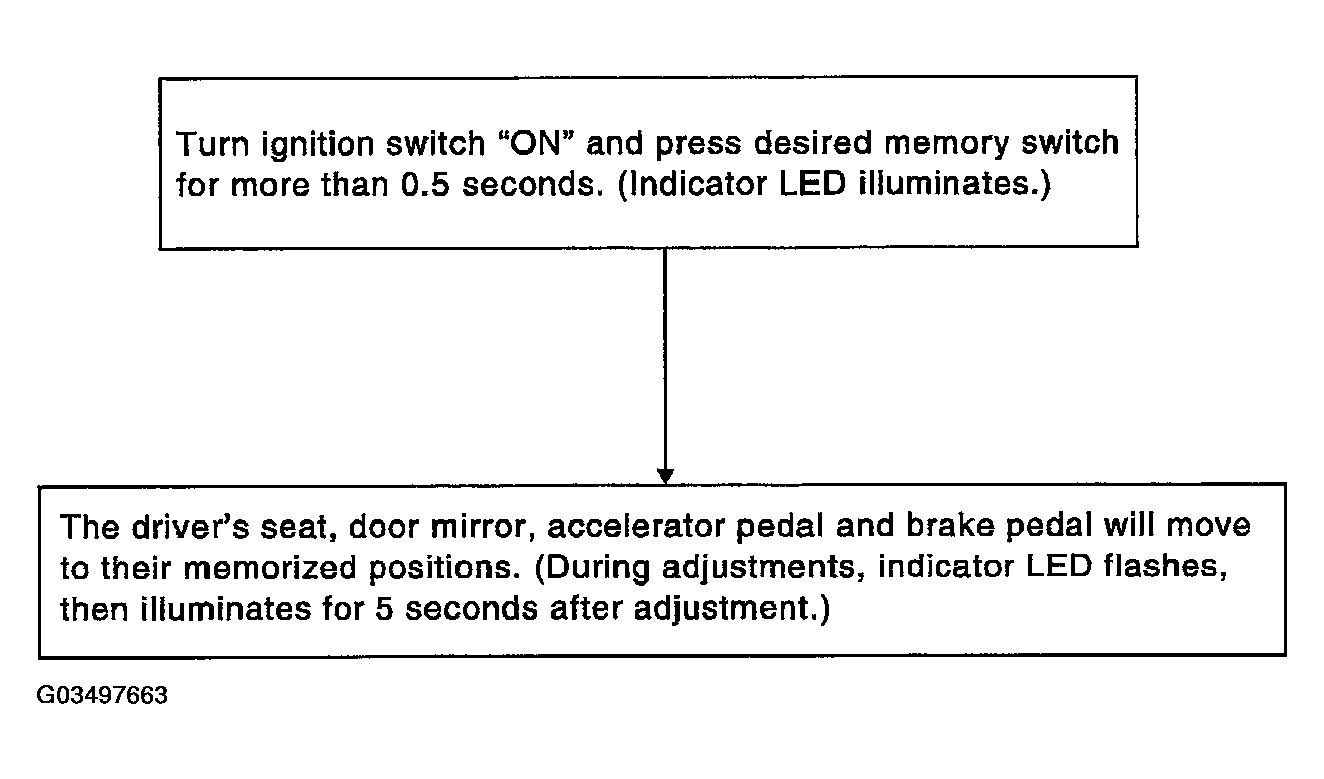

Fig 1: Memory Operation Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The driver's seat position and pedal adjustment functions (see DRIVER'S SEAT POSITION AND PEDAL ADJUSTMENT FUNCTIONS CHART ) operate simultaneously in the order of priority.

DRIVER'S SEAT POSITION AND PEDAL ADJUSTMENT FUNCTIONS CHART

Priority

Function

Priority

Function

Seat sliding, (door mirror LH/RH)⁽¹⁾

Seat lifter-FR

Pedal

Seat lifter-RR

Seat reclining

⁽¹⁾	In conjunction with sliding the seat, the door mirrors are positioned.
