Checking Memory Function

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the temperature to 32°C (90°F).
  2. Press OFF switch.
  3. Turn ignition switch OFF.
  4. Turn ignition switch ON.
  5. Press the AUTO switch.
  6. Confirm that the set temperature remains at previous temperature.
  7. Press OFF switch.

If NG, go to trouble diagnosis procedure for "MEMORY FUNCTION ".

If OK, continue with next check.

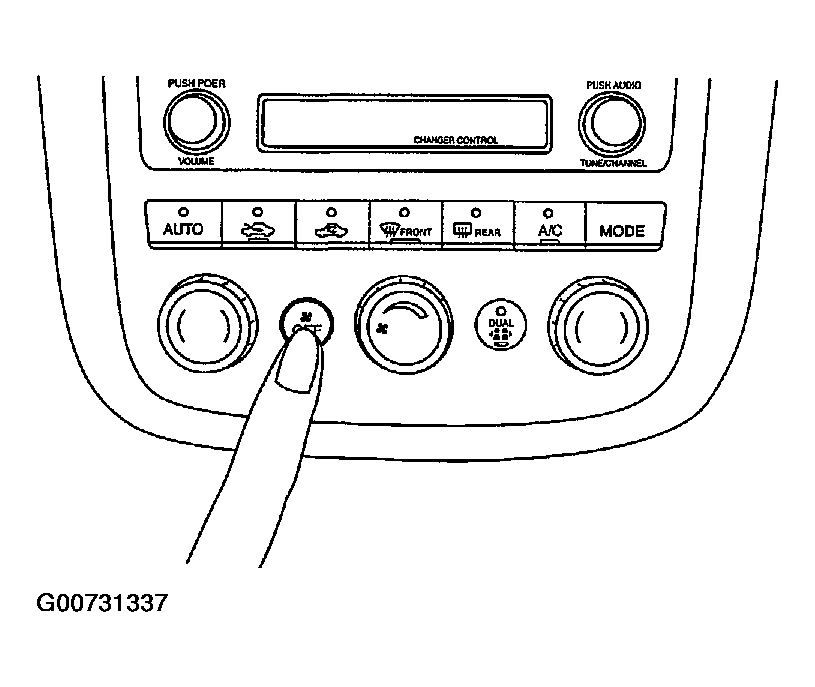

Fig 1: Checking Memory Function
G00731337Courtesy of NISSAN MOTOR CO., U.S.A.
