FOG LAMP ACTIVE TEST
With CONSULT-II
1. Select "IPDM E/R" on CONSULT-II. and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
2. Select "LAMPS" on "SELECT TEST ITEM" screen.
3. Touch "FOG" screen.
4. Make sure fog lamp operation.
  Fog lamp should operate.
Without CONSULT-II
1. Start auto active test. .
2. Make sure fog lamp operation.
  Fog lamp should operate.

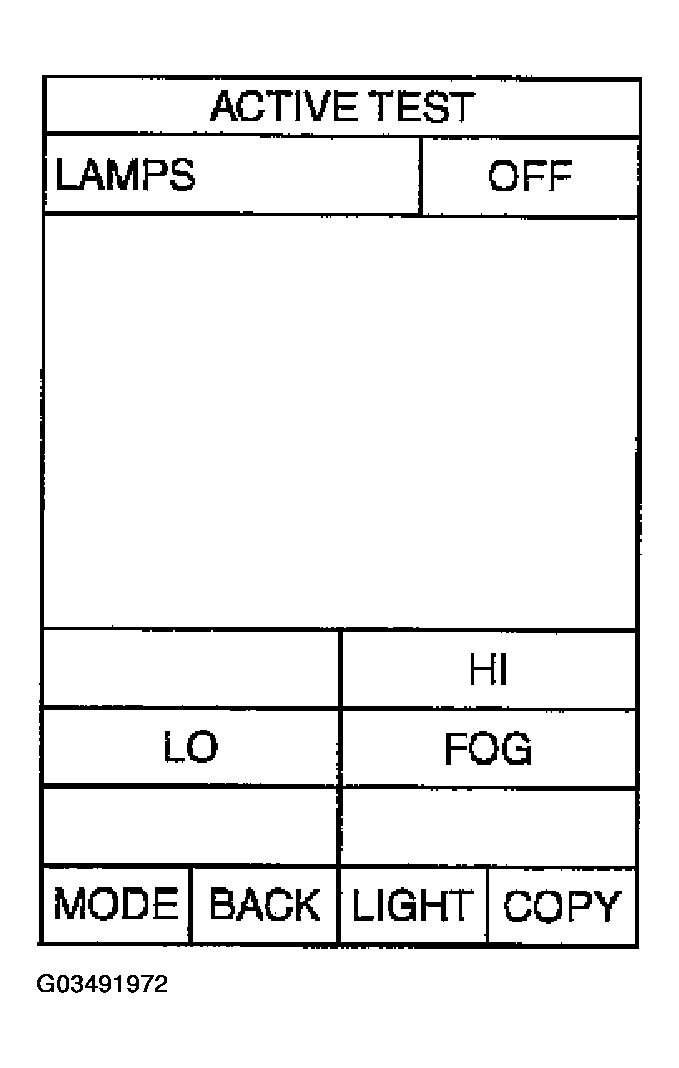

  Fig 1: Displaying ACTIVE TEST
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 2.

CHECK FRONT FOG LAMP INPUT SIGNAL

With CONSULT-II

Turn ignition switch OFF.
Disconnect front combination lamp RH and LH connectors.
Select "IPDM E/R" on CONSULT-II. and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
Select "LAMPS" on "SELECT TEST ITEM" screen.
Touch "FOG" screen.

When fog lamp is operating, check voltage between front fog lamp RH and LH harness connector and ground.

VOLTAGE CHECK CHART

Terminals				Voltage
(+)			(-)
Connector		Terminal (Wire color)	(-)
RH	E94	1 (G/W)	Ground	Battery voltage
LH	E92	1 (W/R)	Ground	Battery voltage

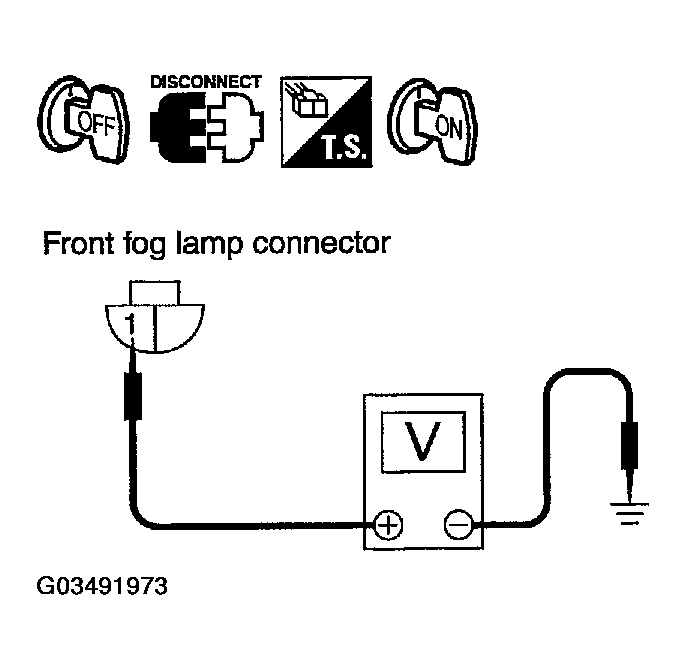

Fig 2: Checking Voltage Between Front Fog Lamp RH And LH Harness Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.
Disconnect front fog lamp RH and LH connectors.
Start auto active test. .

When fog lamp is operating, check voltage between front fog lamp RH and LH harness connectors and ground.

VOLTAGE CHECK CHART

Terminals				Voltage
(+)			(-)
Connector		Terminal (Wire color)	(-)
RH	E94	1 (G/W)	Ground	Battery voltage
LH	E92	1 (W/R)	Ground	Battery voltage

OK or NG

OK: GO TO 4.
NG: GO TO 3.

CHECK FRONT FOG LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E8 terminal 36 (G/W) and front fog lamp RH harness connector E94 terminal 1 (G/W).
  36 (G/W) - 1 (G/W): Continuity should exist.
4. Check continuity between IPDM E/R harness connector E8 terminal 37 (W/R) and front fog lamp LH harness connector E92 terminal 1 (W/R).
  37 (W/R) - 1 (W/R): Continuity should exist.

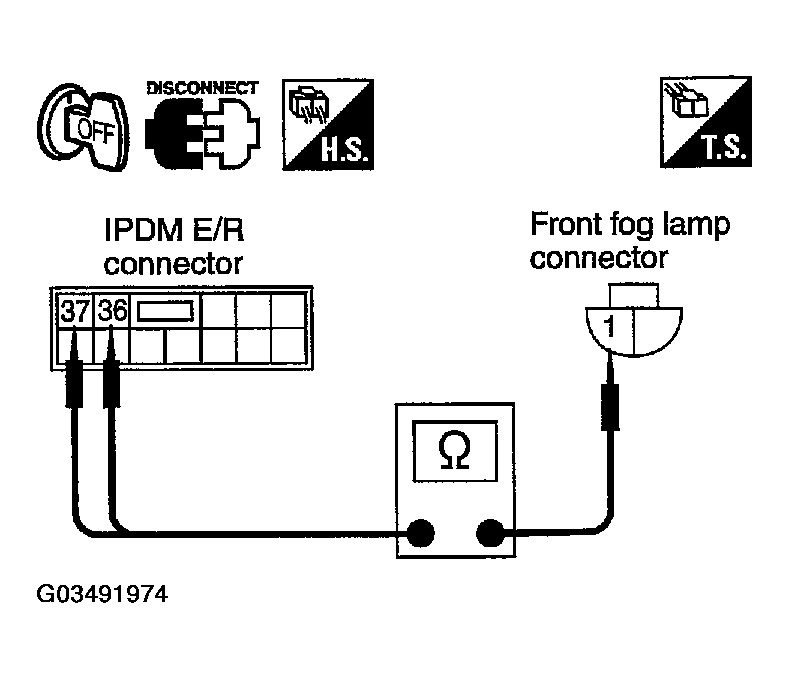

  Fig 3: Checking Continuity Between IPDM E/R Harness Connector And Front Fog Lamp LH Harness Connect
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace IPDM E/R.
2. NG: Repair harness or connector.
CHECK FRONT FOG LAMP GROUND
1. Check continuity between front fog lamp RH harness connector E94 terminal 2 (B) and ground.
  2 (B) - Ground: Continuity should exist.
2. Check continuity between front fog lamp LH harness connector E92 terminal 2 (B) and ground.
  2 (B) - Ground: Continuity should exist.
OK or NG
1. OK: Check front fog lamp bulbs.
2. NG: Repair harness or connector.

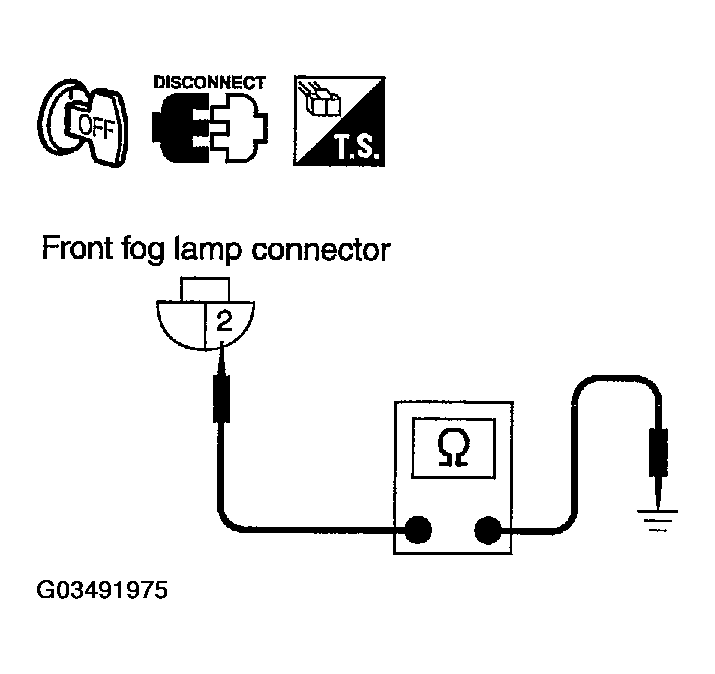

  Fig 4: Checking Continuity Between Front Fog Lamp Harness Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SELF-DIAGNOSIS
Select "BCM" on CONSULT-II. Carry out "BCM" self-diagnosis.

Displayed results of self-diagnosis
1. No malfunction detected: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM " .
2. CAN communications or CAN system: Check BCM CAN communication system. Refer to "CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) " .

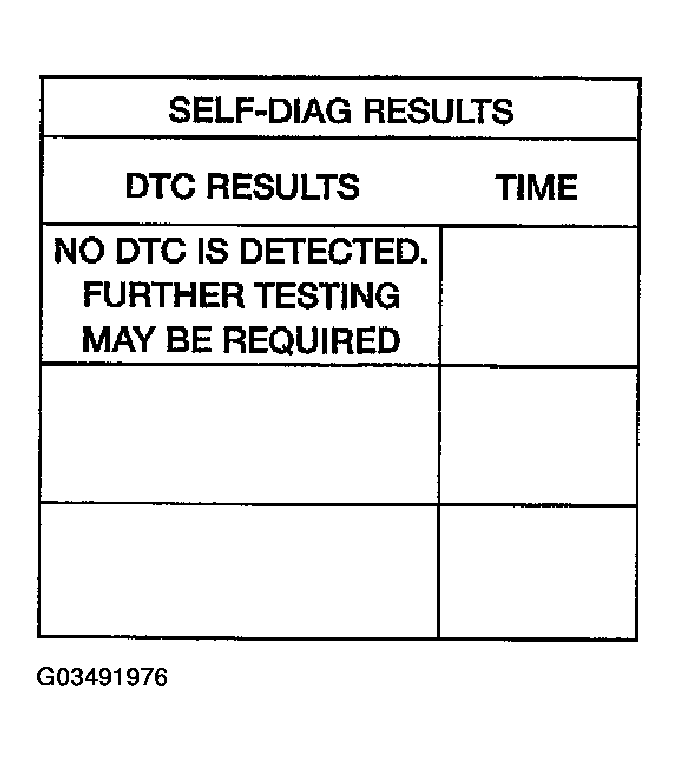

  Fig 5: Displaying SELF-DIAG RESULTS
  Courtesy of NISSAN MOTOR CO., U.S.A.
