Bulb Replacement

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Insert a screwdriver in the chink between lens and door trim, and remove the lens.
  3. Remove the bulb.

    Step lamp: 12V - 2.7W

  4. Install in the reverse order of removal.

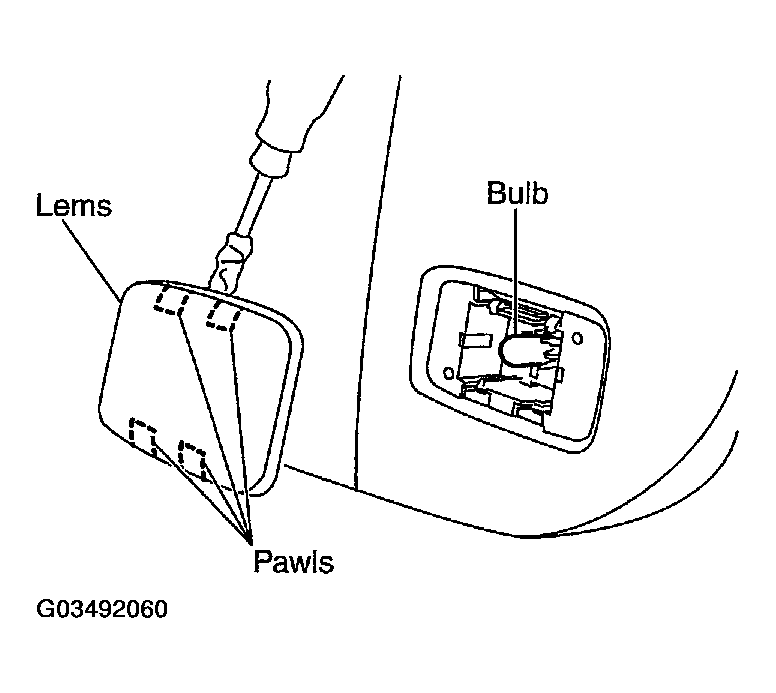

    Fig 1: Inserting A Screwdriver In Chink Between Lens And Door Trim
    G03492060Courtesy of NISSAN MOTOR CO., U.S.A.
