Intelligent Power Distribution Module

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Intelligent Power Distribution Module (IPDM) is located on right side of engine compartment. See Fig 1.

Fig 1: Locating IPDM
G00103838Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying IPDM Fuses & Relays
G00103836Courtesy of NISSAN MOTOR CO., U.S.A.

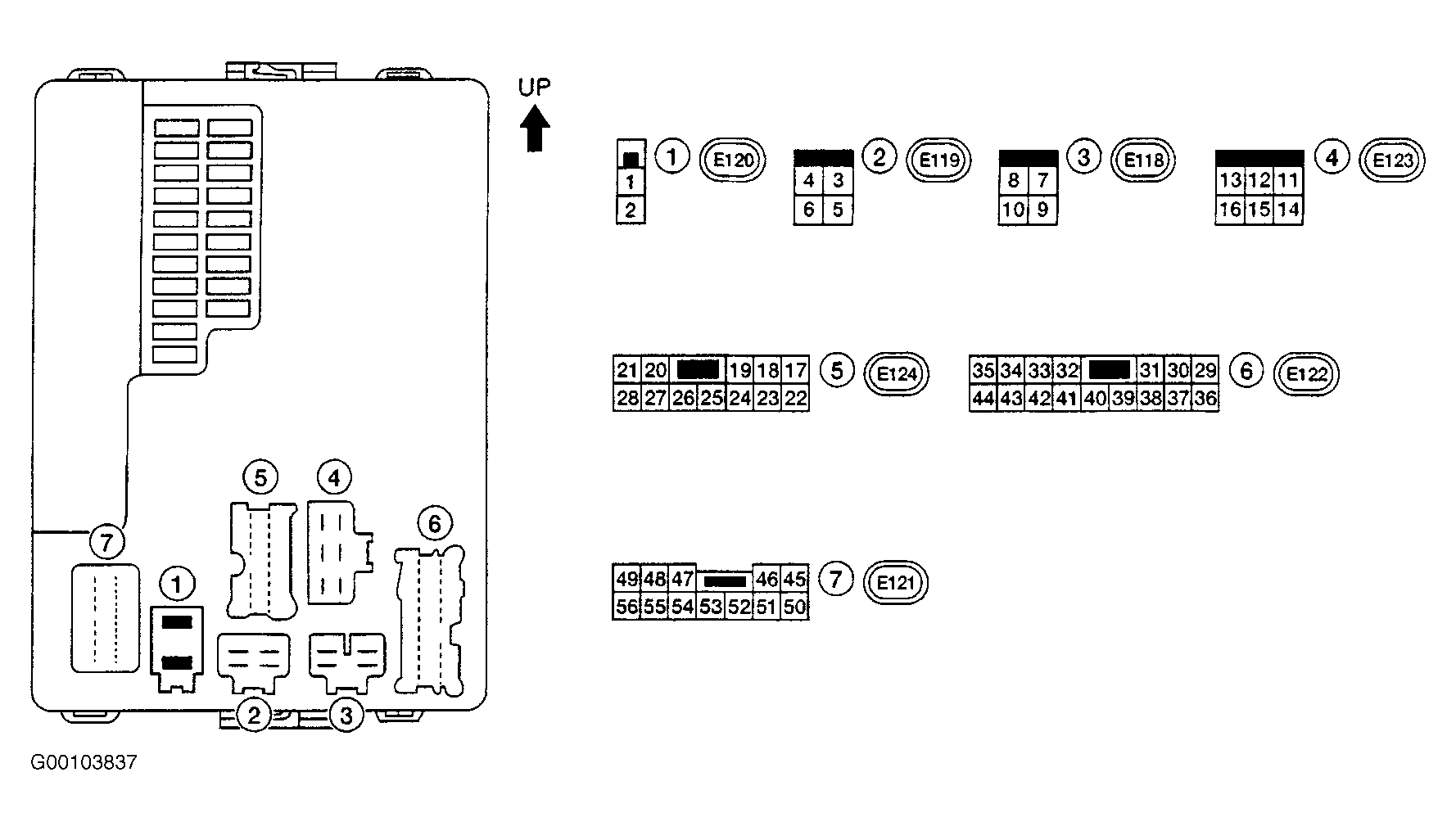

Fig 3: Identifying IPDM Connectors & Terminals
G00103837Courtesy of NISSAN MOTOR CO., U.S.A.
