Component Locations

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

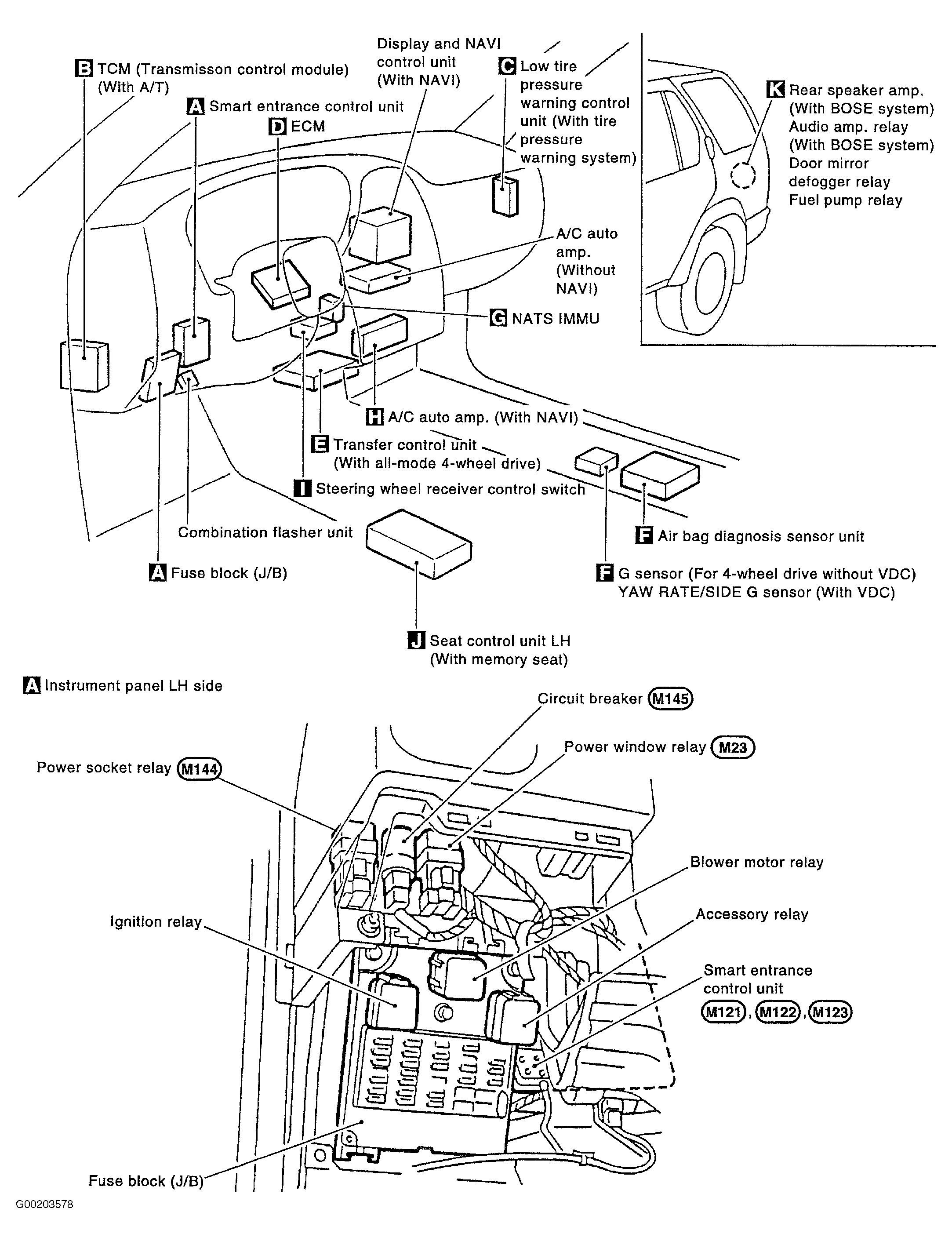

Fig 1: Identifying Control Units & Fuse Block (J/B) Location & Components

Courtesy of NISSAN MOTOR CO., U.S.A.

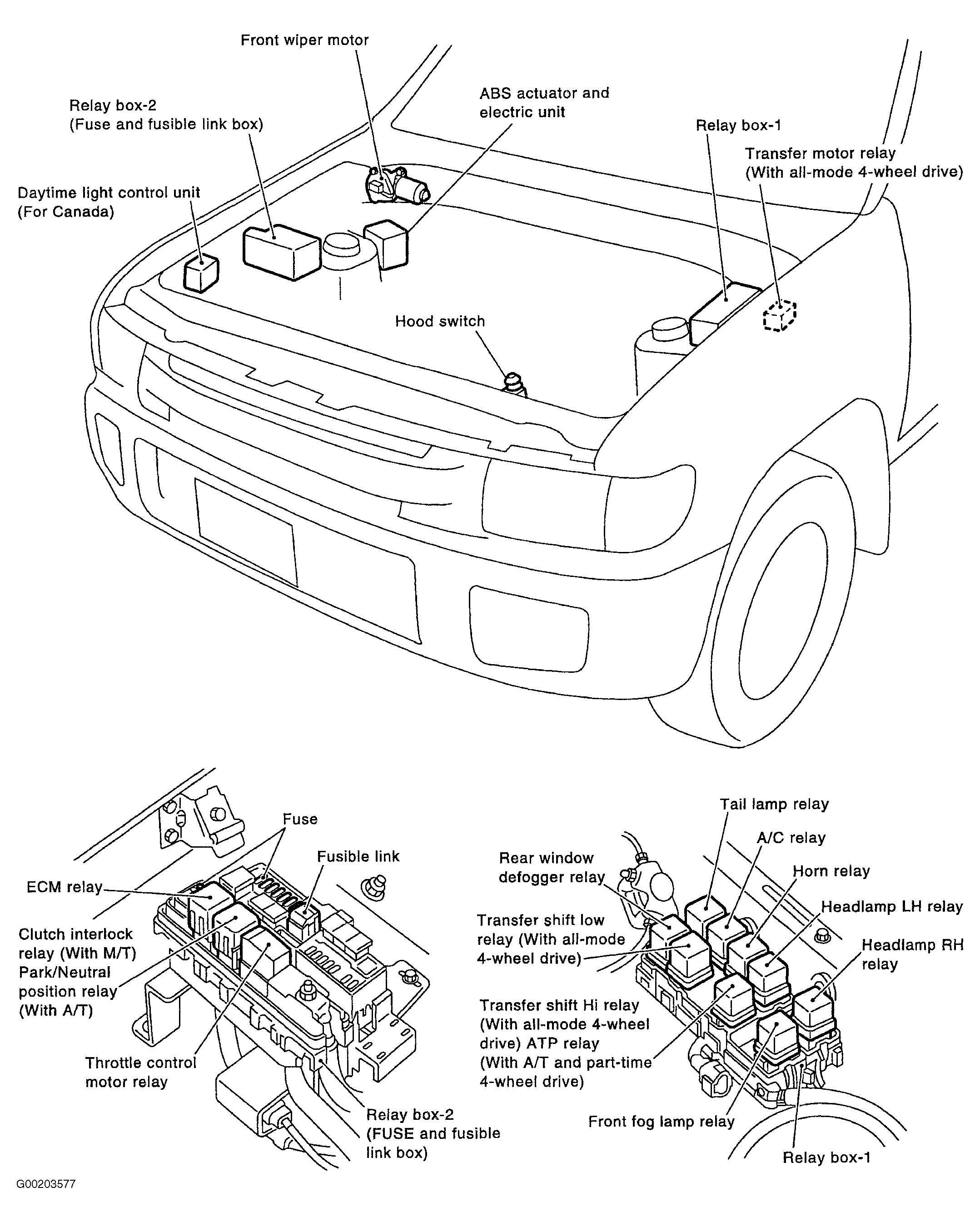

Fig 2: Identifying Fuse & Fusible Link Box Location & Components

Courtesy of NISSAN MOTOR CO., U.S.A.

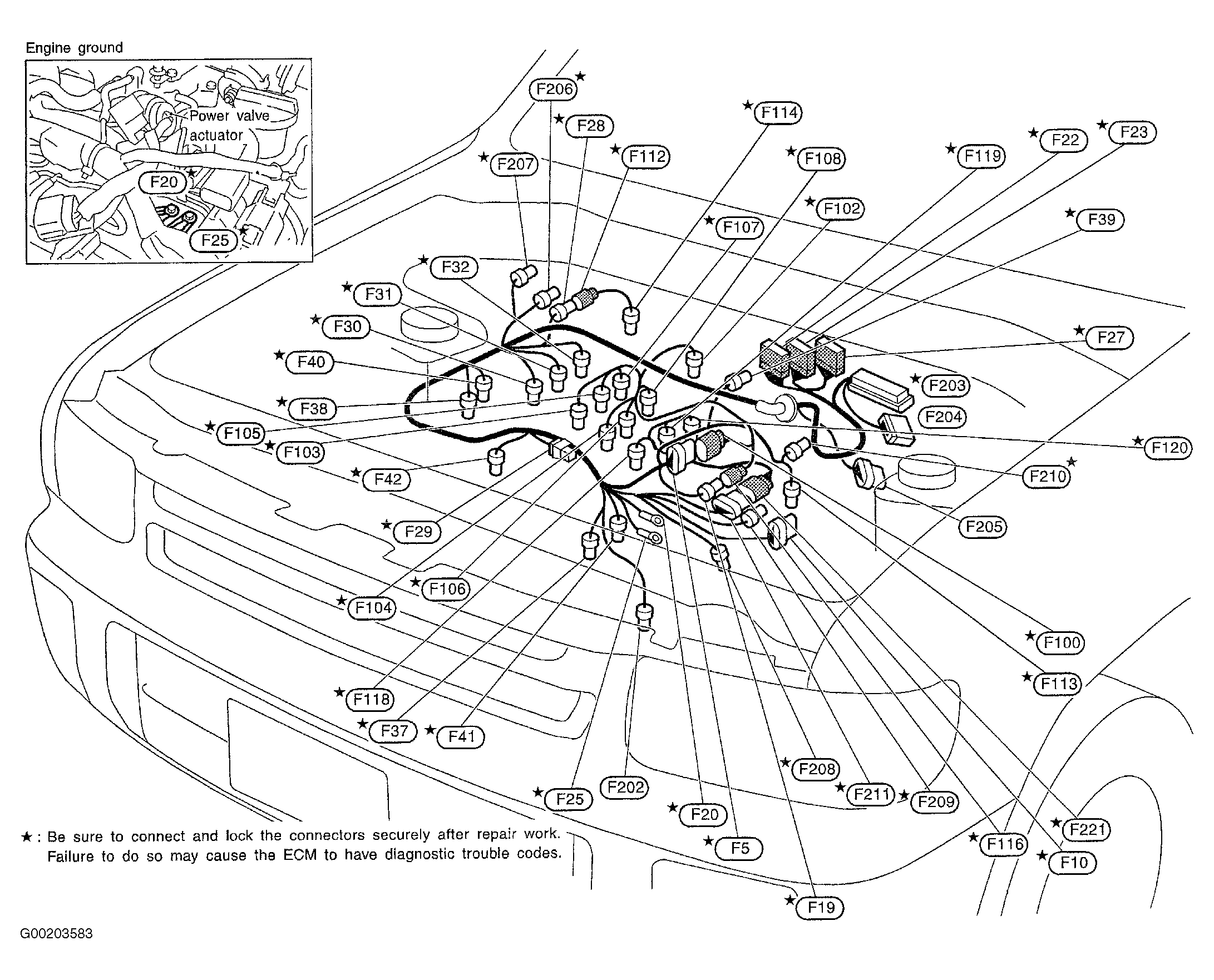

Fig 3: Identifying Engine Control Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

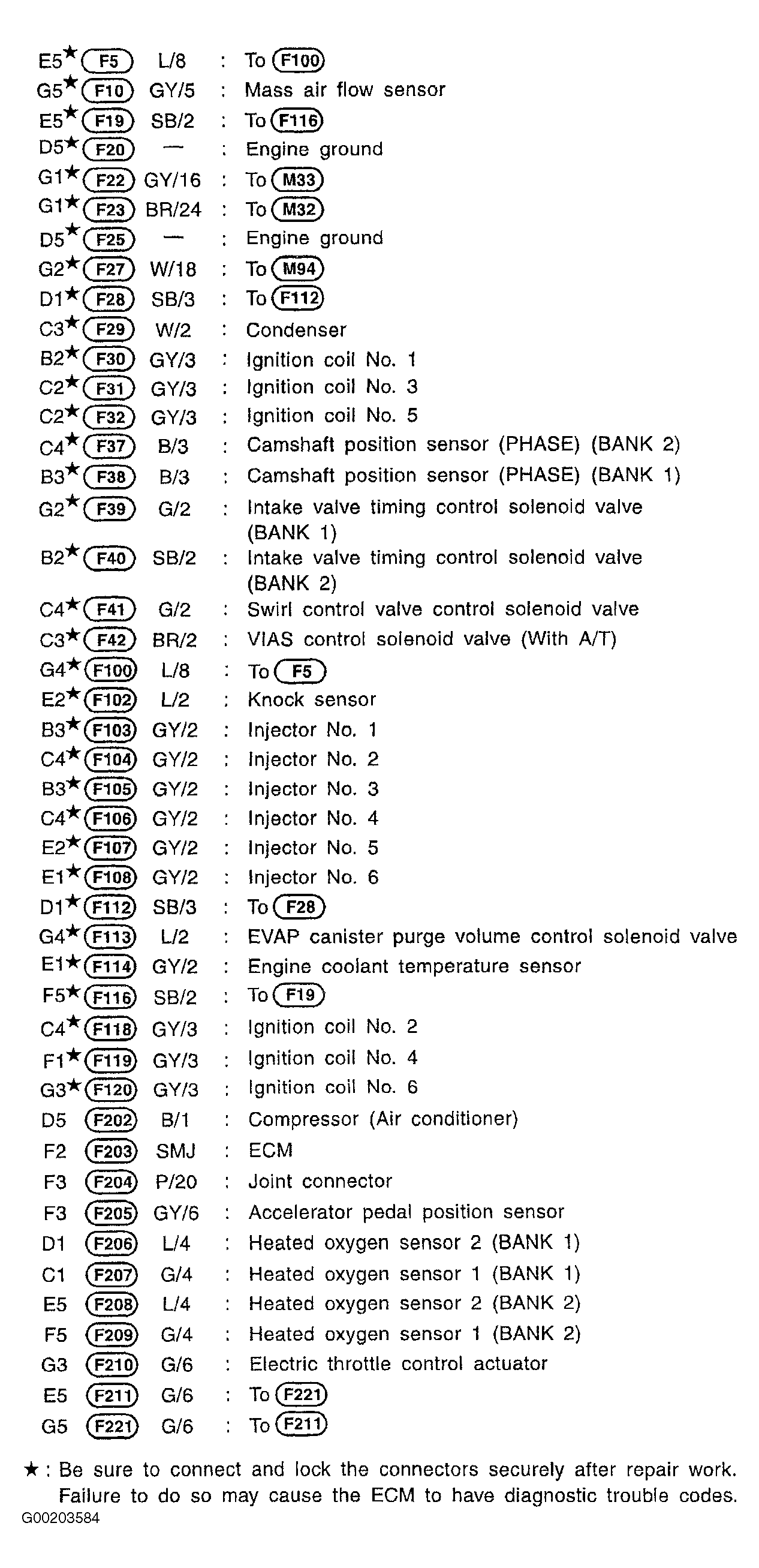

Fig 4: Identifying Engine Control Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

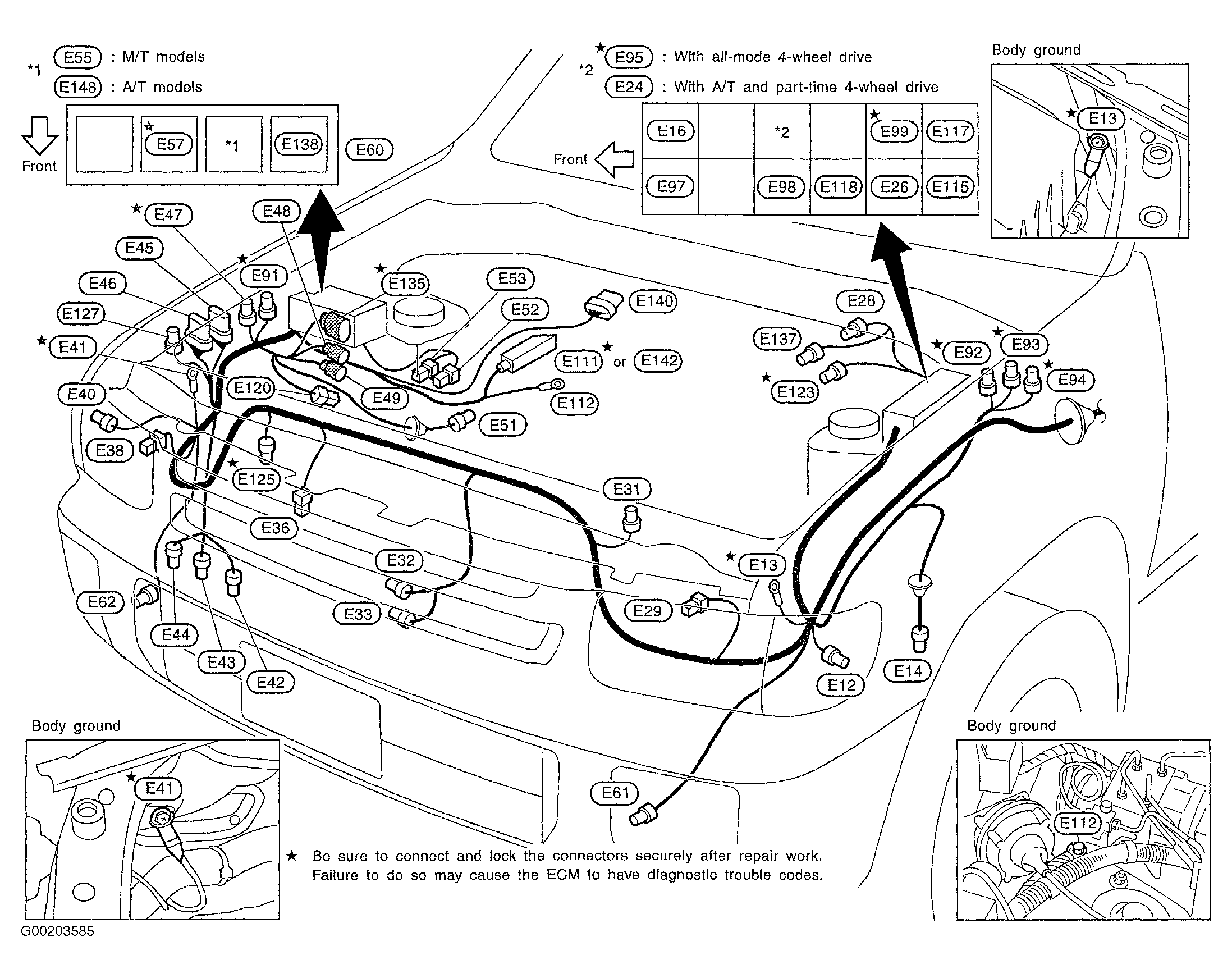

Fig 5: Identifying Engine Compartment Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

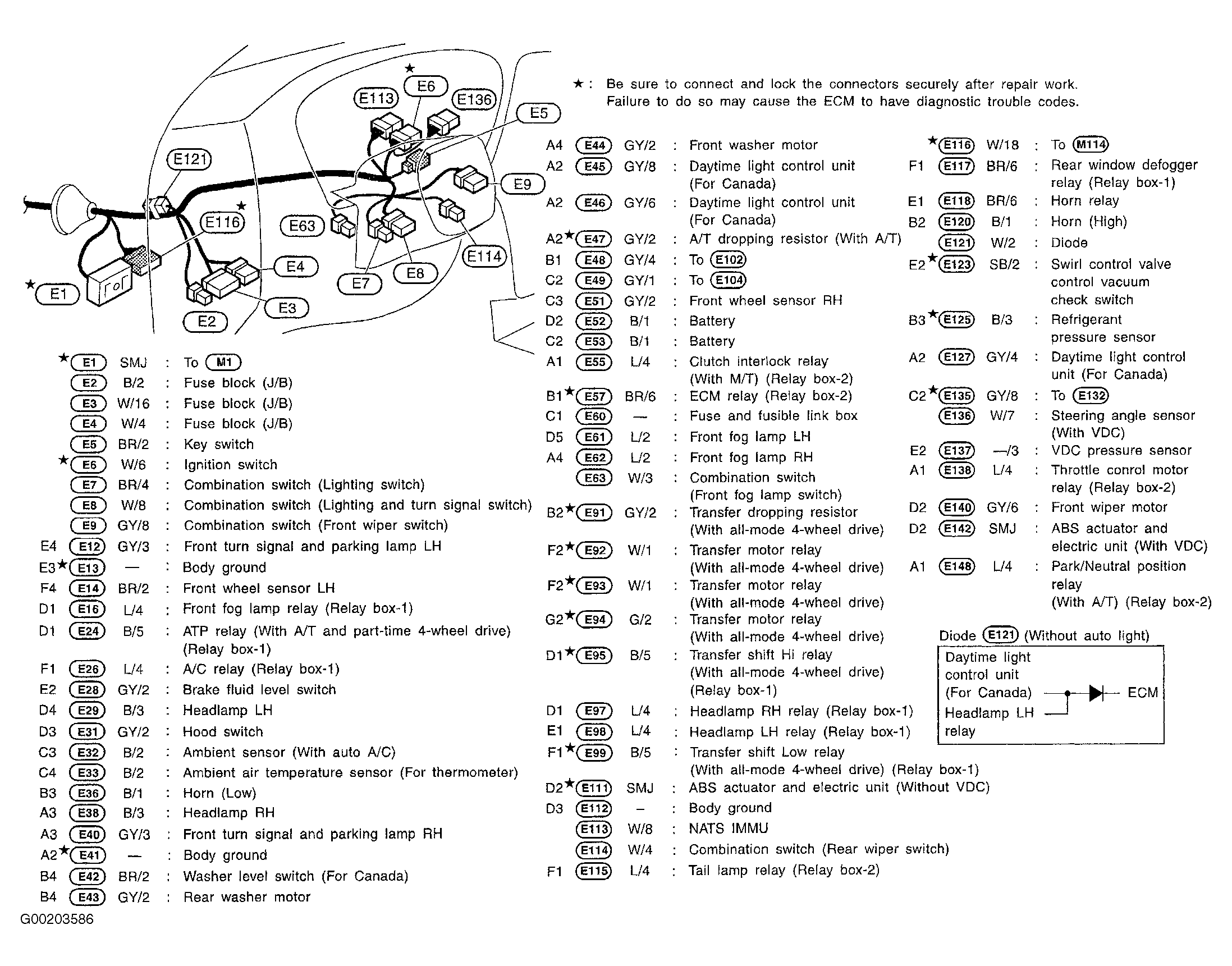

Fig 6: Identifying Engine Compartment Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine & Transmission Harness Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

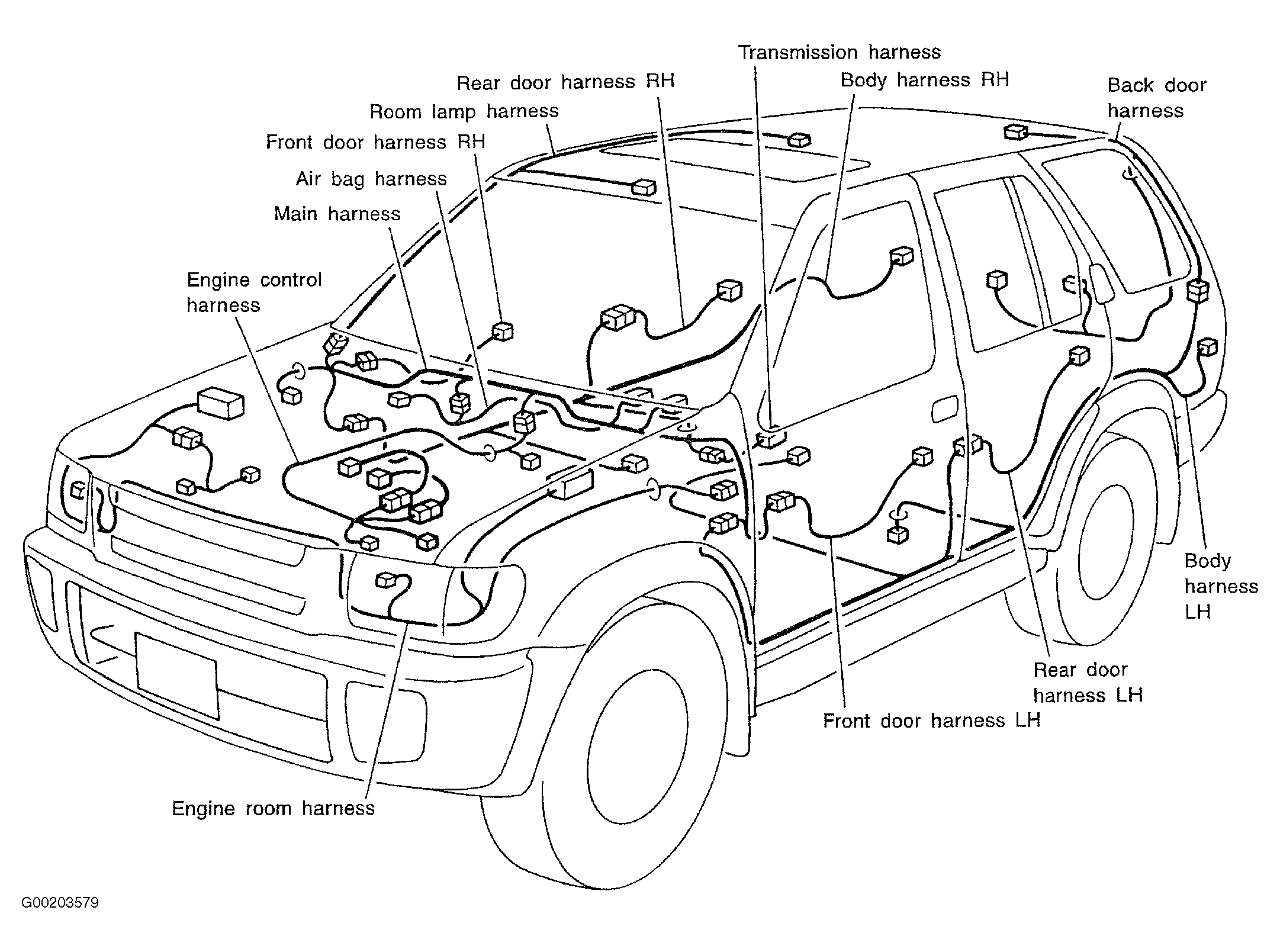

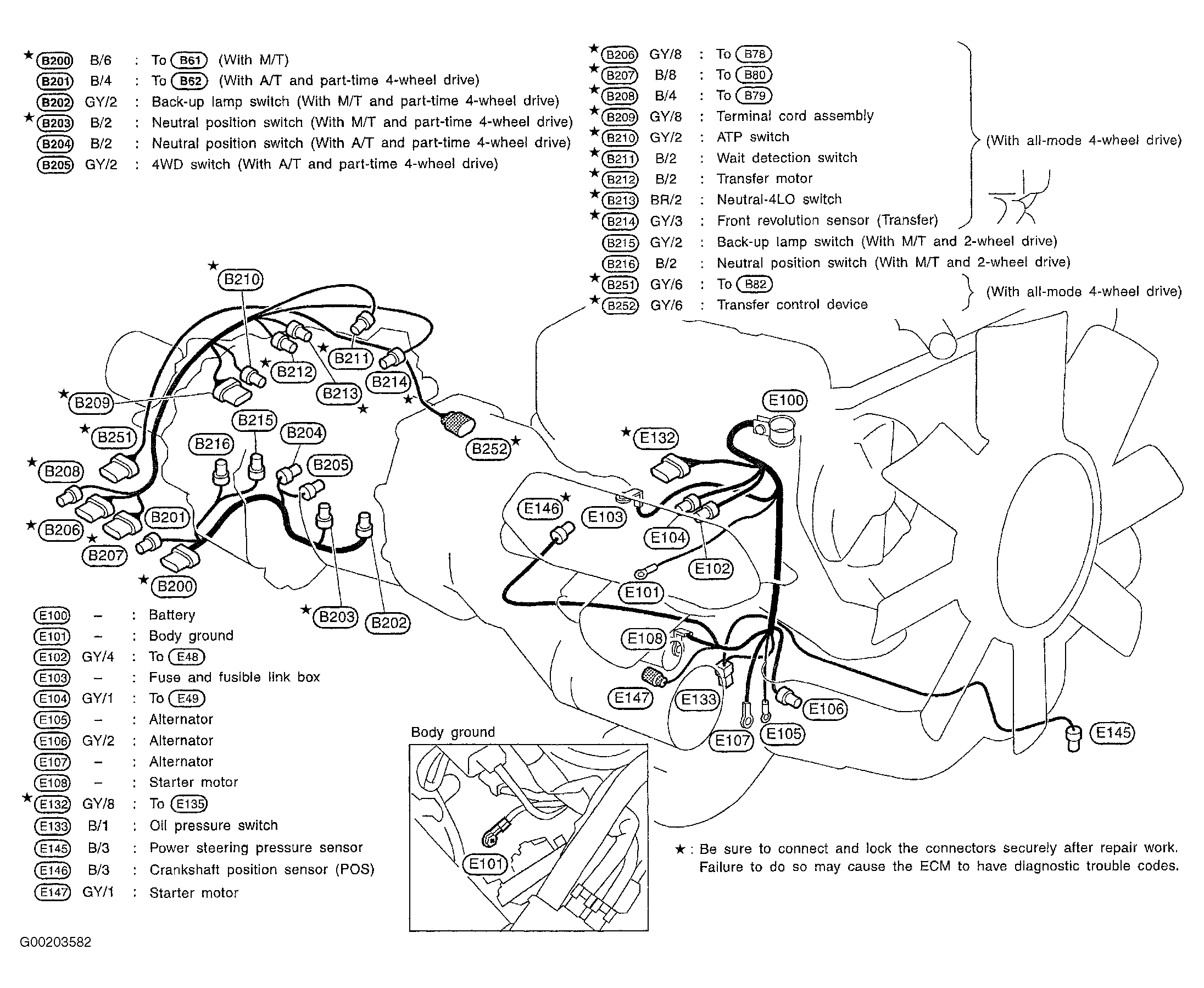

Fig 8: Identifying Harness Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

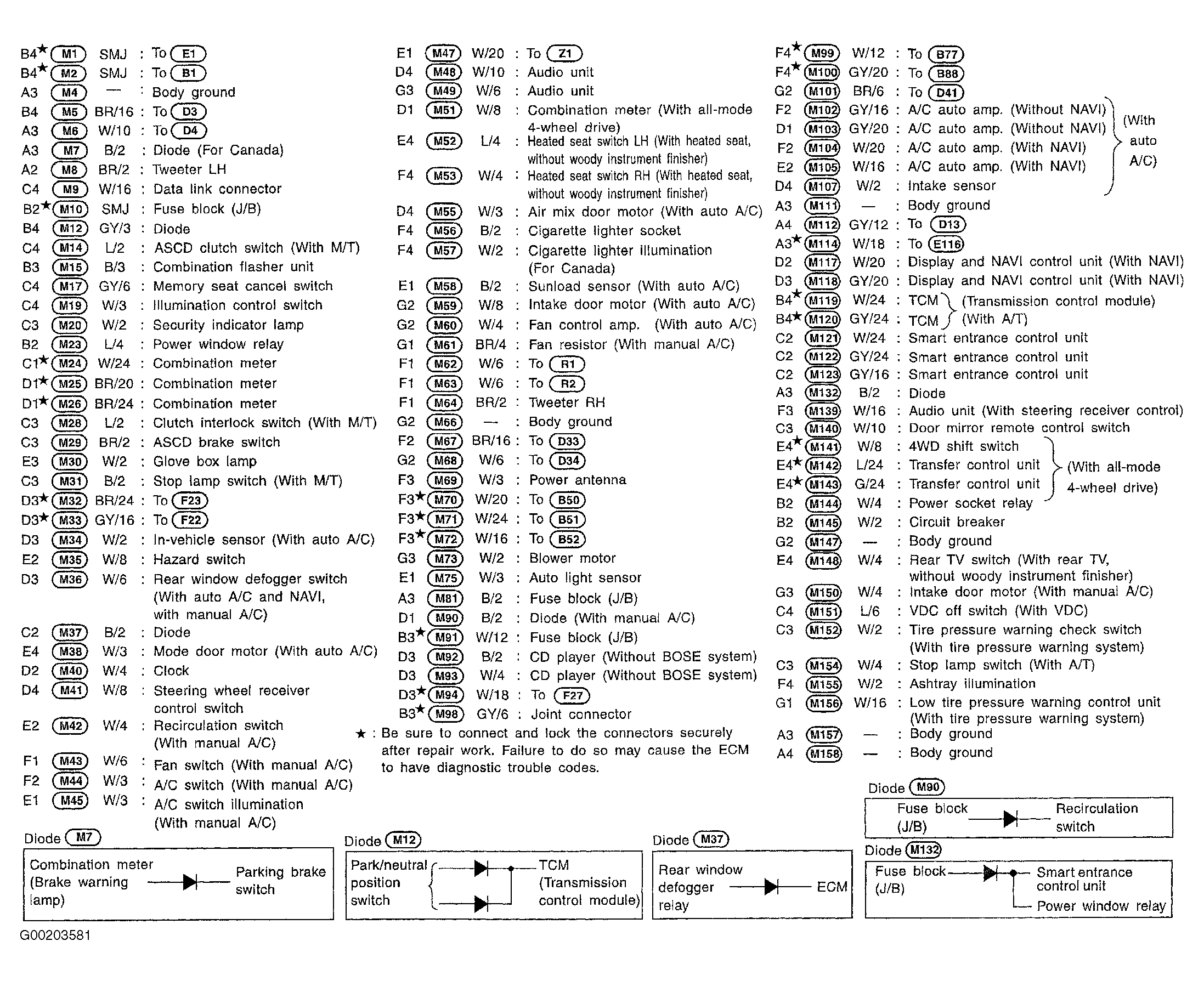

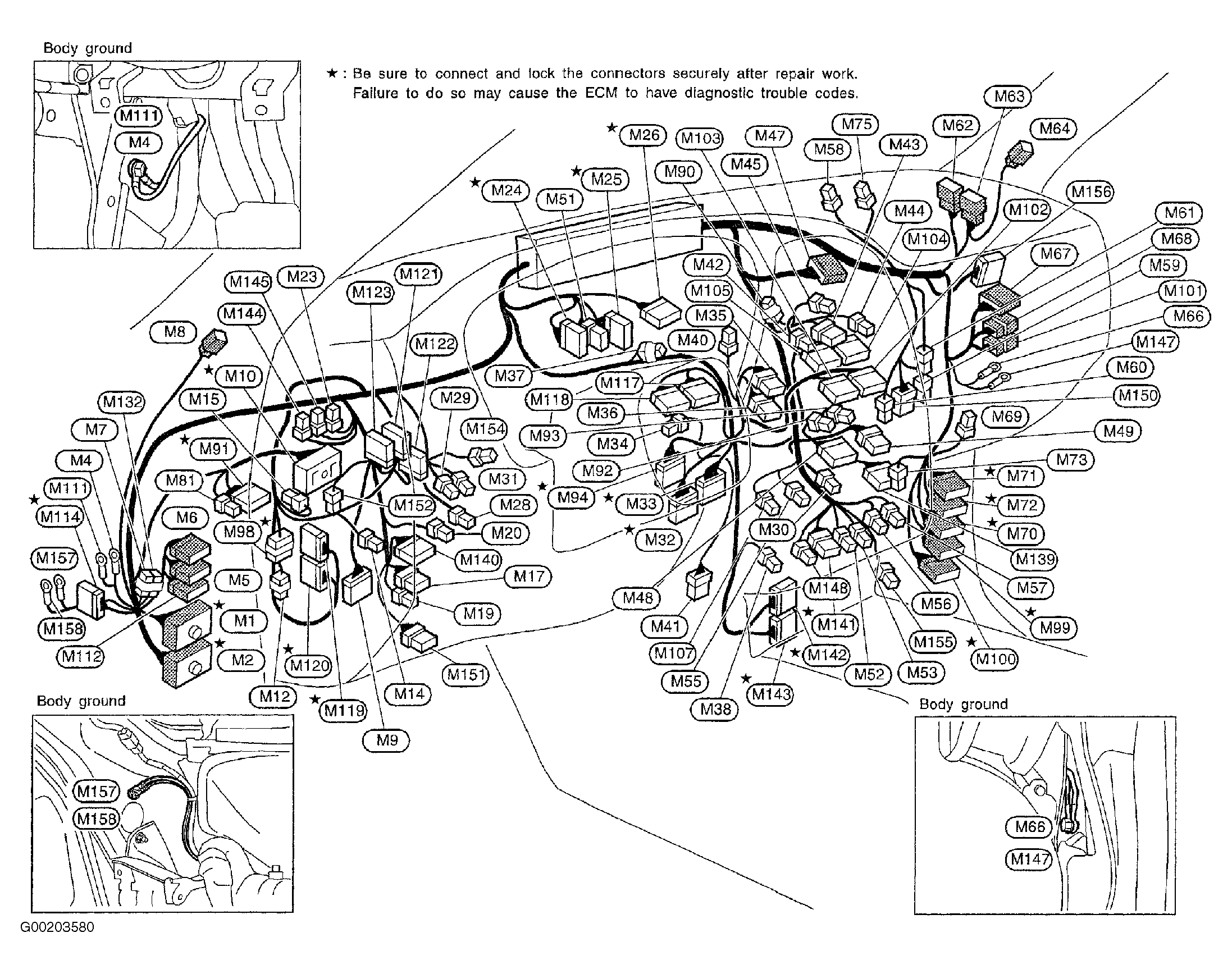

Fig 9: Identifying Main Harness Connector Locations (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Main Harness Connector Locations (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
