Reference values are normal values for components monitored by scan tool. For scan tool reference values, see Fig 1-Fig 4
.

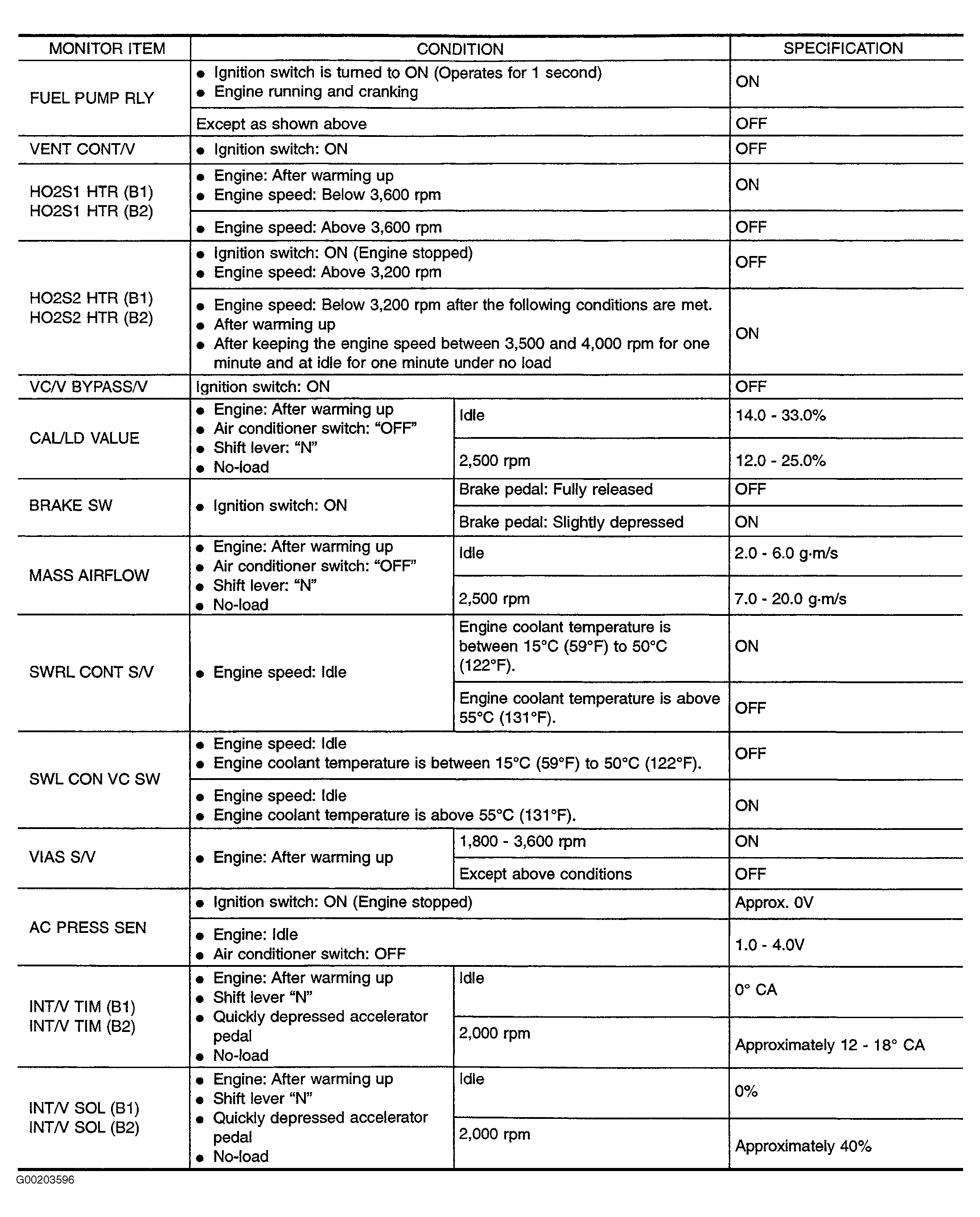

Fig 1: Data Monitor Mode Reference Values (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

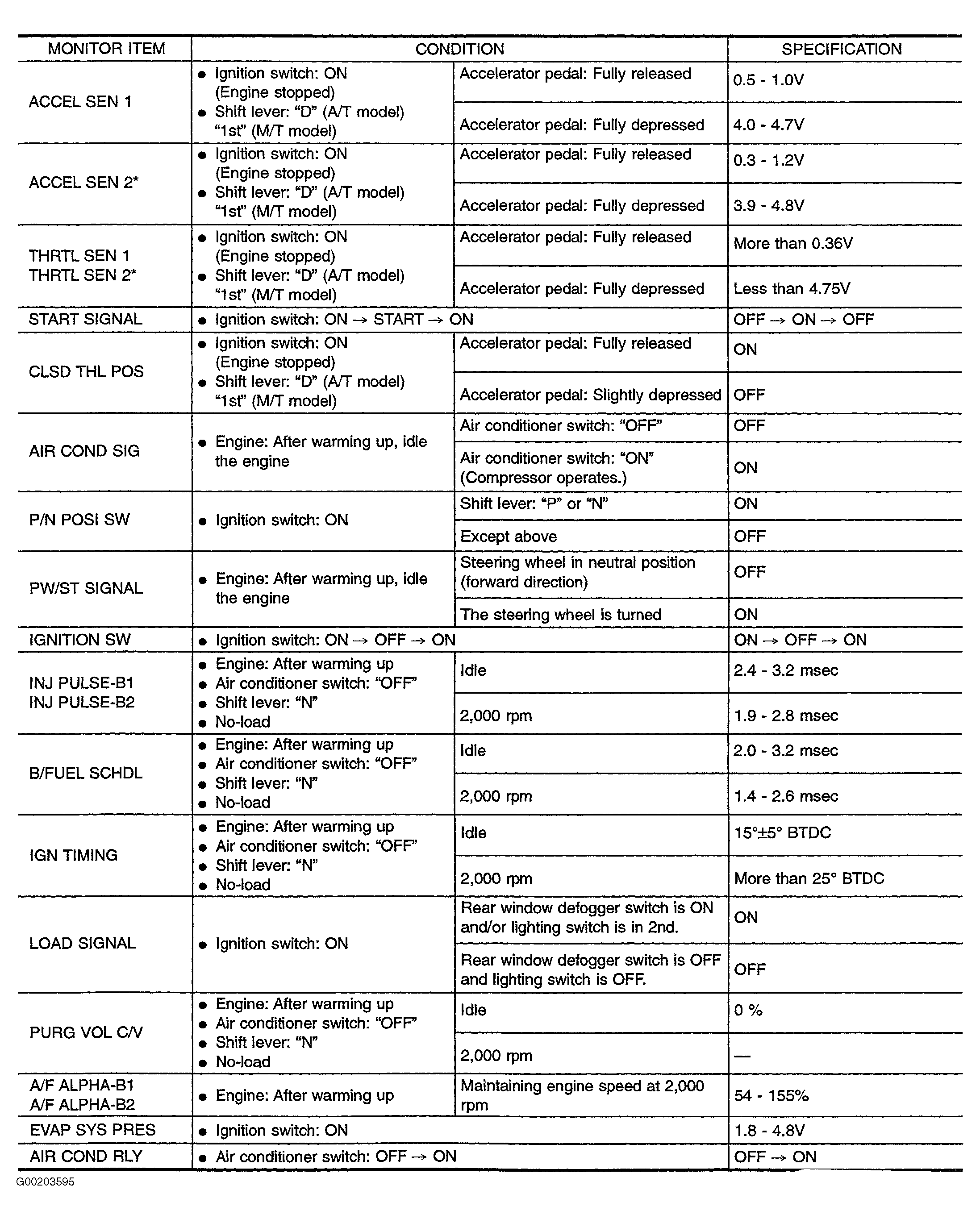

Fig 2: Data Monitor Mode Reference Values (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

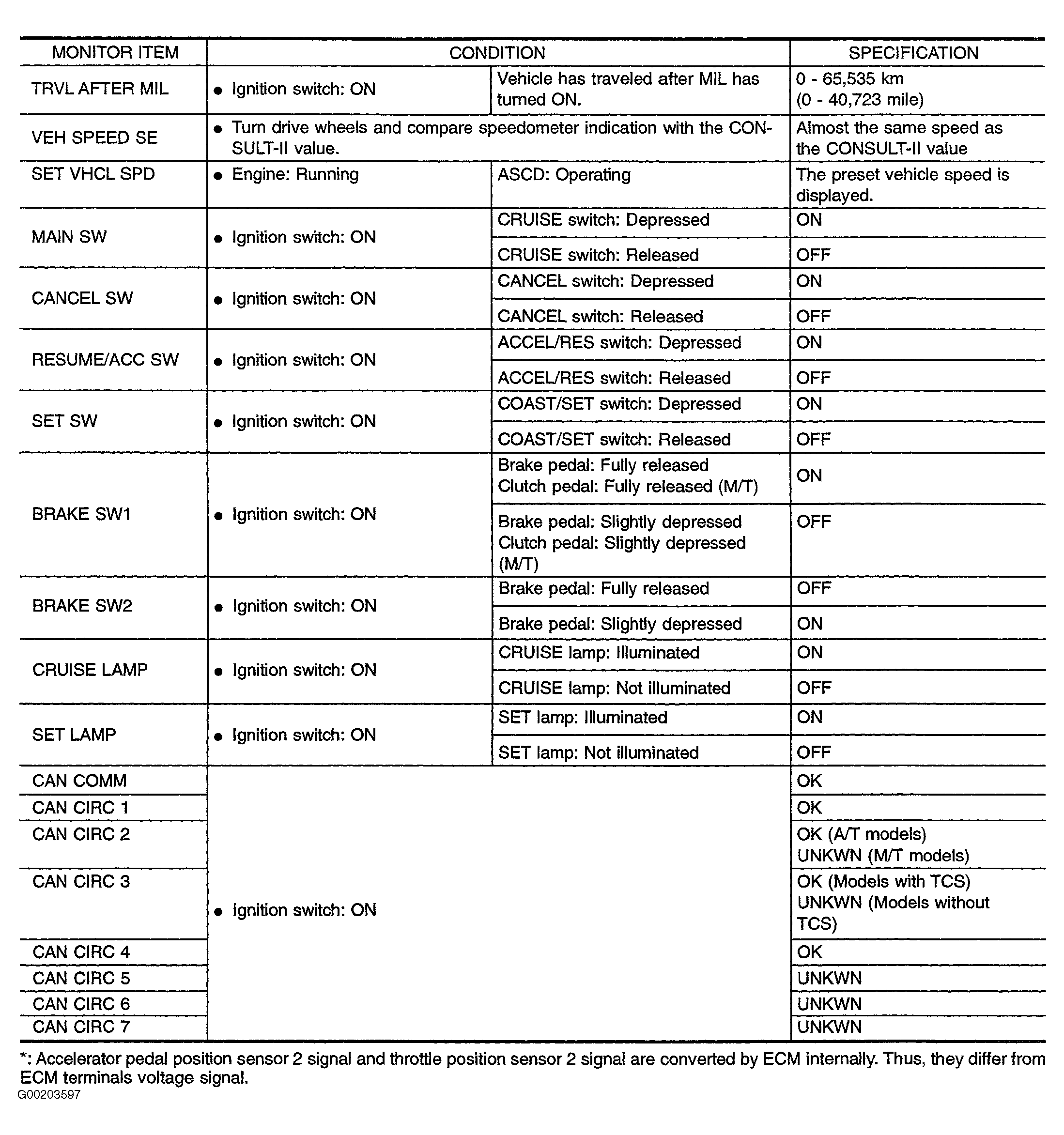

Fig 3: Data Monitor Mode Reference Values (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

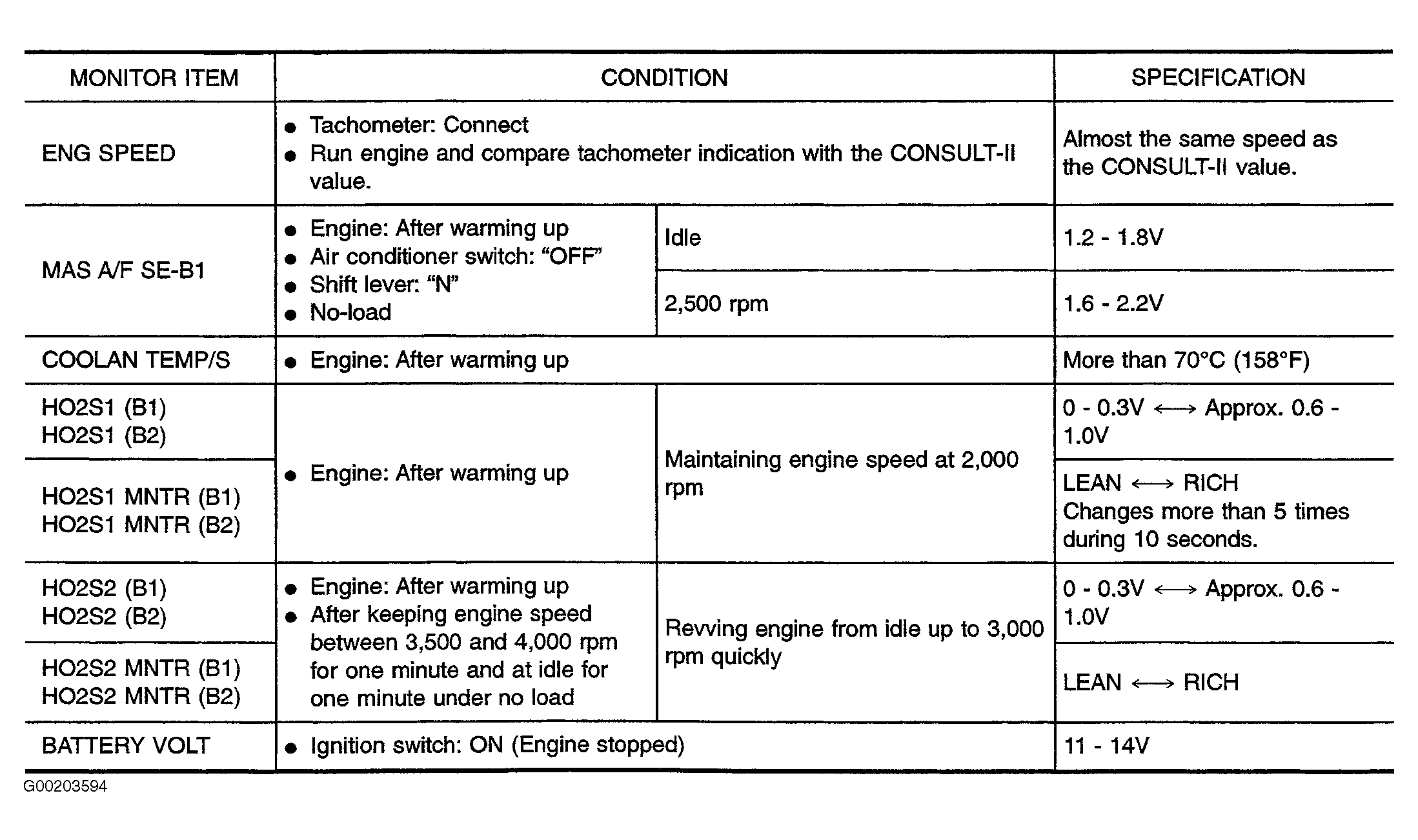

Fig 4: Data Monitor Mode Reference Values (4 Of 4)
