CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn off the ignition switch.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

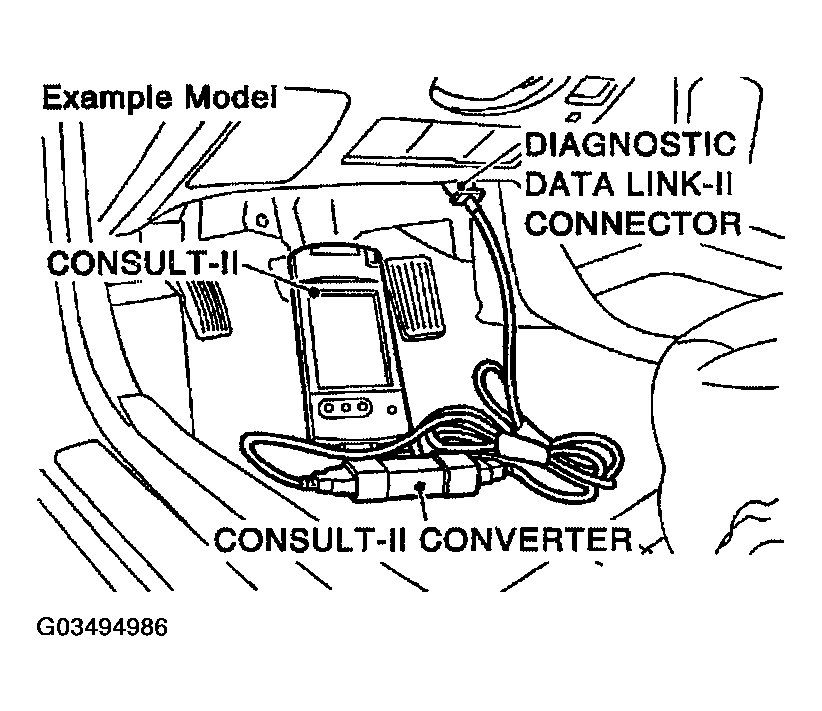

Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn on the ignition switch.
Touch "START (NISSAN BASED VECL)" or "System Shortcut" (eg: Engine) on the screen.

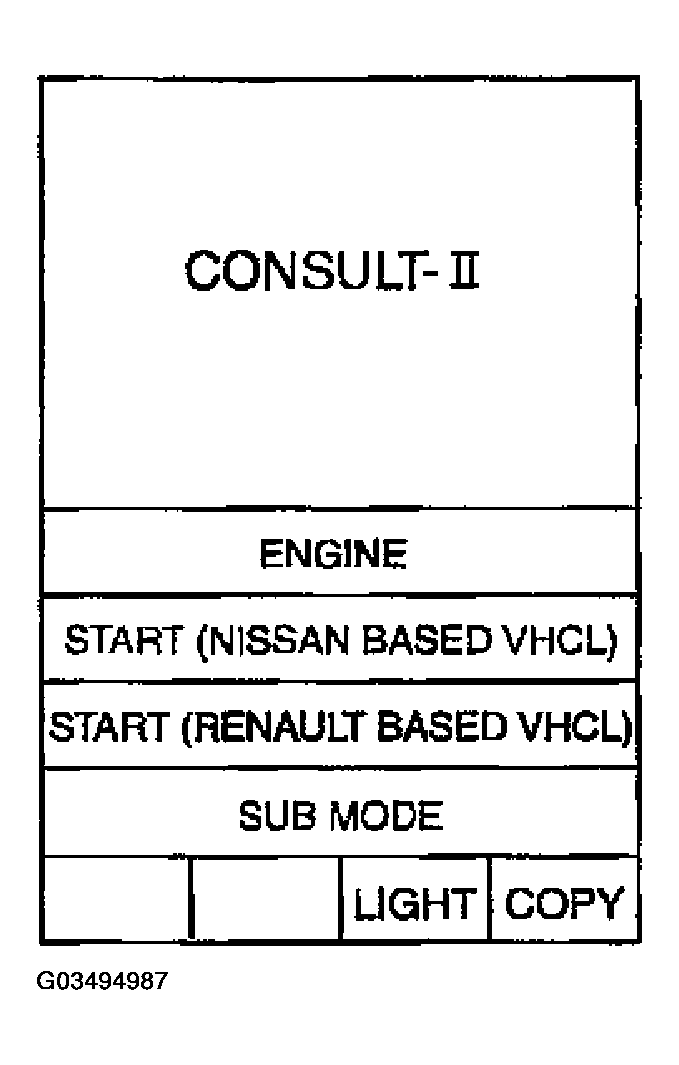

Fig 2: CONSULT-II Function Display Start
Courtesy of NISSAN MOTOR CO., U.S.A.
