Section 1250 (Vehicle Security (Theft Warning) System)
>>
Vehicle Security (Theft Warning) System
>>
Consult-II Application Item
>>
Data Monitor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Monitor
WARNING:
This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

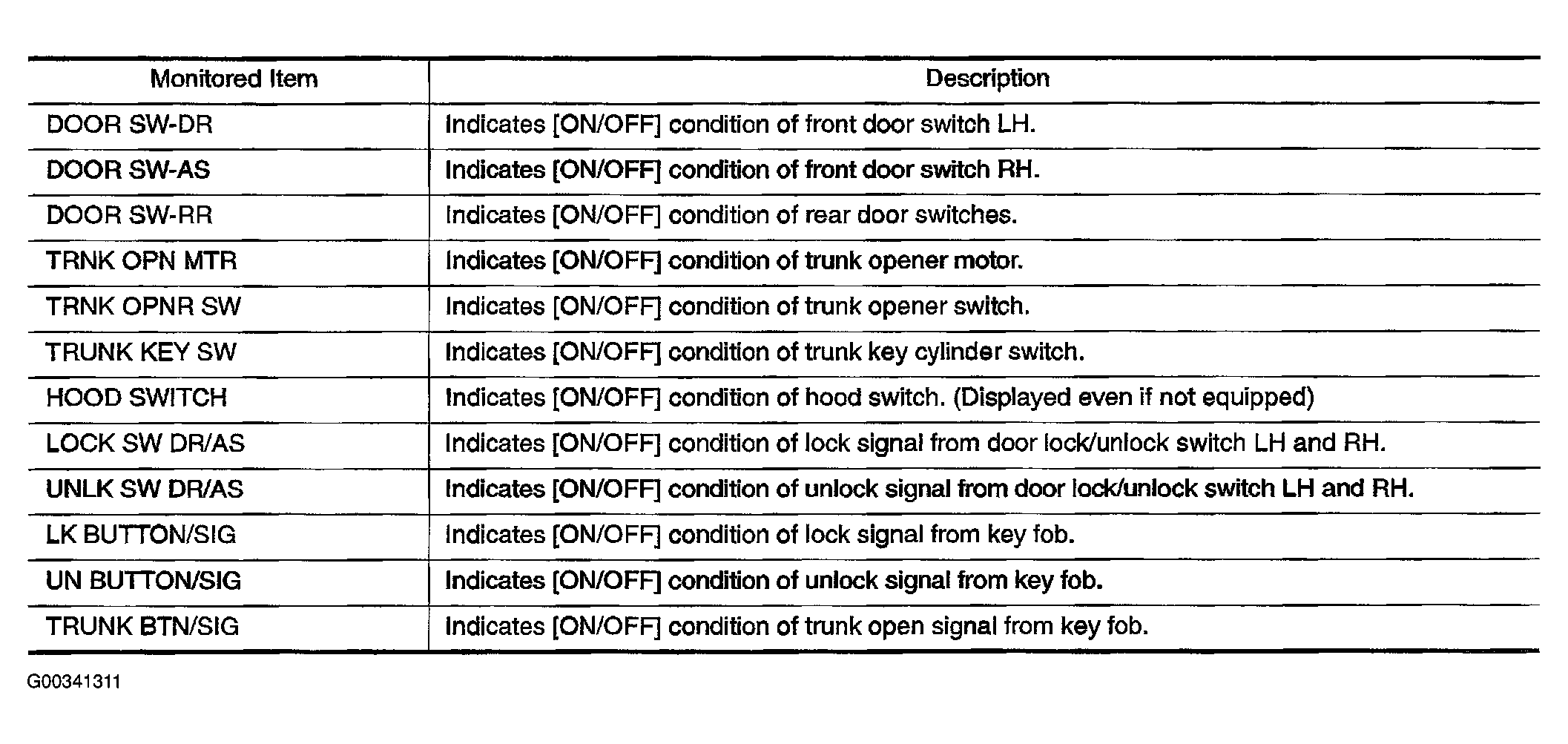

Fig 1: CONSULT-II Application Item Description Chart (Data Monitor) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

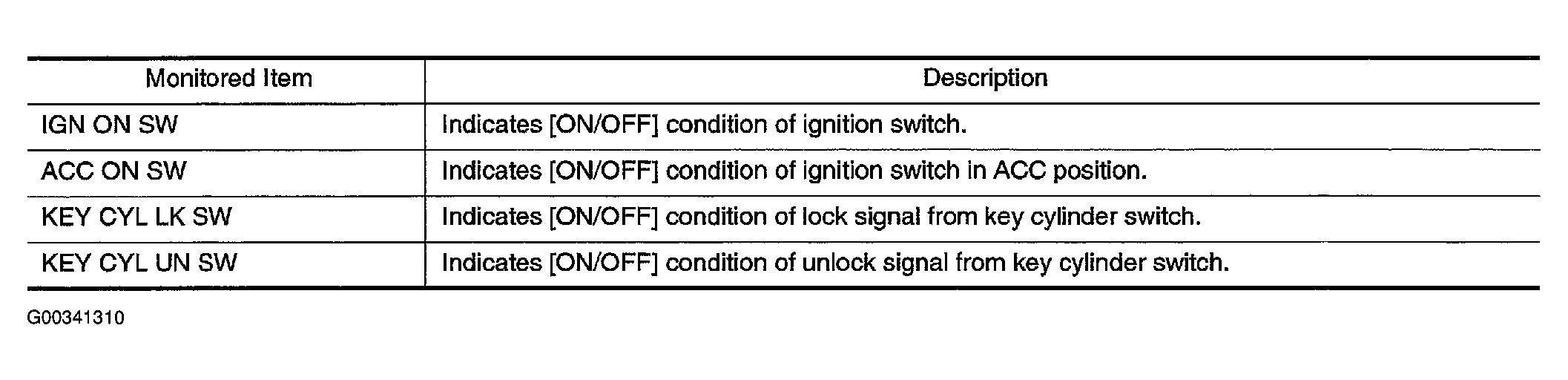

Fig 2: CONSULT-II Application Item Description Chart (Data Monitor) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
