1. Check Trunk Lamp Switch And Trunk Release Solenoid Input Signal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Check "TRUNK SW" in "DATA MONITOR" mode with CONSULT-II.

When trunk lid is open: TRNK OPN MNTR ON
When trunk lid is closed: TRNK OPN MNTR OFF

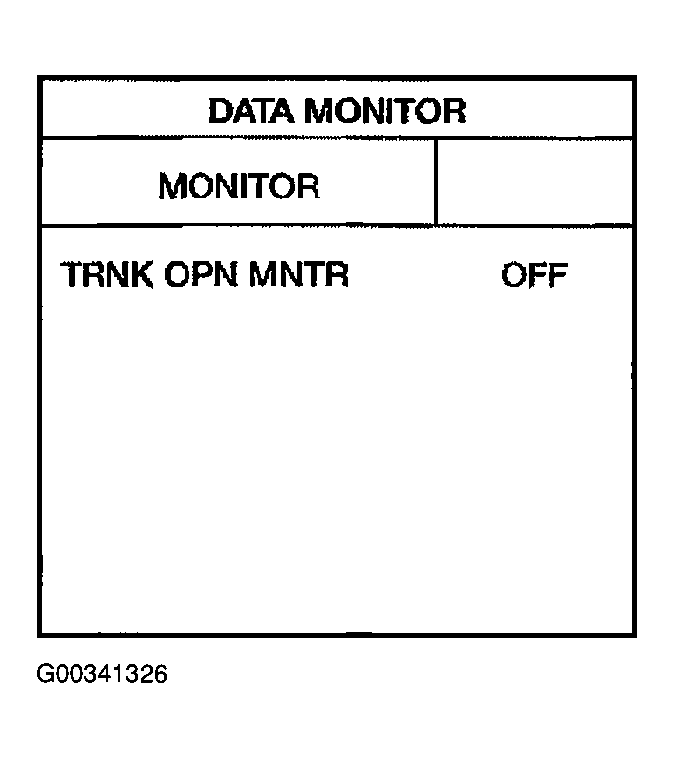

Fig 1: Checking Trunk Lamp Switch And Trunk Release Solenoid Input Signal With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM harness connector M20 terminal 57 (V/W) and ground.

Refer to FIG. 2 ".

OK or NG

OK >> Trunk room lamp and trunk release solenoid switch is OK.
NG >> GO TO 2

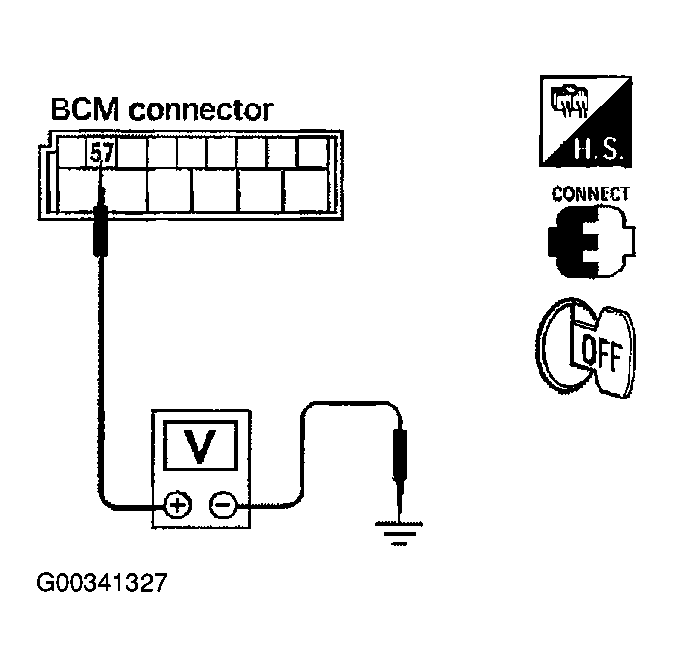

Fig 2: Checking Trunk Lamp Switch & Trunk Release Solenoid Input Signal Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
