Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.
    Fig 1: Locating Data Link Connector
    G03512689Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Start (Nissan Based VHCL) Display
    G03512690Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT

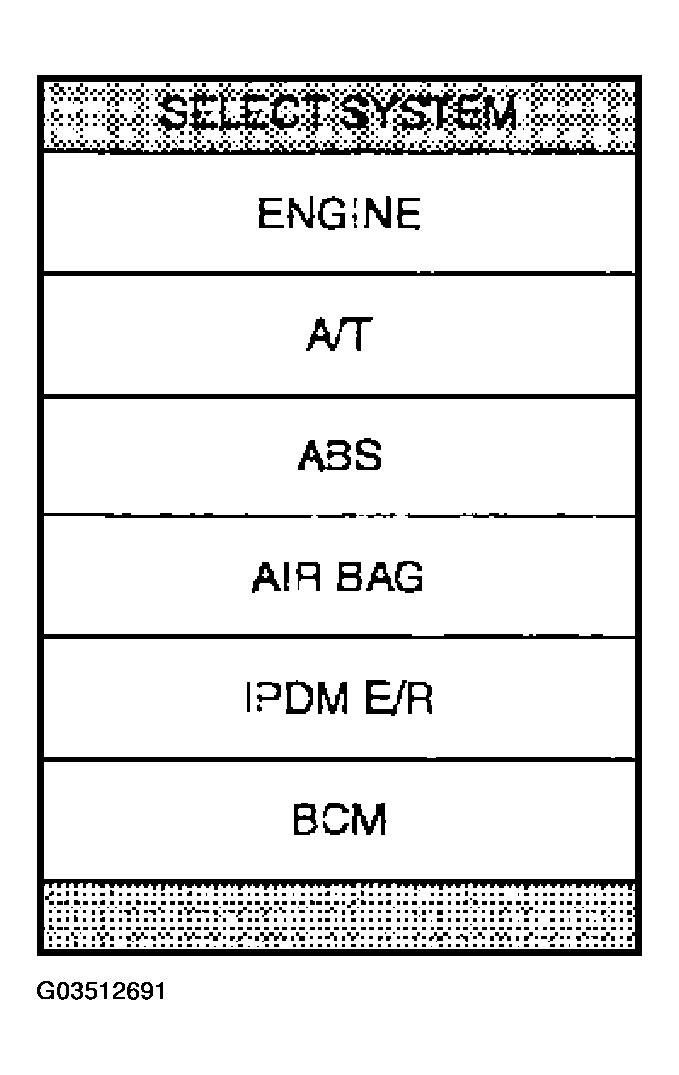

    Fig 3: "BCM" on "SELECT SYSTEM" Display
    G03512691Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "INT LAMP" on "SELECT SYSTEM" screen.

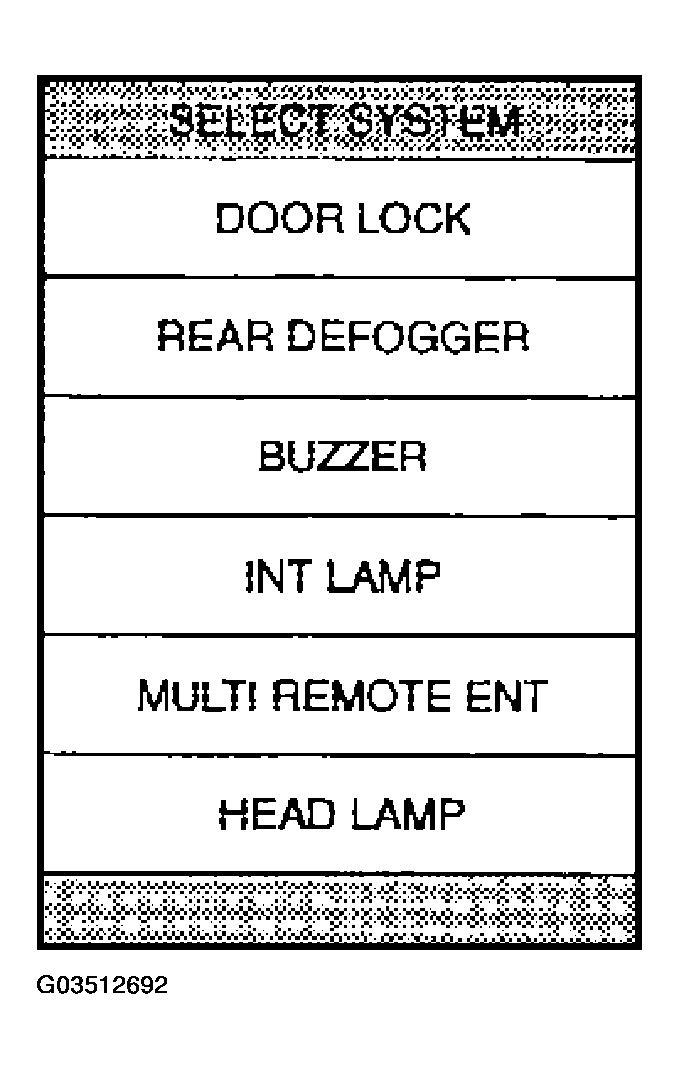

    Fig 4: "INT LAMP" on "SELECT SYSTEM" Display
    G03512692Courtesy of NISSAN MOTOR CO., U.S.A.
