Height Control Sensor: Removal

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the connector.
Align the matchmark with one on the right rear height control sensor sub-assembly and bracket.
Remove a nut. See Fig 1.
Remove the 2 nuts and right rear height control sensor sub-assembly.

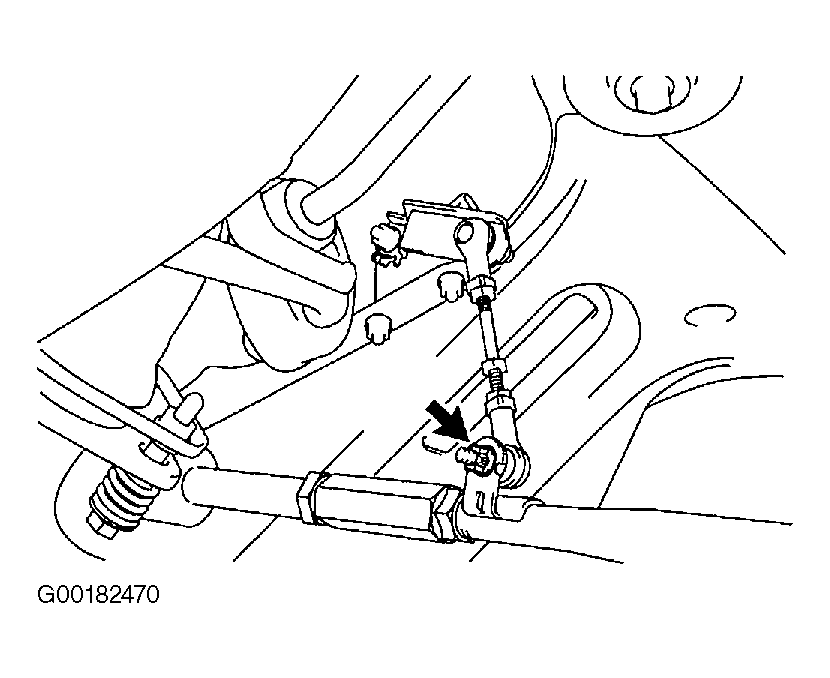

Fig 1: Removing RH Rear Height Control Sensor Sub-Assembly Nut
