CONSULT-II Reference Value in Data Monitor Mode

WARNING: This page is about a different car, the 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference value.

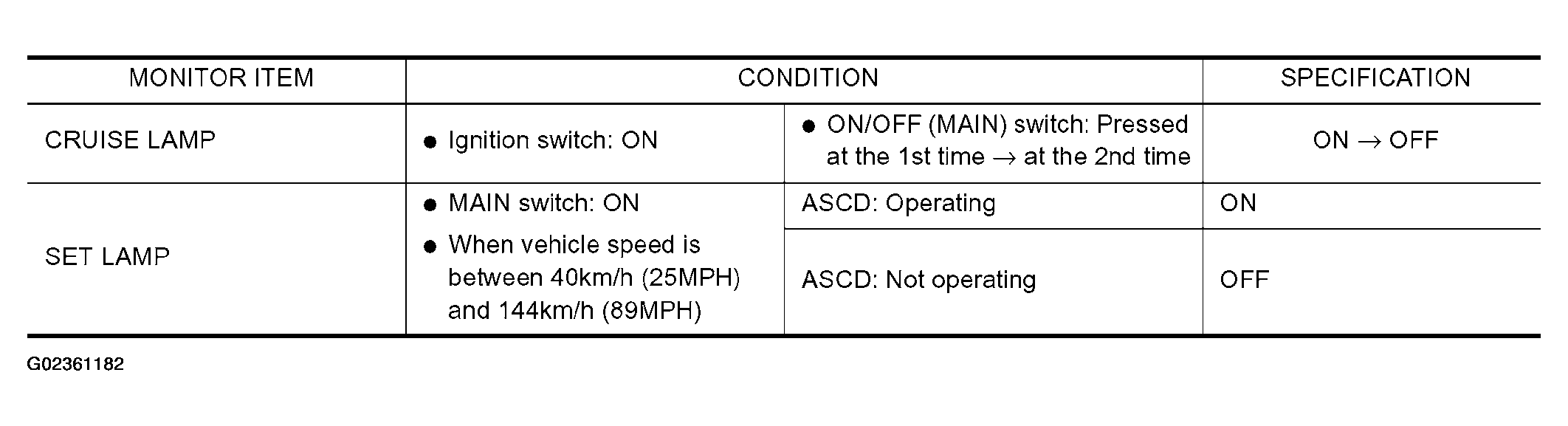

Fig 1: CONSULT-II Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
