Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
Perform the operation with the exhaust system fully cooled down because the system will be hot just after engine stops.
Be careful not to cut your hand on the heat insulator edge.

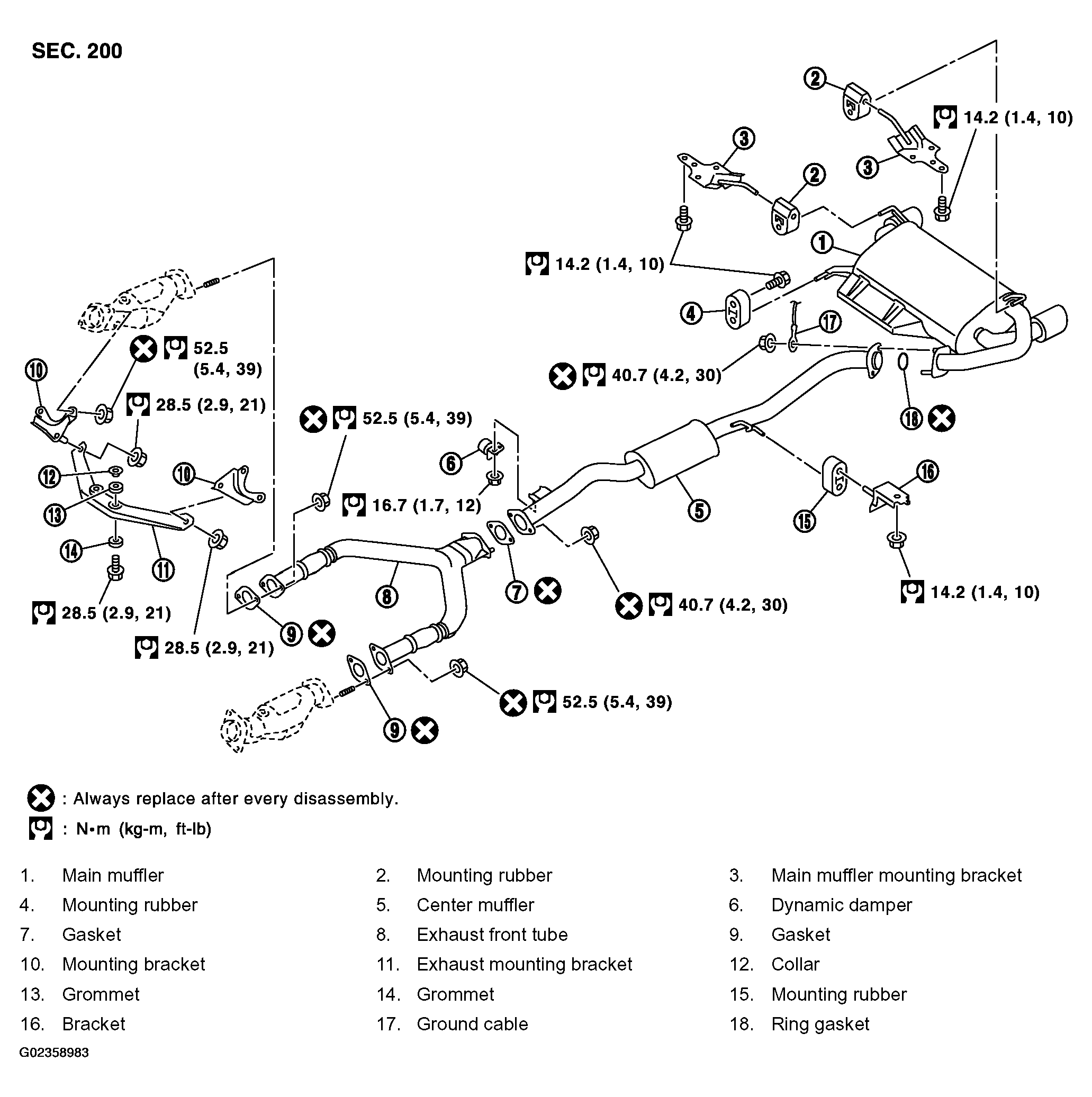

Fig 1: Exploded View Of Exhaust System With Torque Specifications (VQ35DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

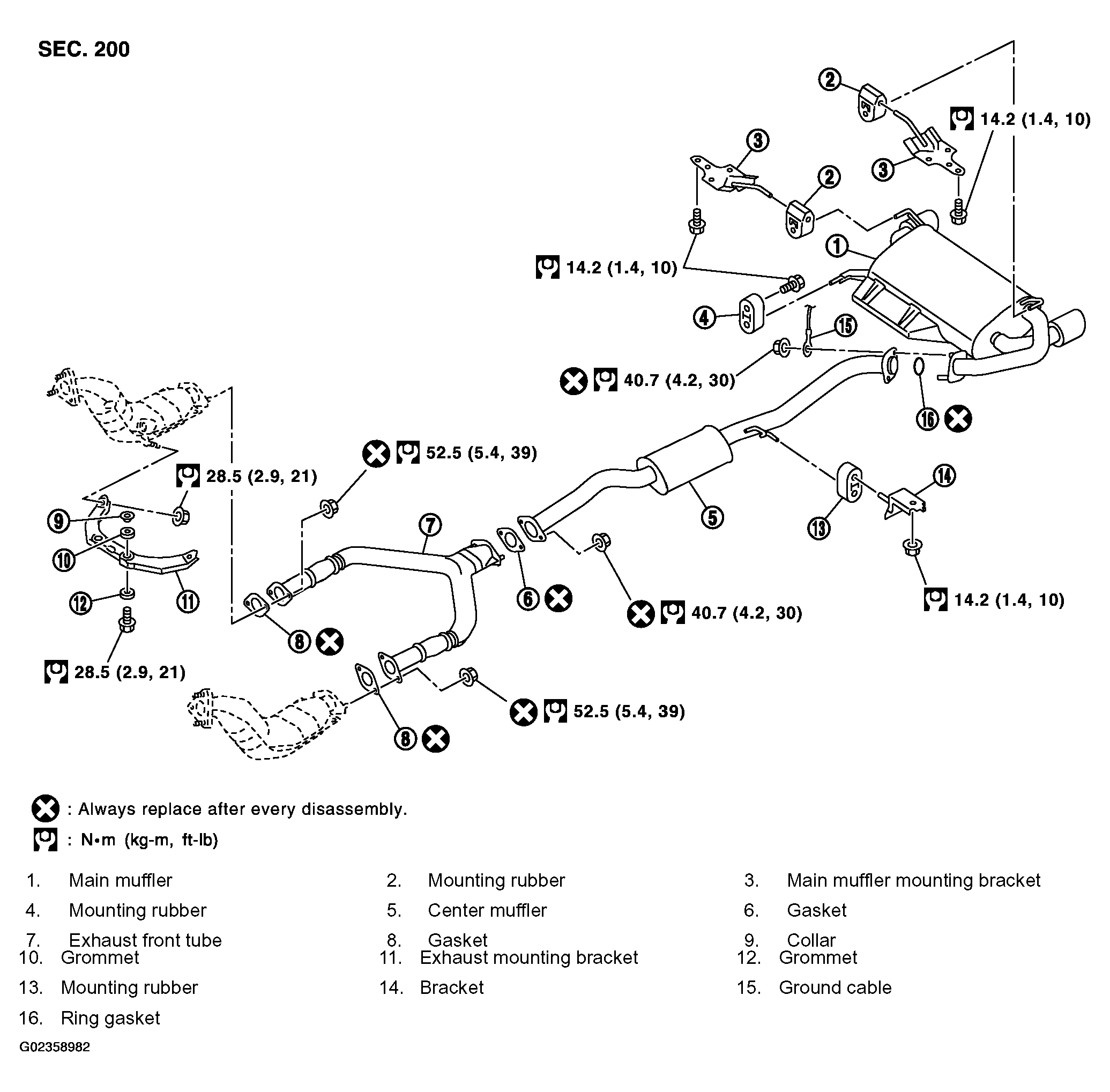

Fig 2: Exploded View Of Exhaust System With Torque Specifications (VK45DE)

Courtesy of NISSAN MOTOR CO., U.S.A.
