Front Power Window Motor (Driver Side) Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.

  Fig 1: Connector Terminal Wire Color Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

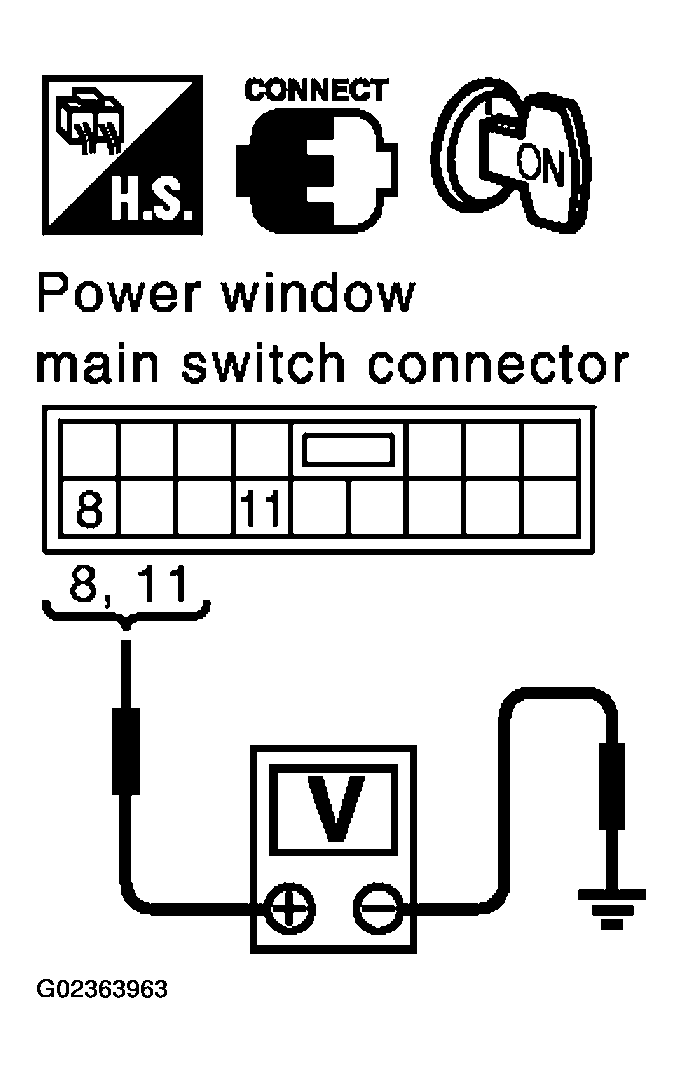

  Fig 2: Checking Voltage Between Power Window Main Switch Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace power window main switch.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window main switch and front power window motor (driver side) connector.
3. Check continuity between power window main switch connector D6 terminal 8, 11 and front power window motor (driver side) connector D8 terminal 1, 2.
  1. 8 (L) - 2 (L): Continuity should exist.
  2. 11 (B) - 1 (B): Continuity should exist.
OK or NG
1. OK: Replace front power window motor (driver side).
2. NG: Repair or replace harness.
Fig 3: Checking Harness Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
