Terminals and Reference Values for Automatic Drive Positioner Control Unit

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

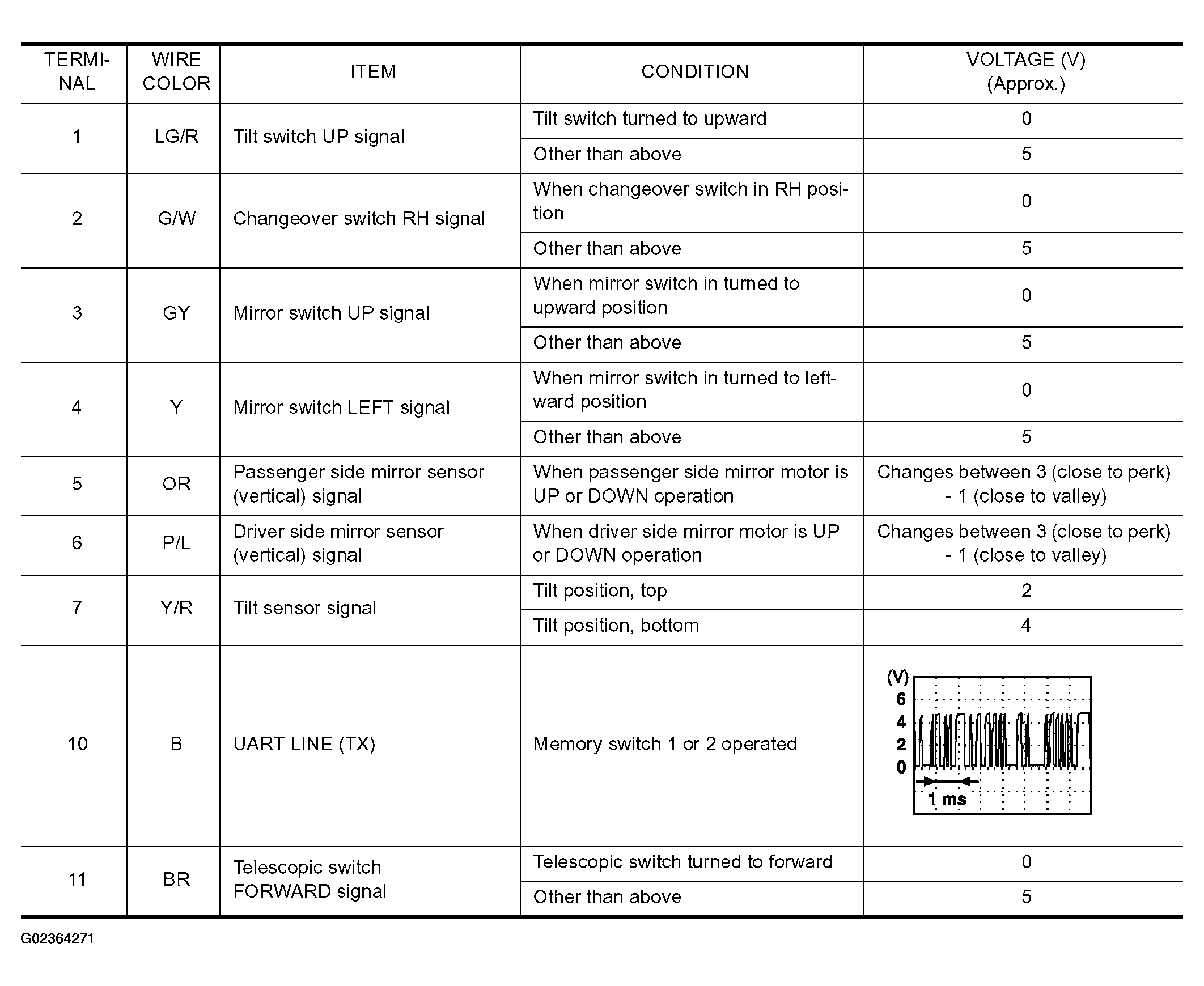

Fig 1: Terminals And Reference Values For Automatic Drive Positioner Control Unit Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

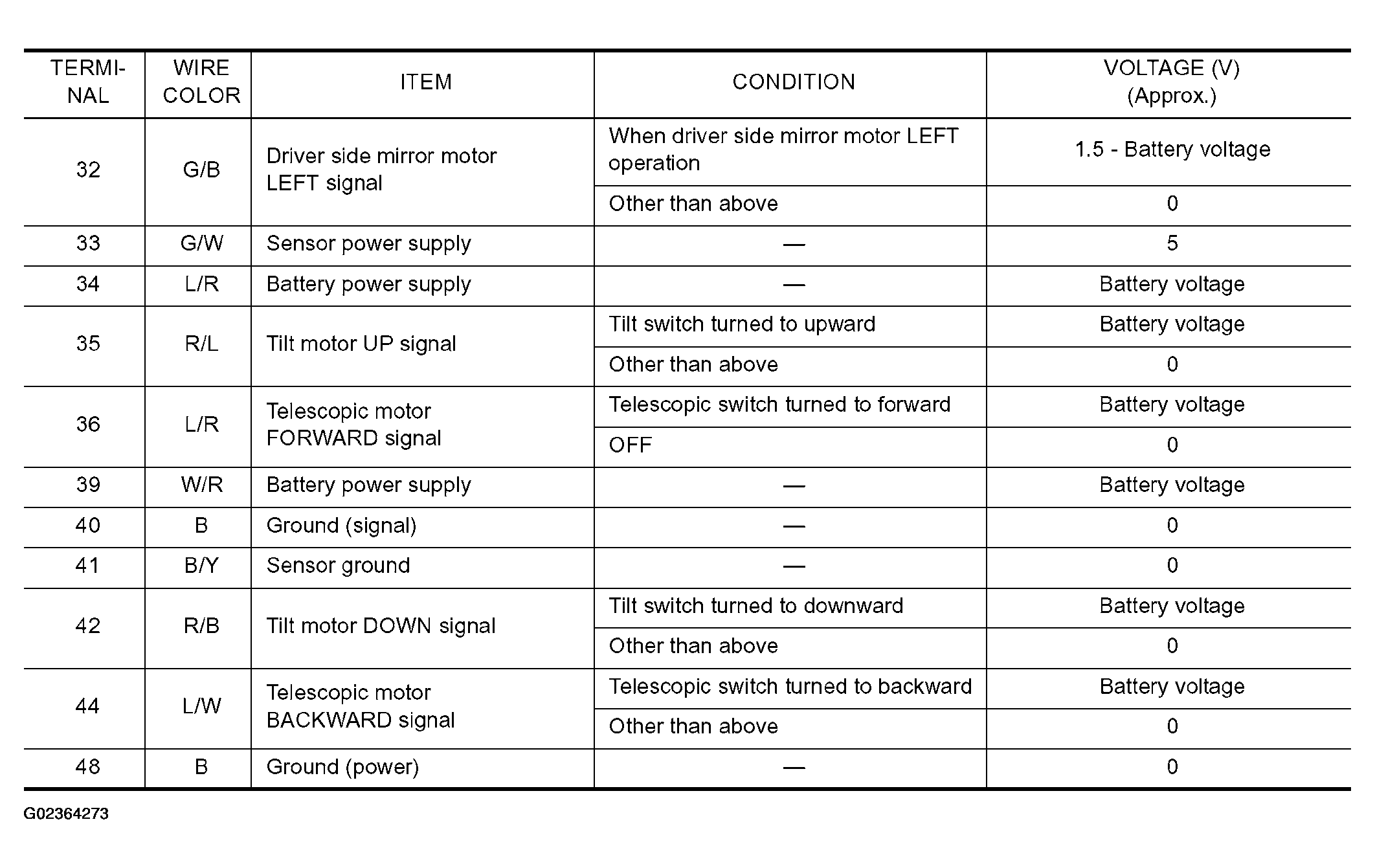

Fig 2: Terminals And Reference Values For Automatic Drive Positioner Control Unit Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

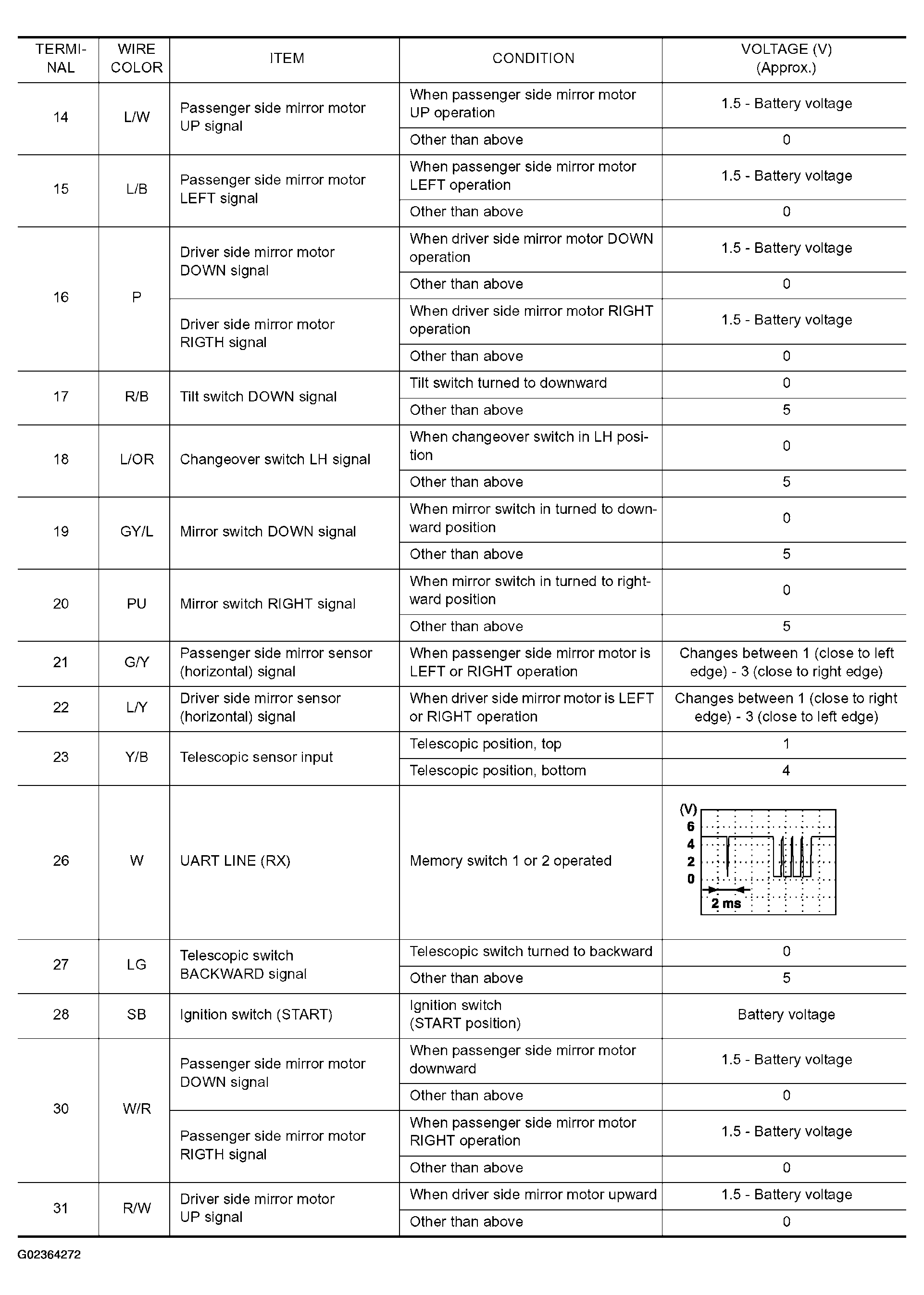

Fig 3: Terminals And Reference Values For Automatic Drive Positioner Control Unit Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
