Tilt Sensor Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TILT SENSOR
With CONSULT-II

With "TILT SEN" on the DATA MONITOR, operate the tilt switch to make sure voltage changes.

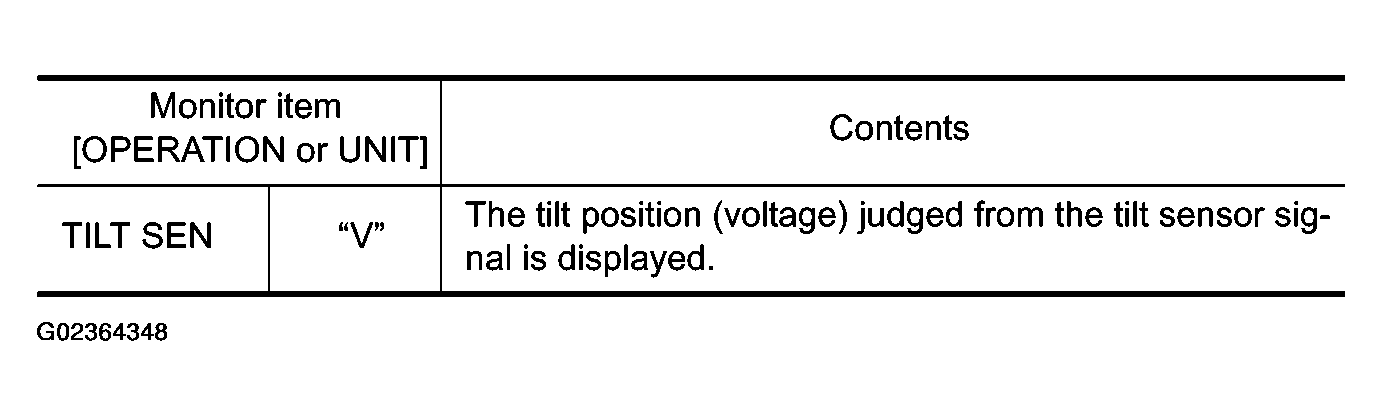

Fig 1: Monitor Item Table
Courtesy of NISSAN MOTOR CO., U.S.A.

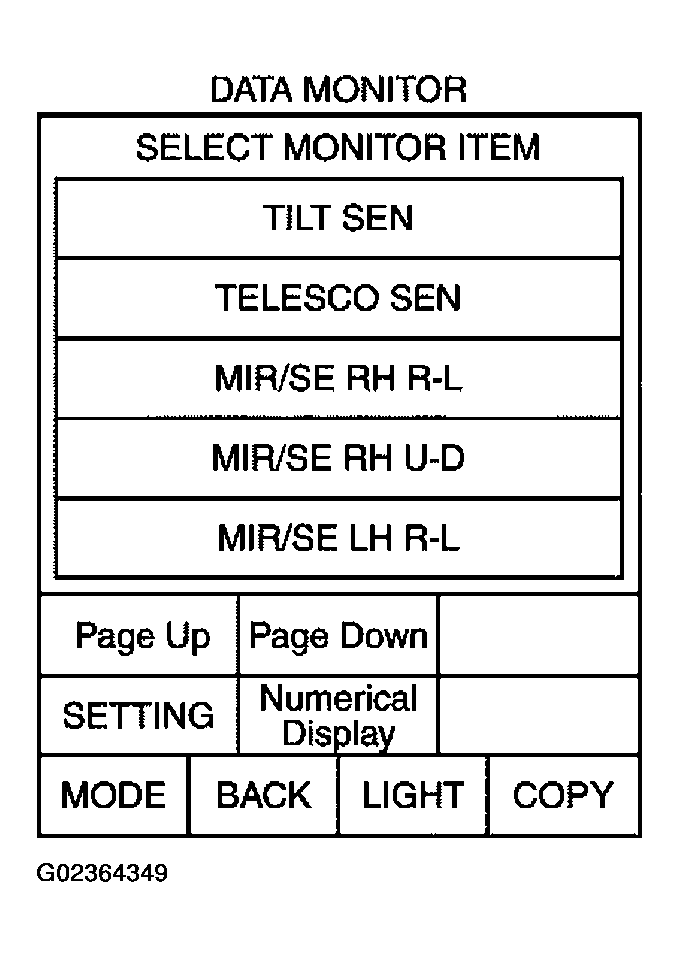

Fig 2: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.

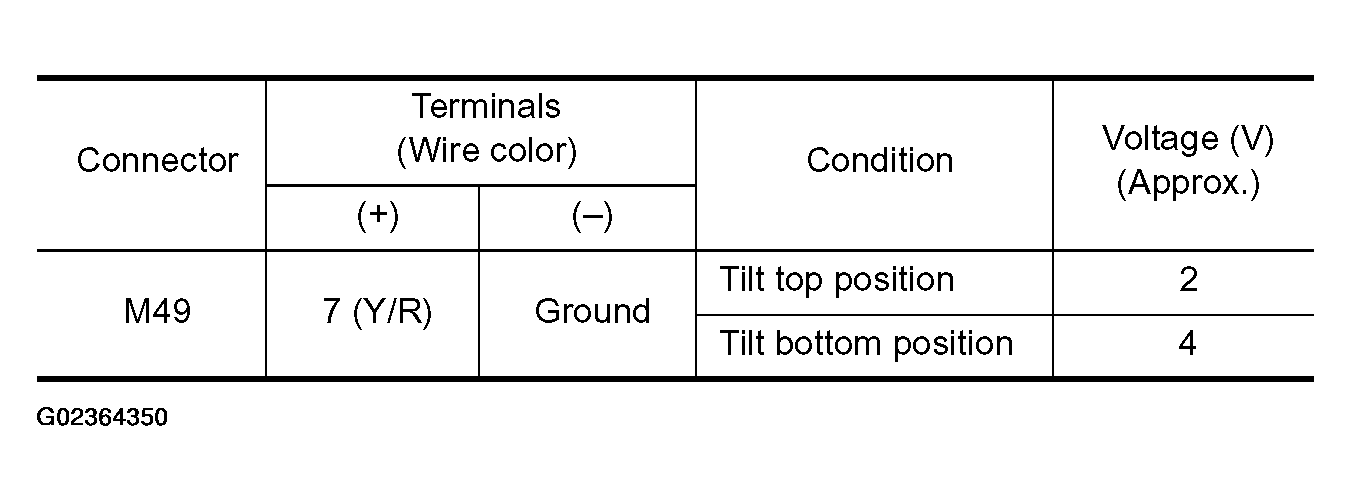

  Fig 3: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Tilt sensor circuit is OK.
2. NG : GO TO 2.

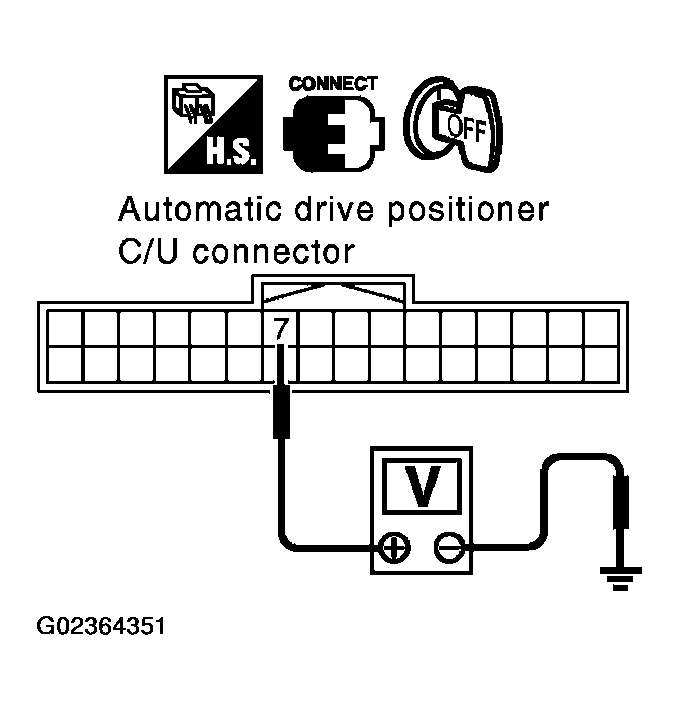

Fig 4: Checking Voltage Between Terminal 7 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS
1. Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connector.
2. Check continuity harness between automatic drive positioner control unit connector M49 terminals 7 and tilt sensor and telescopic sensor connector M28 terminals 2.
  1. 7 (Y/R) - 2 (Y/R) : Continuity should exist.
3. Automatic drive positioner control unit connector M49 terminals 7 and ground.
  1. 7 (Y/R) - Ground : Continuity should not exist.
OK or NG
1. OK : Replace tilt sensor and telescopic sensor.
2. NG : Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.

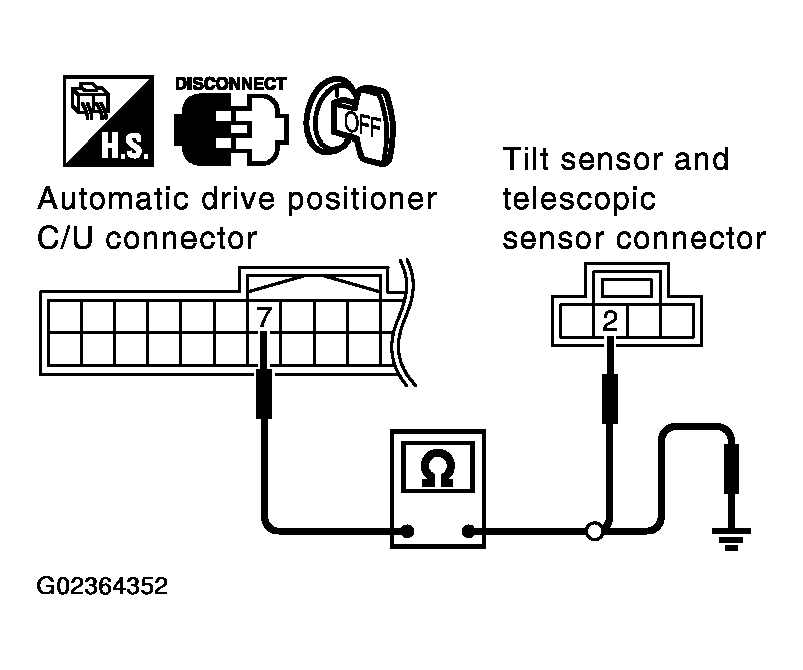

Fig 5: Checking Continuity Harness Between Terminals 7 And Terminals 2
Courtesy of NISSAN MOTOR CO., U.S.A.
