CAN Communication Line Inspection

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MONITOR DESCRIPTION

Start display unit self-diagnosis. Refer to "SELF-DIAGNOSIS MODE ".
Select "CAN DIAG MNTR". Refer to "CAN DIAG MNTR (CAN DIAG MONITOR) ".

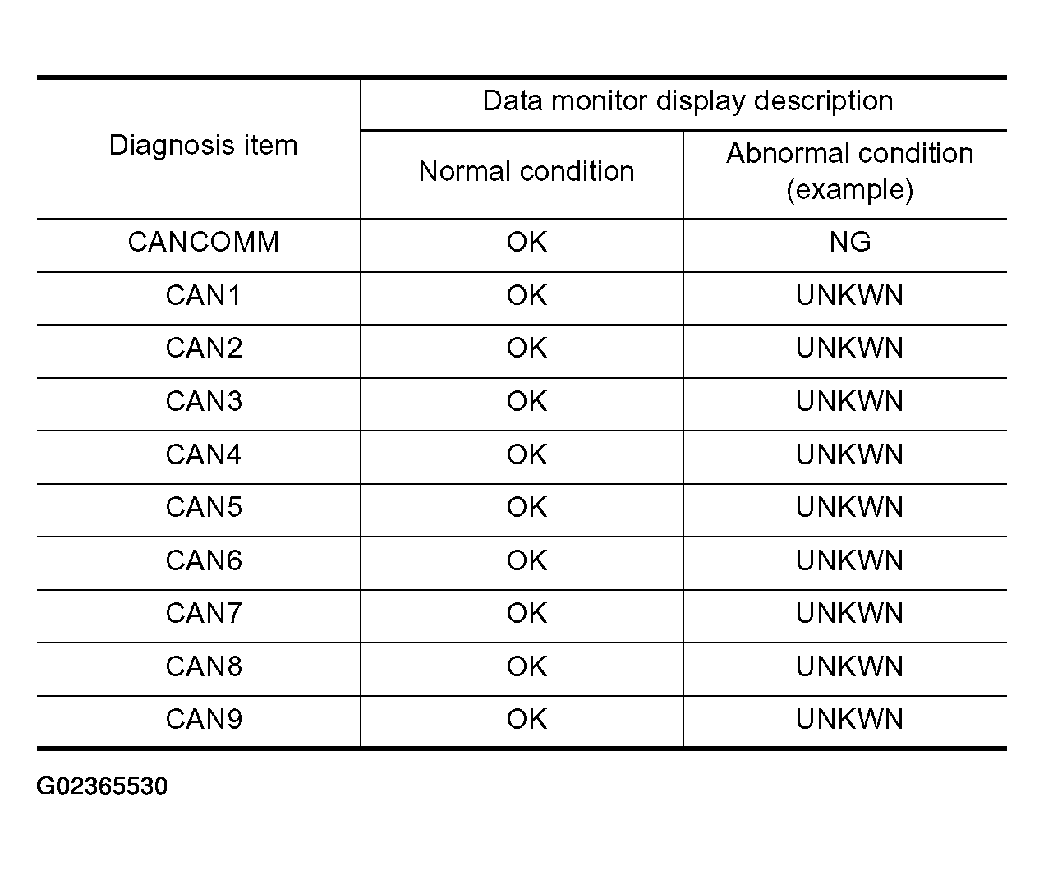

Fig 1: Diagnosis Item Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

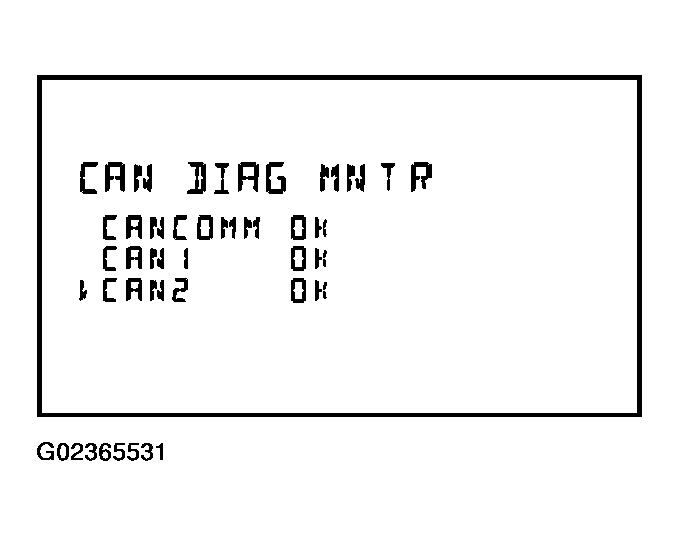

Fig 2: Identifying Display - Can Diag
Courtesy of NISSAN MOTOR CO., U.S.A.
Record each item display description (OK/NG/UKNWN) displayed on the following CAN DIAG MONITOR Check Sheet.

CAN DIAG MONITOR CHECK SHEET

Diagnosis item	Screen display	Screen display	Diagnosis item	Screen display	Screen display
CANCOMM	OK	NG	CAN5	OK	UNKWN
CAN1	OK	UNKWN	CAN6	OK	UNKWN
CAN2	OK	UNKWN	CAN7	OK	UNKWN
CAN3	OK	UNKWN	CAN8	OK	UNKWN
CAN4	OK	UNKWN	CAN9	OK	UNKWN

>>: After filling in CAN DIAG MONITOR Check Sheet, go to "PRECAUTIONS WHEN USING CONSULT-II ".
