Parts Check: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Selecting PARTS CHECK on self-diagnosis screen, display selection screen.
Select DISPLAY, indicate DISPLAY DETAIL screen. Display diagnosis and setting can be performed.
Select HVAC, Indicate HVAC DETAIL screen. Auto air conditioner system self-diagnosis can be performed.

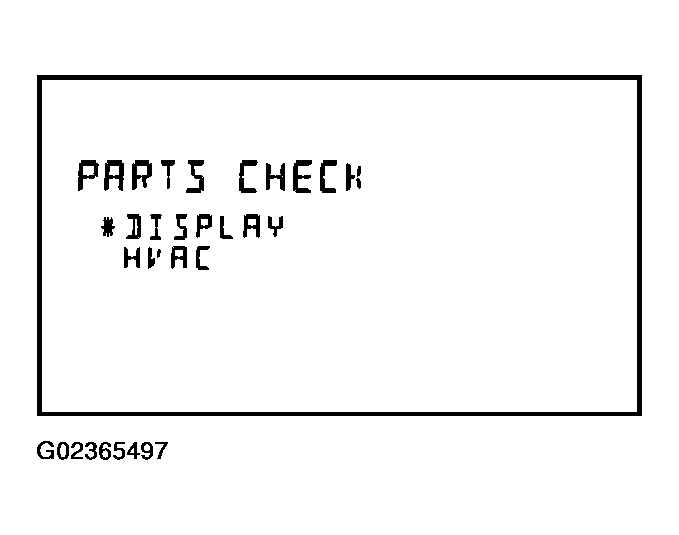

Fig 1: Identifying Display - Parts Check
Courtesy of NISSAN MOTOR CO., U.S.A.
