D/N Screen

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Turning on "DAY/NIGHT" switch, DAY MODE or NIGHT MODE is indicated for present mode.

If press "DAY/NIGHT" again when display adjustment luminance, change DAY-NIGHT (NIGHT-DAY) mode (screen of adjustment luminance).

As follows:

CHANGE DISPLAY

NOW	Change display
DAY	DAY-->NIGHT-->DAY-->.....
NIGHT	NIGHT-->DAY-->NIGHT-->.....

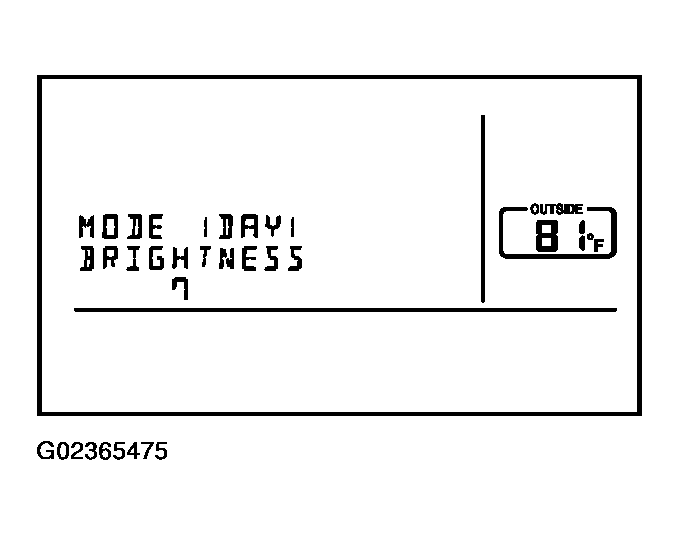

Fig 1: Identifying Display - D/N Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Press "PREV" or not operate for 10sec. when displayed screen of adjustment luminance, back to default screen (same mode).
Can adjust luminance by "DISP" switch. Light can be adjusted by pressing "+" (bright) or "-" (dark).
Adjustment range is a 12 stage (MIN to MAX) and default set value is 10 (DAY) and 4 (NIGHT).
