CAN Communication Line Check: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK MONITOR DESCRIPTION
    1. Start display control unit self-diagnosis. Refer to "SELF-DIAGNOSIS MODE (DCU)  "
    2. Select "CAN DIAG SUPPORT MONITOR". Refer to "CAN DIAG SUPPORT MONITOR  ".

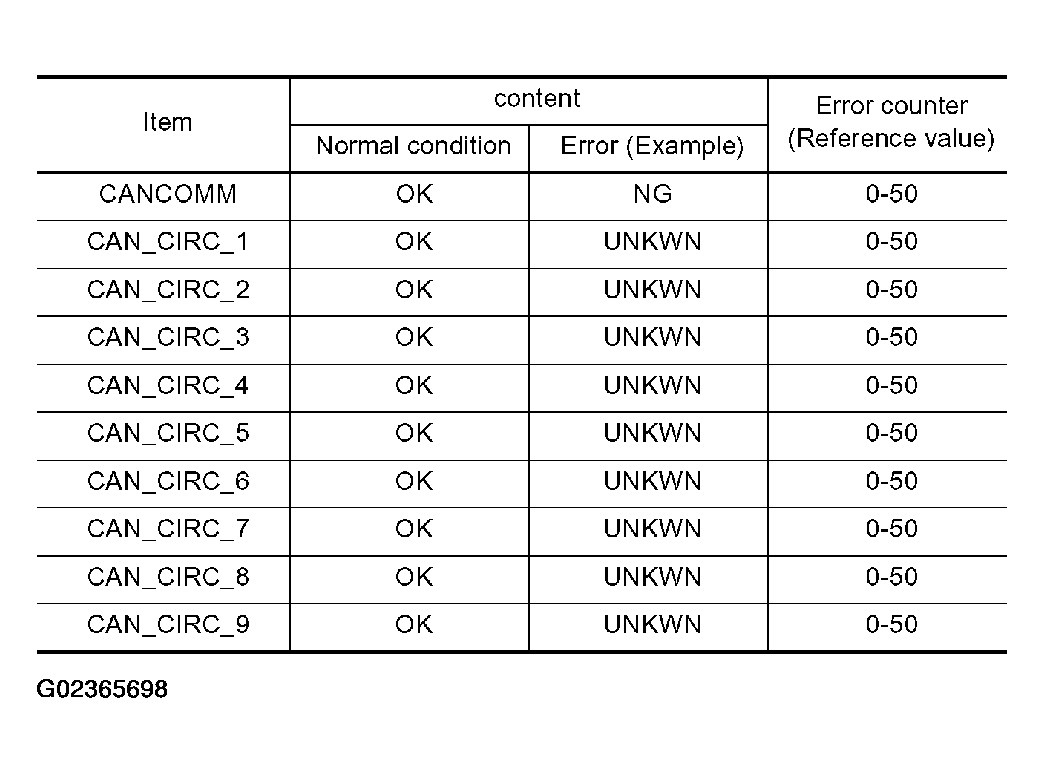

      Fig 1: Item Content Specification
      G02365698Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Record each item display description (OK/NG/UNKWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.
