Board-on Lift

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure vehicle is empty when lifting.

The board-on lift attachment (LM4086-0200) set at front end of vehicle should be set on the front of the sill under the front door opening.
Position attachments at front and rear ends of board-on lift.

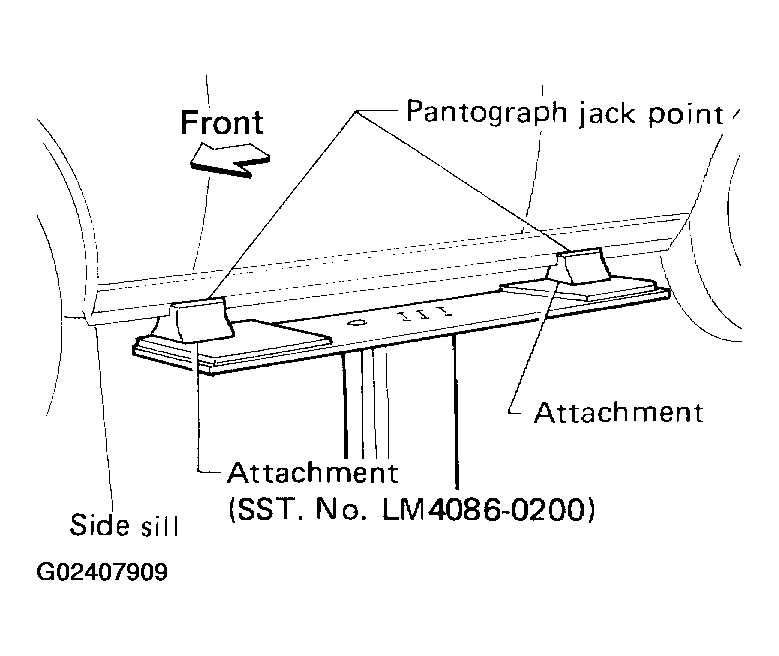

Fig 1: Pantograph Jack Points
Courtesy of NISSAN MOTOR CO., U.S.A.
