Back-Up Lamp Switch

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity.

BACK-UP LAMP SWITCH CONTINUITY

Gear position	Continuity
Reverse	Yes
Except reverse	No

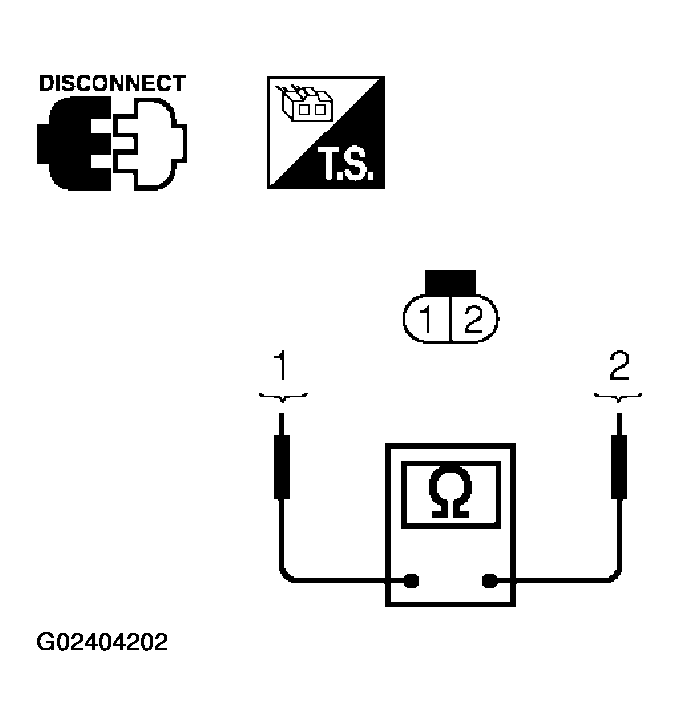

Fig 1: Checking Continuity Of Back-Up Lamp Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
