Shift Control Components

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

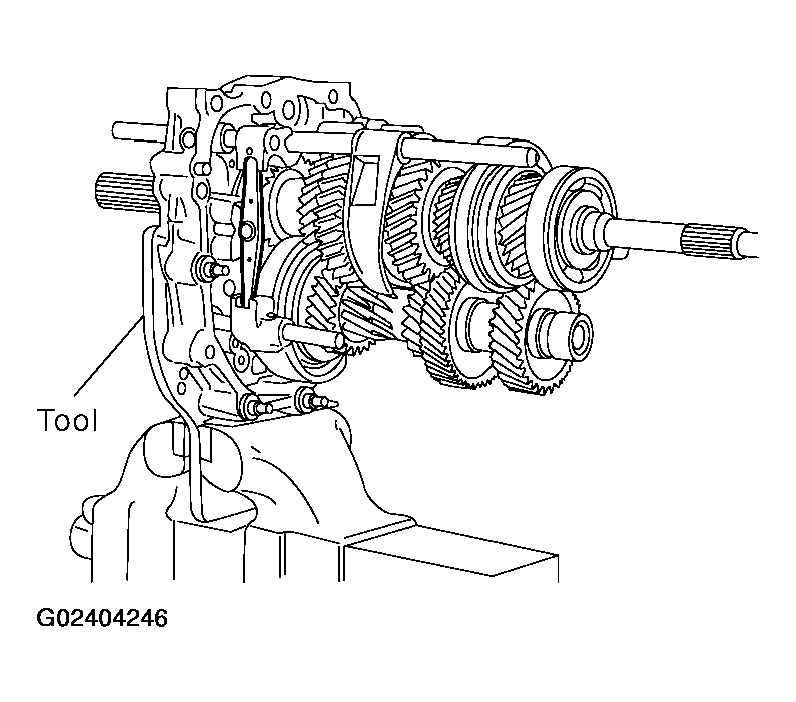

Install adapter setting plate to the adapter plate and then fixing in adapter setting plate using a vise.
- Tool number: ST224490000 ( - )
CAUTION: Do not directly secure the surface in a vise.

Fig 1: Fixing In Adapter Setting Plate In Vise
Courtesy of NISSAN MOTOR CO., U.S.A.

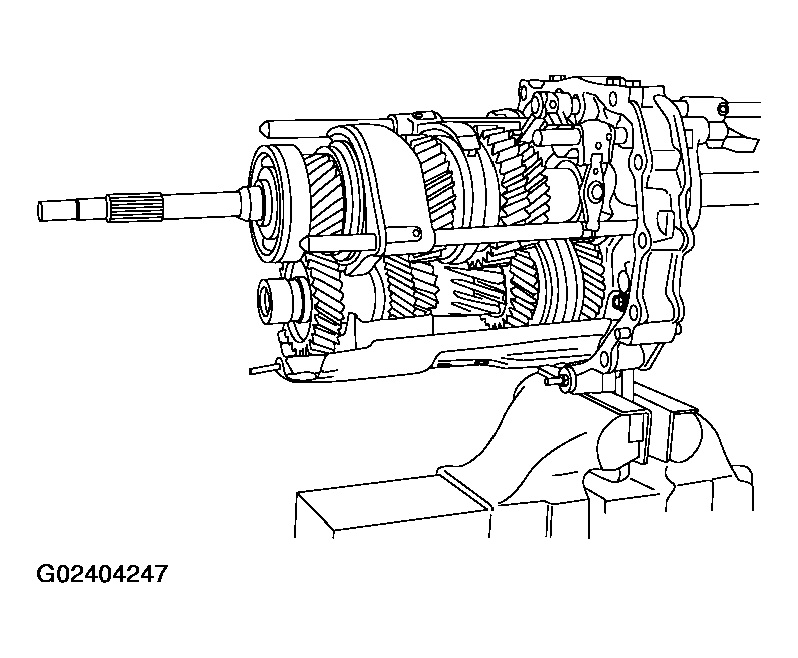

Remove baffle plate mounting bolts, and remove baffle plate from the adapter plate.

Fig 2: Removing Baffle Plate From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove magnet from the adapter plate.

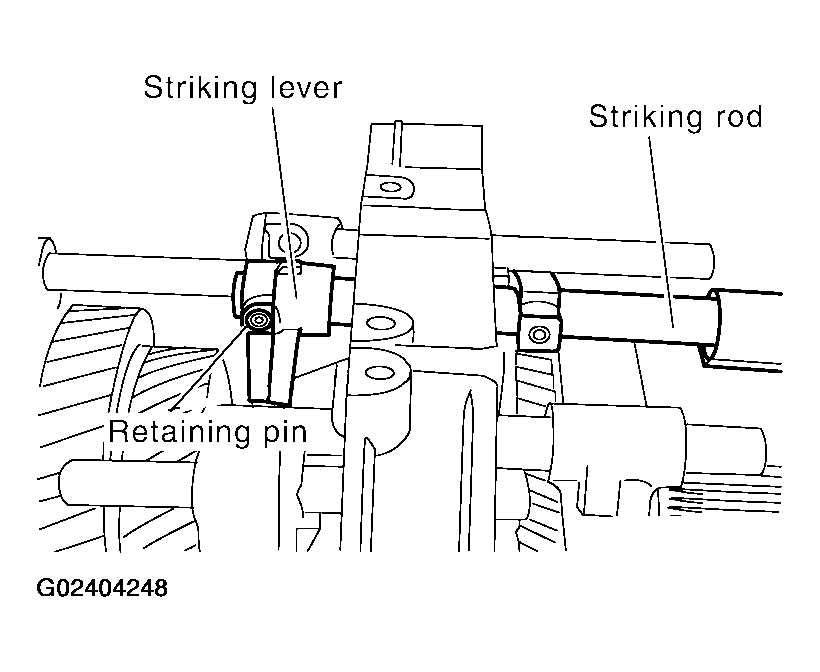

Remove retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove striking lever and striking rod.

Fig 3: Removing Striking Lever And Striking Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

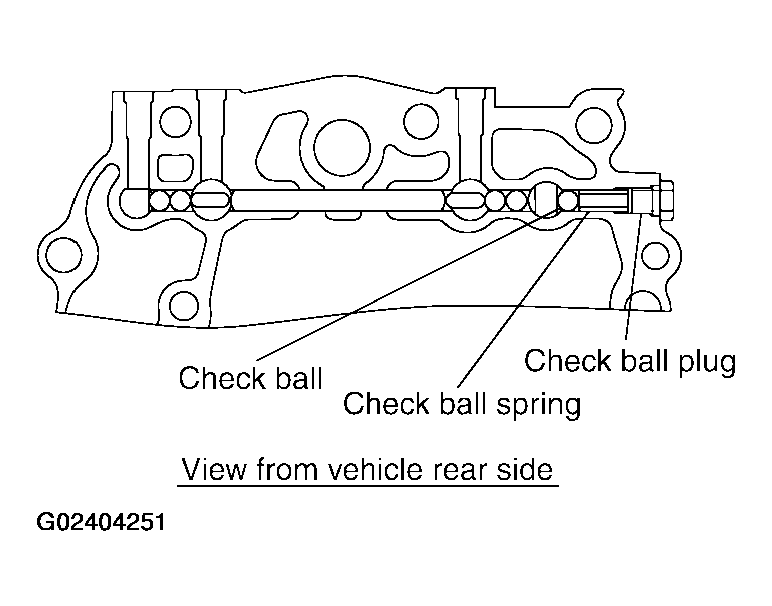

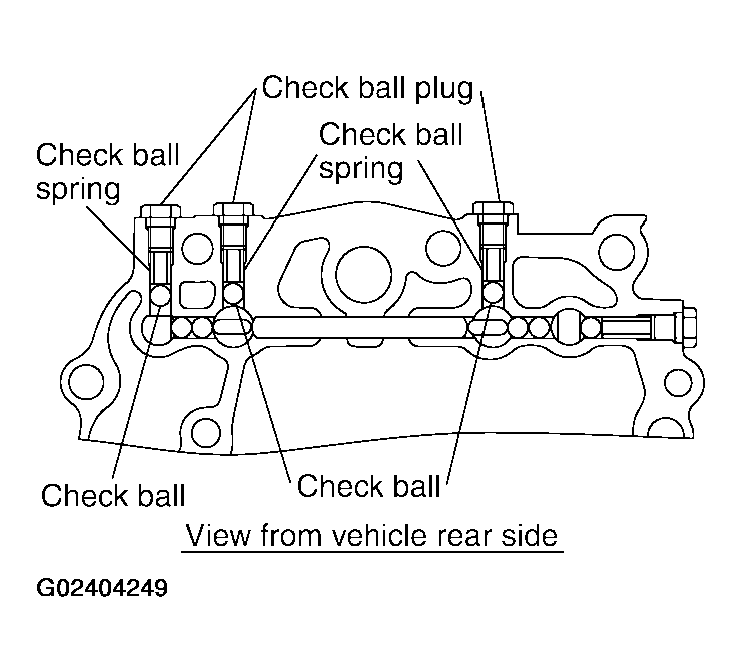

Remove check ball plug and then remove check ball spring and check ball from the adapter plate.

Fig 4: Removing Check Ball Spring And Check Ball From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

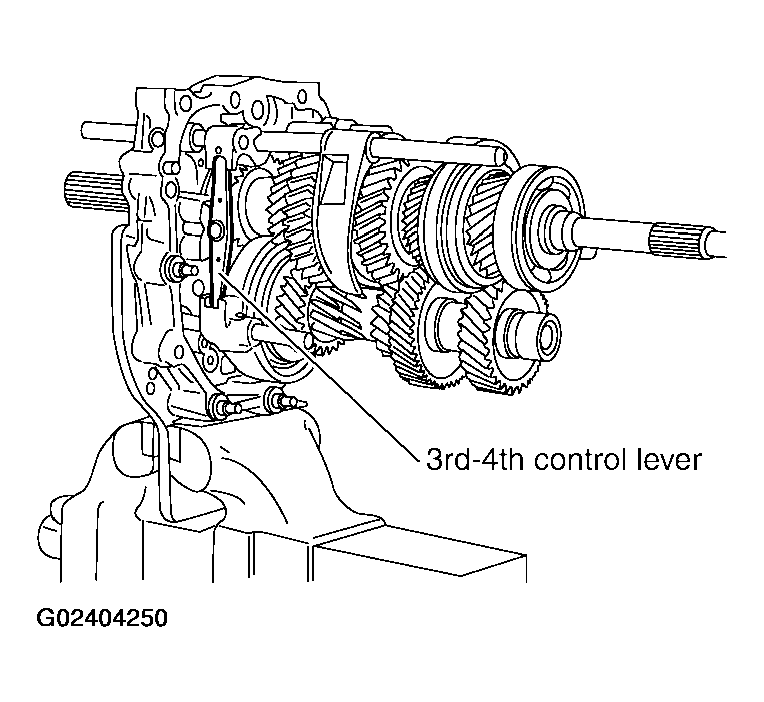

Remove 3rd - 4th control lever mounting bolts and then remove 3rd - 4th control lever and shifter cap.

Fig 5: Removing 3rd - 4th Control Lever And Shifter Cap
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove check ball plug and then remove check ball spring and check ball from the adapter plate.

Fig 6: Removing Check Ball Spring & Check Ball From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

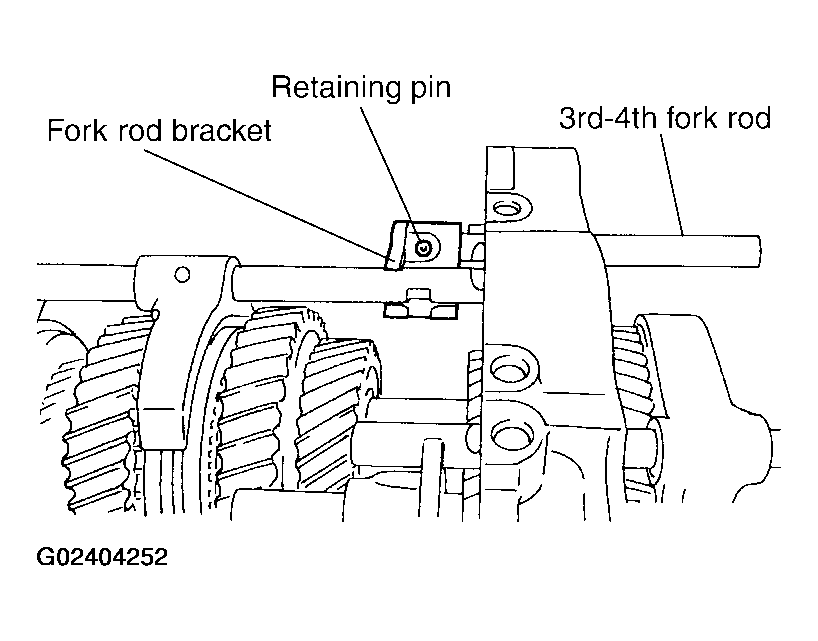

Using a pin punch [6 mm (0.24 in) dia.] to knock out retaining pin, and then remove 3rd - 4th fork rod bracket and 3rd - 4th fork rod.

Fig 7: Removing 3rd - 4th Fork Rod Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.

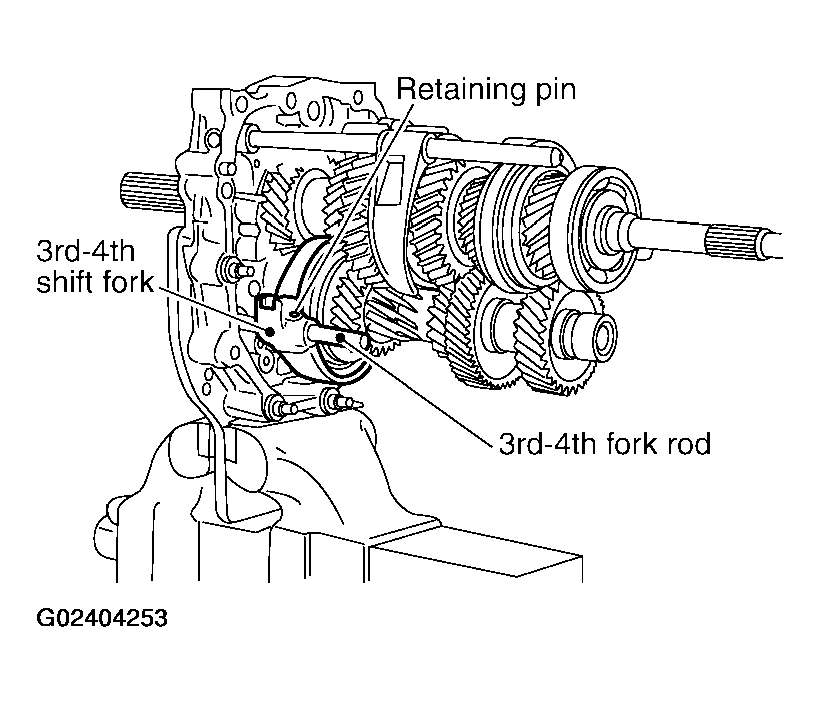

Using a pin punch [6 mm (0.24 in) dia.] to knock out retaining pin, and then remove 3rd - 4th shift fork and 3rd - 4th fork rod (reversal side).

Fig 8: Removing 3rd - 4th Shift Fork & 3rd - 4th Fork Rod (Reversal Side)
Courtesy of NISSAN MOTOR CO., U.S.A.

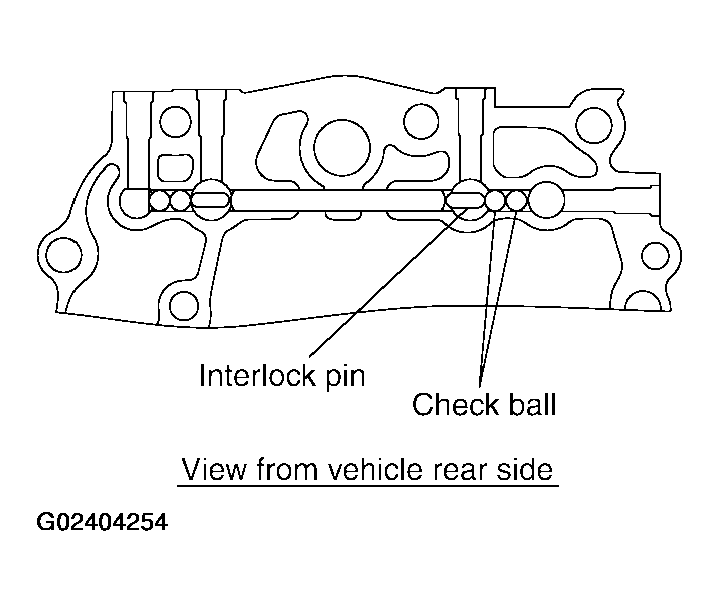

Remove check ball and interlock pin from the adapter plate.

Fig 9: Removing Check Ball & Interlock Pin From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

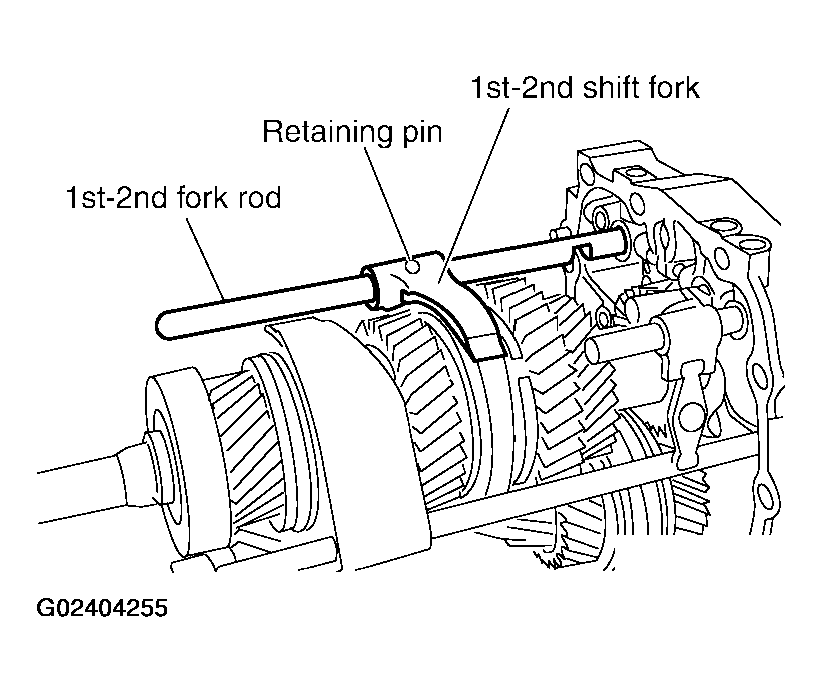

Using a pin punch [6 mm (0.24 in) dia.] to knock out retaining pin, and then remove 1st - 2nd shift fork and 1st - 2nd fork rod.

Fig 10: Removing 1st - 2nd Shift Fork And 1st - 2nd Fork Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

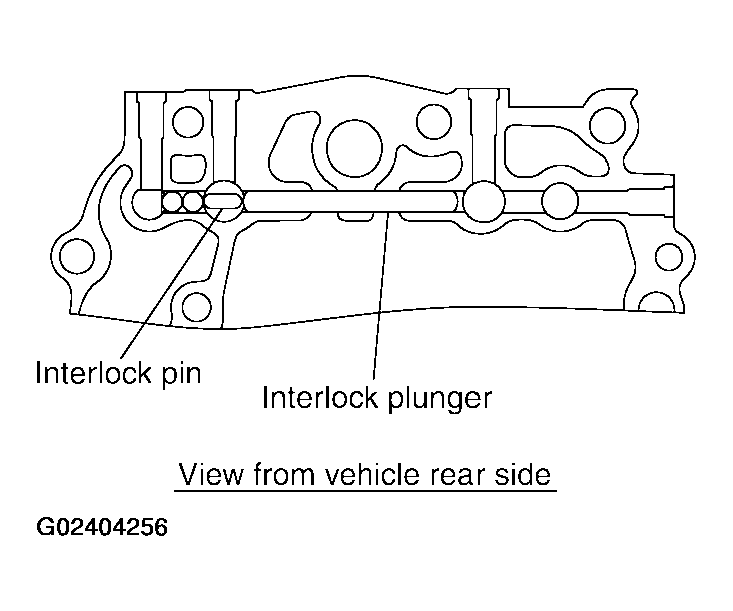

Remove interlock plunger and interlock pin from the adapter plate.

Fig 11: Removing Interlock Plunger & Interlock Pin From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

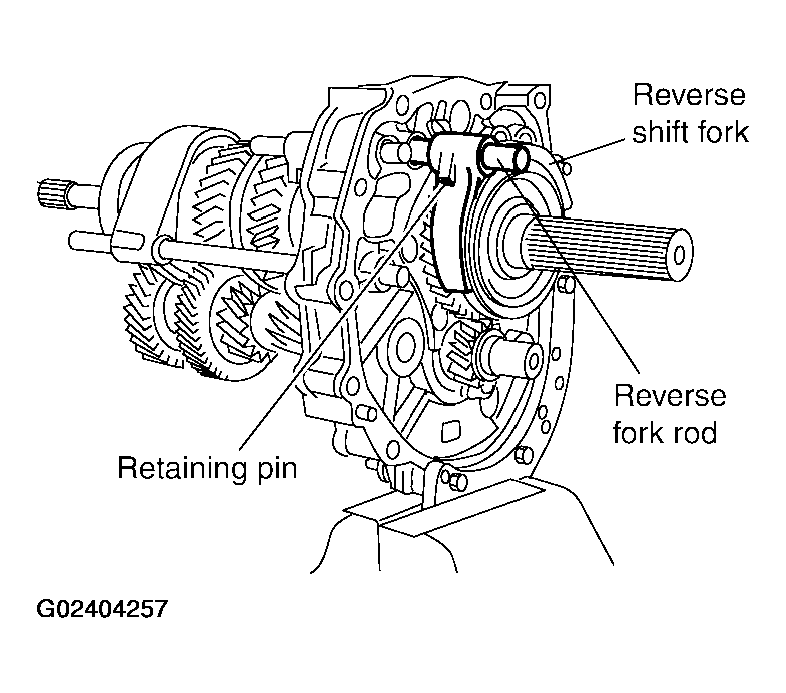

Using a pin punch [6 mm (0.24 in) dia.] to knock out retaining pin, and then remove reverse shift fork and reverse fork rod.

Fig 12: Removing Reverse Shift Fork & Reverse Fork Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

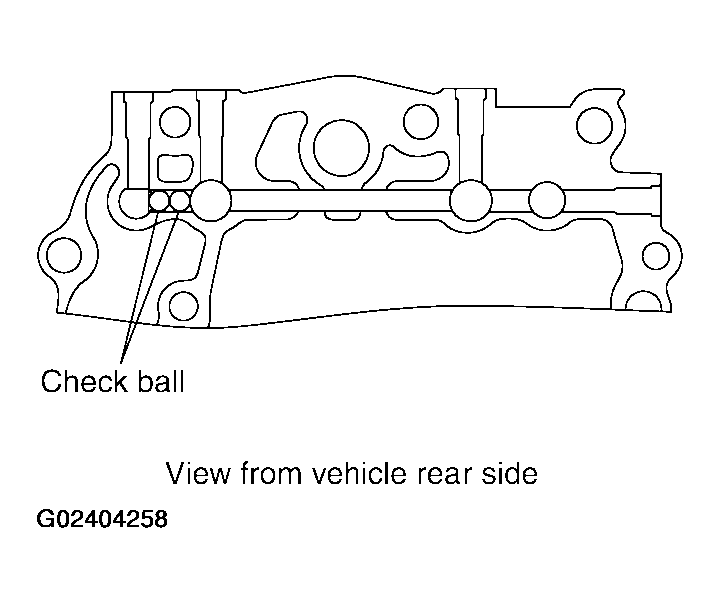

Remove check ball from the adapter plate.

Fig 13: Removing Check Ball From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

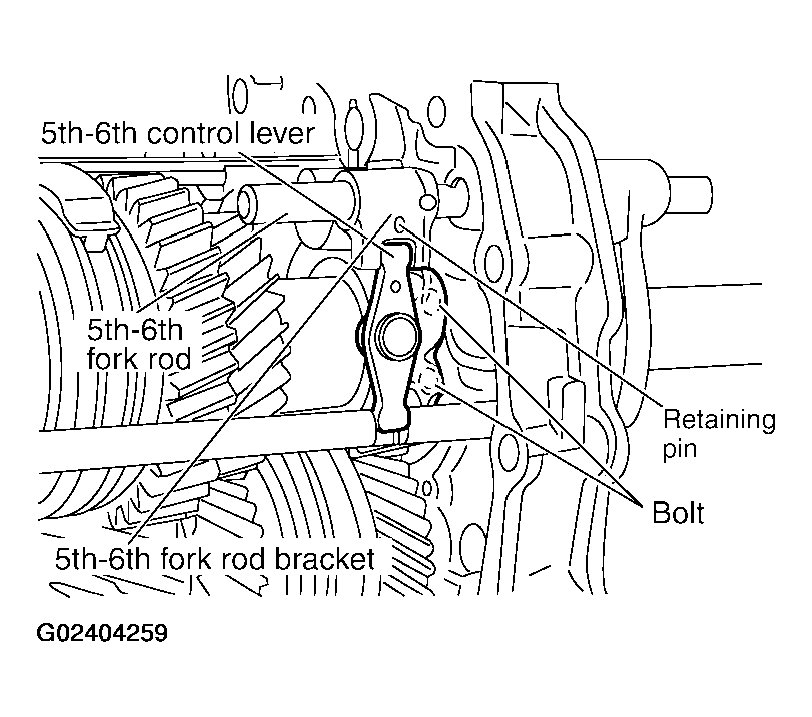

Remove 5th - 6th control lever mounting bolts and then remove 5th - 6th control lever from the adapter plate.

Fig 14: Removing 5th - 6th Control Lever From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

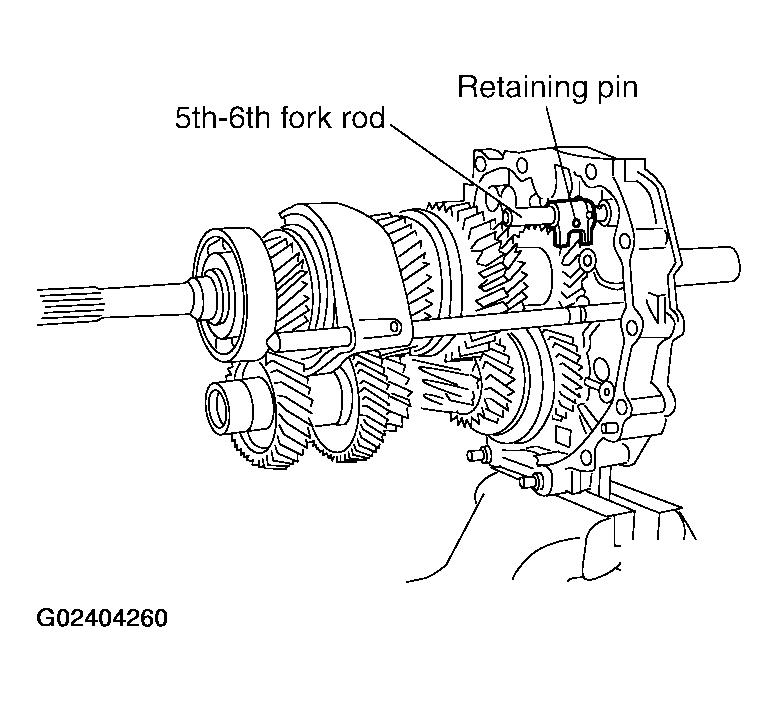

Using a pin punch [6 mm (0.24 in) dia.] to knock out retaining pin, and then remove 5th - 6th fork rod bracket and 5th - 6th fork rod.

Fig 15: Removing 5th - 6th Fork Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

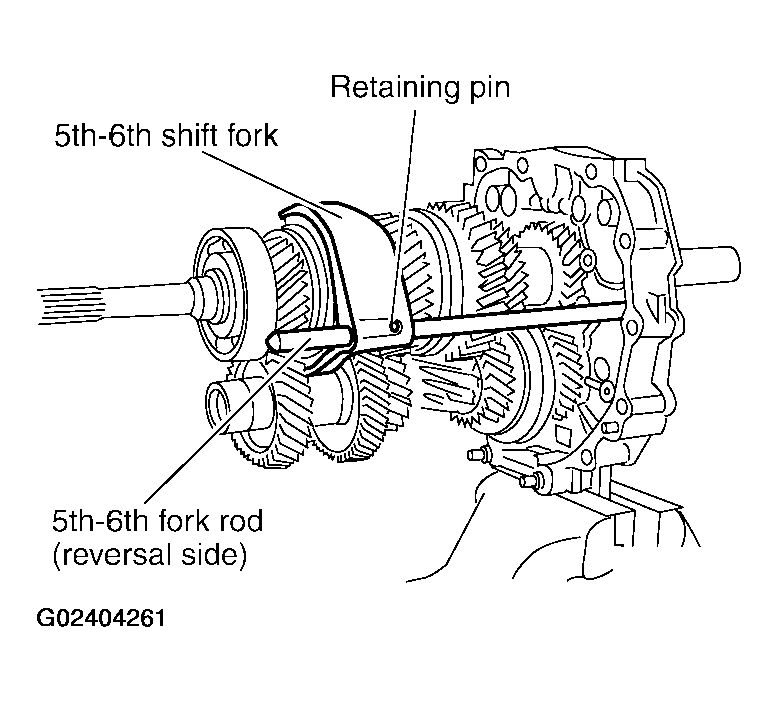

Using a pin punch [6 mm (0.24 in) dia.] to knock out retaining pin, and then remove 5th - 6th fork rod (reversal side) and 5th -6th shift fork.

Fig 16: Removing 5th - 6th Fork Rod (Reversal Side) And 5th -6th Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
