For Net Seat/Roadster

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver and/or passenger seat. Refer to "REMOVAL ".
Remove the seatback upper. Refer to "SEATBACK TRIM AND PAD (NET SEAT FOR ROADSTER) ".
Pull the seatback upper trim off. Refer to "SEATBACK TRIM AND PAD (NET SEAT FOR ROADSTER) ".
Remove the stay securing the inner cloth.
- Special nut : 7.35 N.m (0.75 kg-m, 65 in-lb)

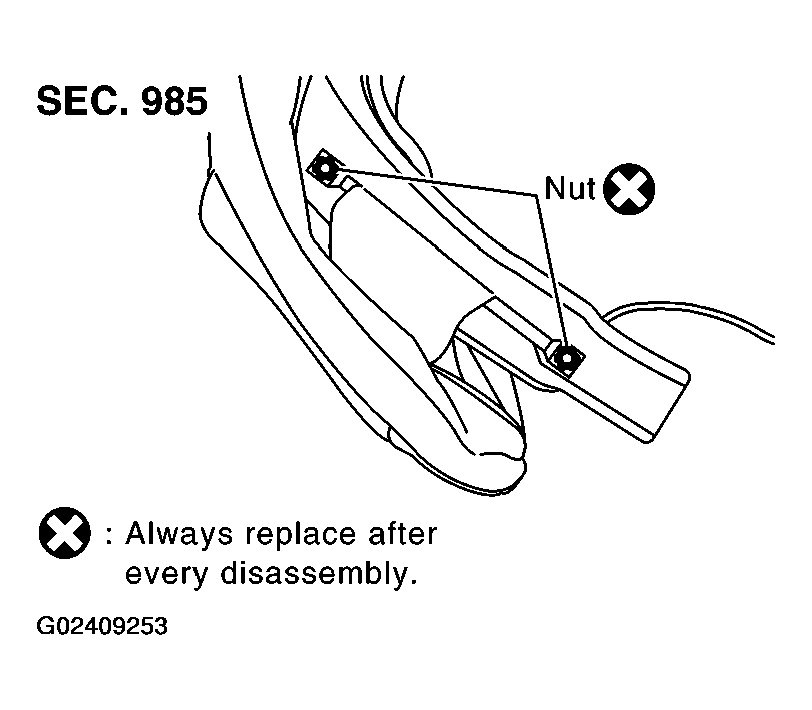

Fig 1: Removing Stay Securing Inner Cloth Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the front side air bag module.
- Special nut : 7.35 N.m (0.75 kg-m, 65 in-lb)

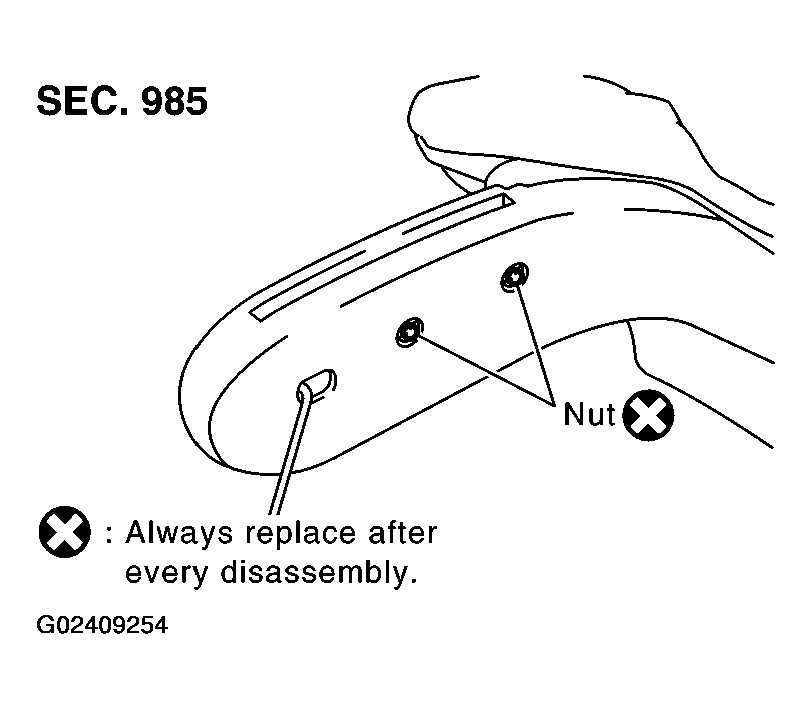

Fig 2: Removing Front Side Air Bag Module Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Always place the front side air bag module standing with the stud bolt side facing down.
Do not insert any foreign objects (screwdrivers) into front side air bag module.
Do not disassemble front side air bag module.

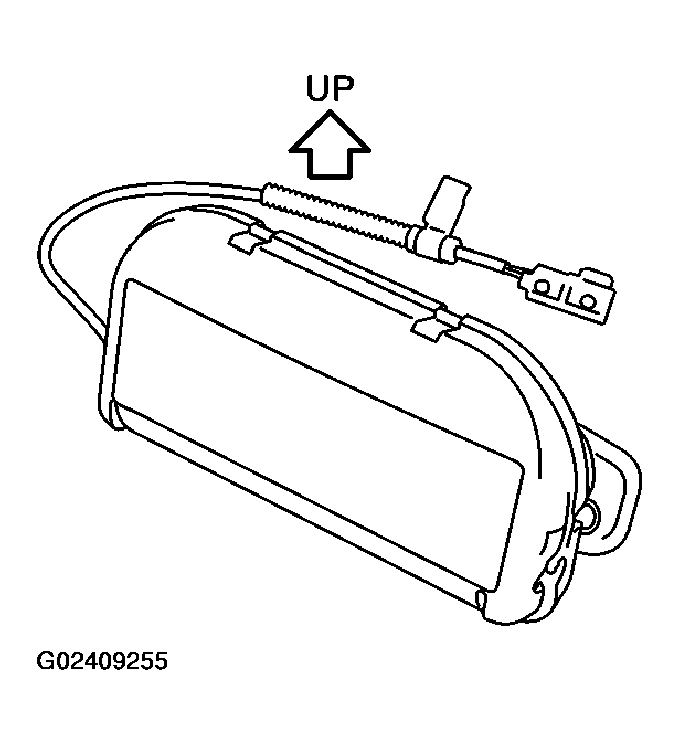

Fig 3: Front Side Air Bag Module Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Replace front seatback assembly (side air bag module) if it has been dropped or sustained an impact.
Do not expose front seatback assembly (side air bag module) to temperatures exceeding 90°C (194°F).
Do not allow oil, grease or water to come in contact with the front side air bag module.
After front side air bag module inflates, front seatback assembly must be replaced.

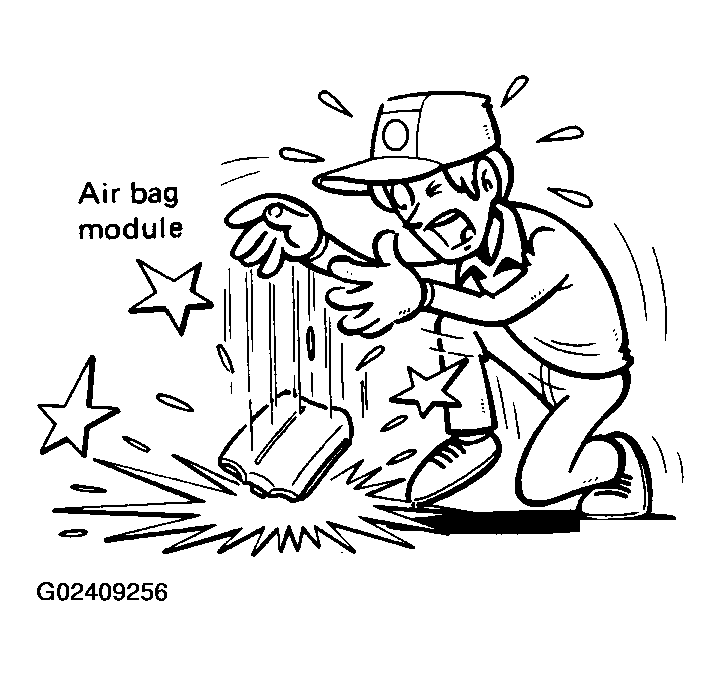

Fig 4: Replace Front Seatback Assembly (Side Air Bag Module) If It Has Been Dropped Or Sustained An Impact

Courtesy of NISSAN MOTOR CO., U.S.A.
